will thiscircuit work??

[electreekgeek]

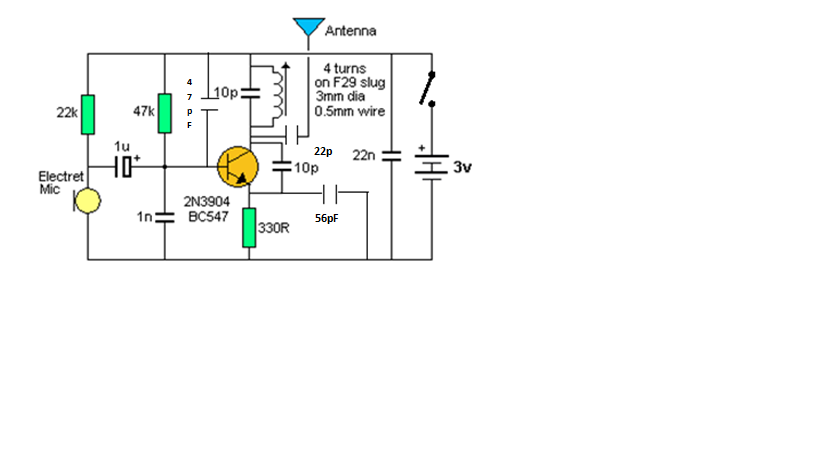

This is a circuit of an FM transmmitter.[attachment=2]

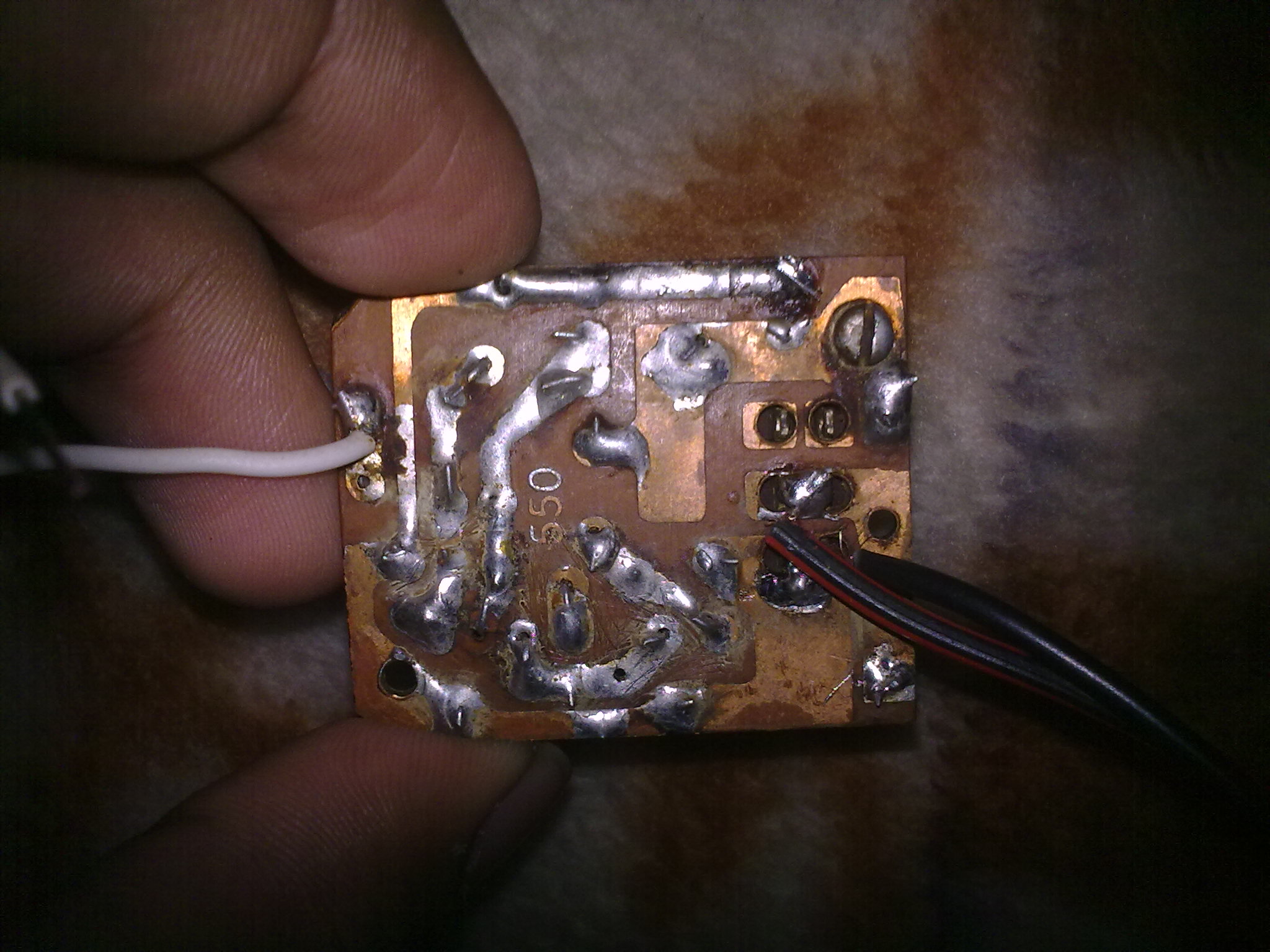

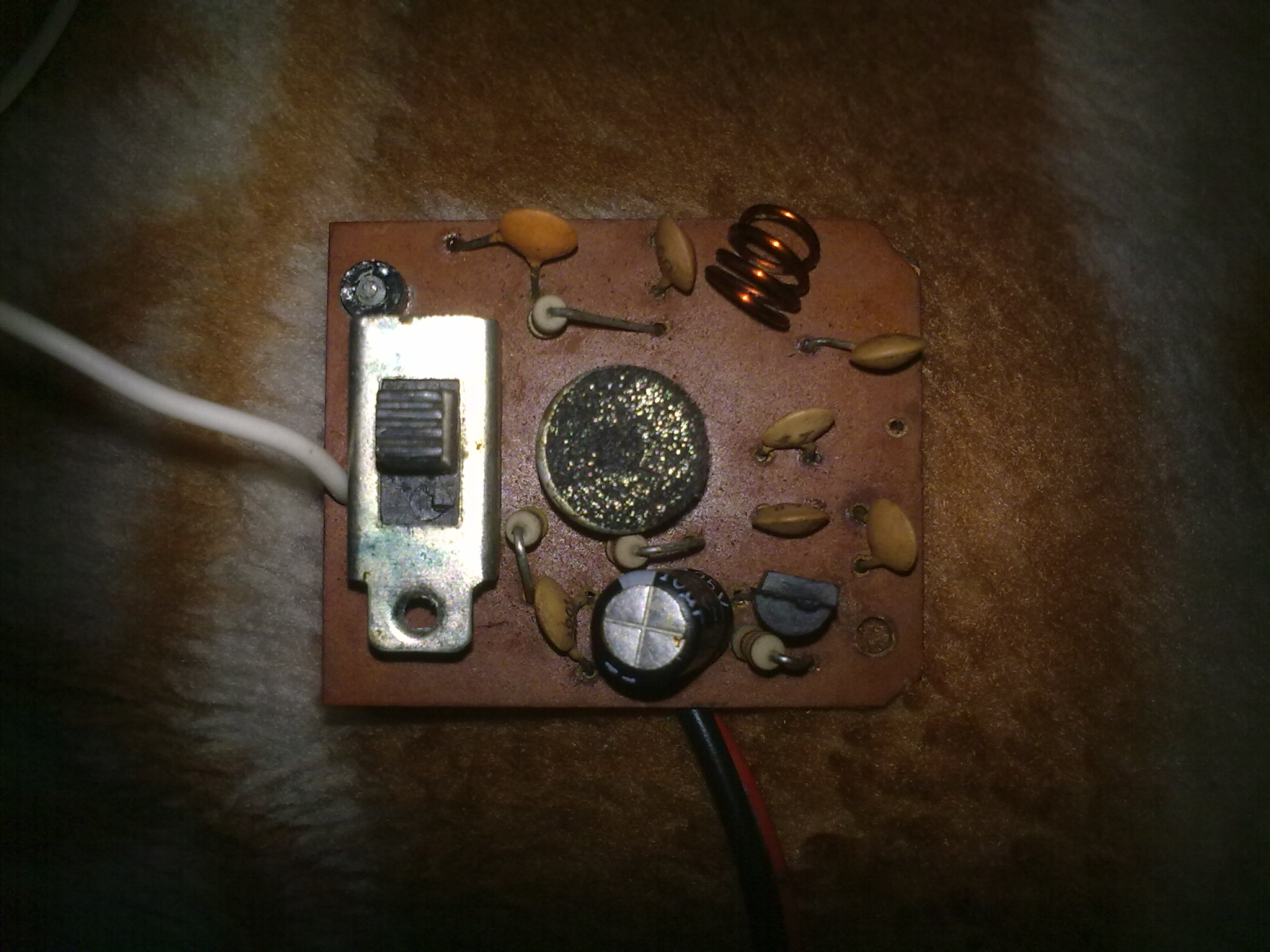

[/attachment]. will it work? i am not sure if i drawed it correct...nyways..i'v also uploaded ssome pics
[attachment=1]


[/attachment]
[attachment=0]


[/attachment]

and a vid (might help get an idea what the circuit must look like)

so plzz ppl help me out..thanks
