Need help with Wien-Bridge Oscilator

Postby purpleclover » Sun May 26, 2013 11:35 pm

Greetings everyone, i have a assigment and i need to creat a wien bridge oscilator that uses potentiometers so the out frecv can be modified between (10, 14 )Khz...and the out voltage between (6,9) V ... i allready made a sketch but i just cant figure out how to do this...every time i try to make the amplitude bigger the frecvency changes and the other way around. Please, can someone help me ?
Attachments

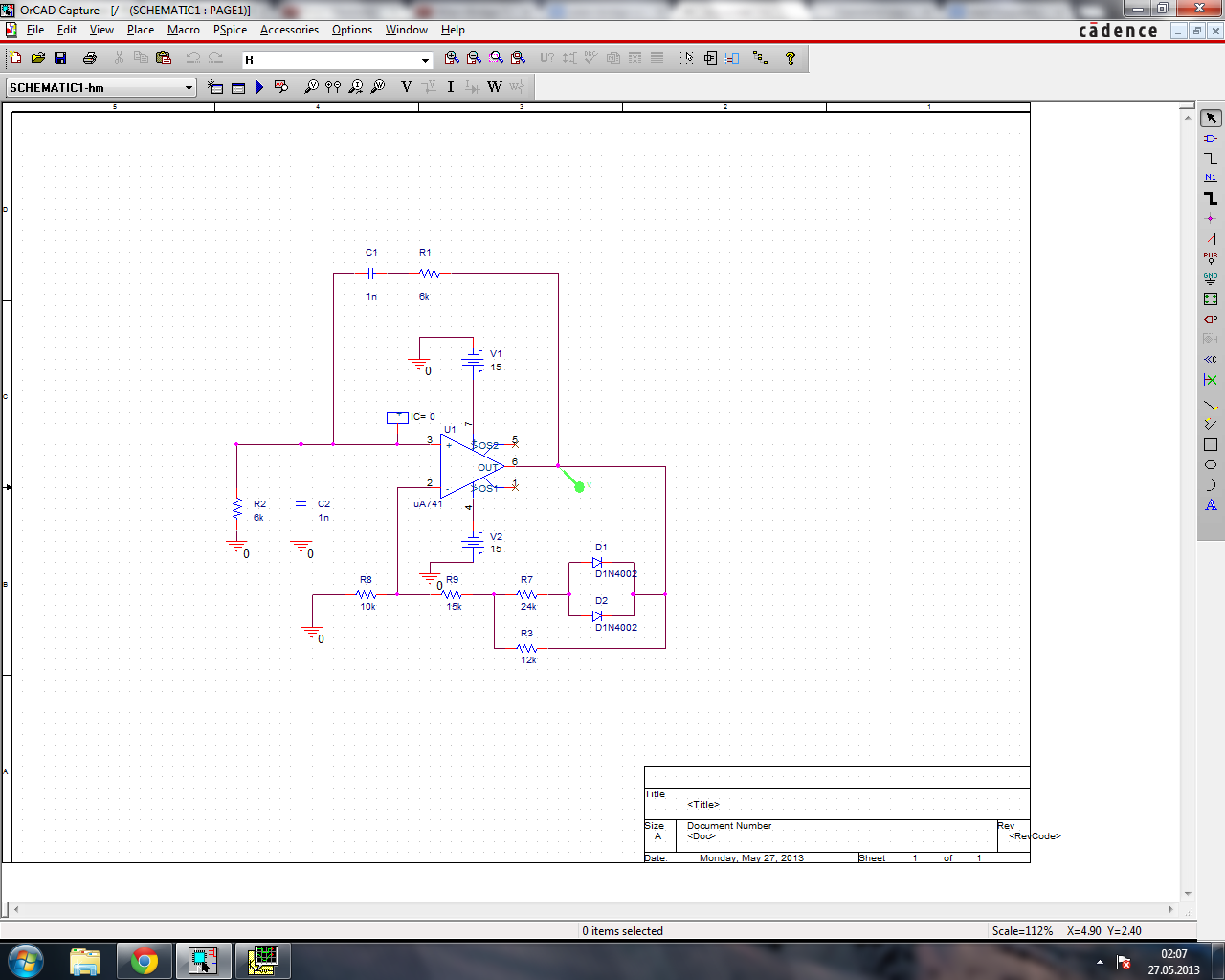

14k HZ---8V.png
14k HZ---8V.png (172.03 KiB) Viewed 5578 times
purpleclover

Posts: 1
Joined: Sun May 26, 2013 11:34 pm
Top
