help on amplifier HW

Postby mascabii » Tue Dec 03, 2013 9:35 pm

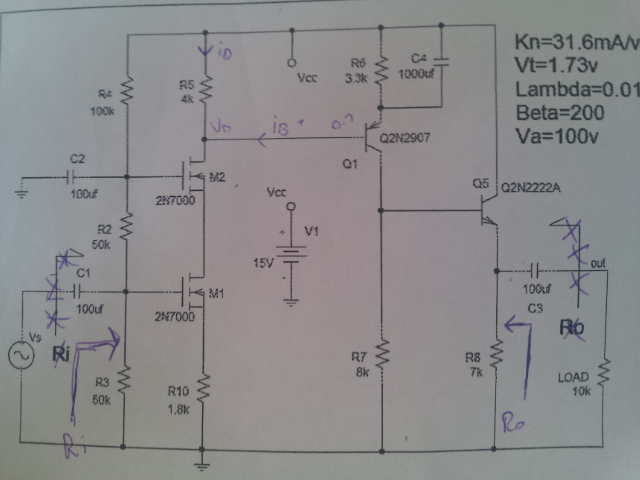

Im trying to find Av=Vout/Vs but I do not know how to start. I have done the DC analysis but thats as far as I get
Attachments
mascabii

Posts: 1
Joined: Tue Dec 03, 2013 9:20 pm
