Postby Zaid » Tue Jan 13, 2015 1:27 pm

i am looking for a circuit to measure difference in temperature (+ or -) on the human body.
the distance is between two thermal sensors is about 5 cm, and the reading range is between 0 -50 Celsius.
i have a circuit but i need to make it more sensible. i was thinking of adding differential amplifier.
any one has got an idea of how to improve that
many thank in advanced
Attachments

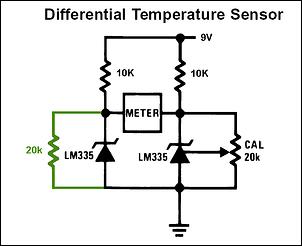

circuit 002.jpg
circuit 002.jpg (10.52 KiB) Viewed 5971 times
