Stereo Amplifier

Postby flymzz » Wed May 11, 2011 10:35 pm

Well my first post and wanted to pick some brains on a project.

I am building a portable iPod dock, I found a circuit design on-line and wandering a few things about it, so some help with the following would be great. (I just want to say that i have basic knowledge on electronics but enough to successfully assemble a circuit).

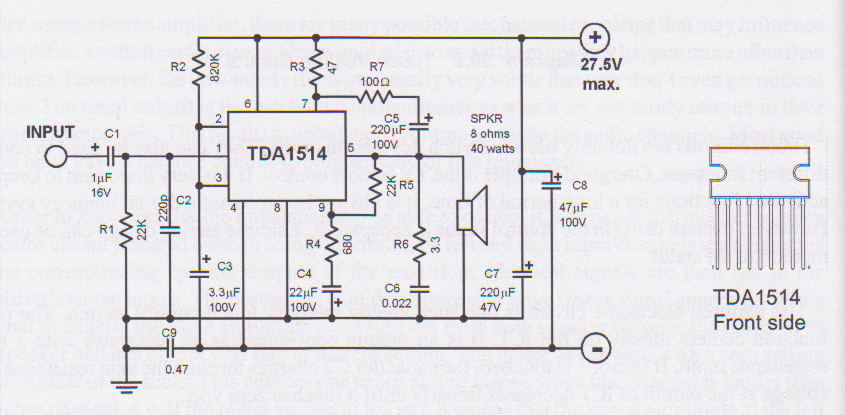

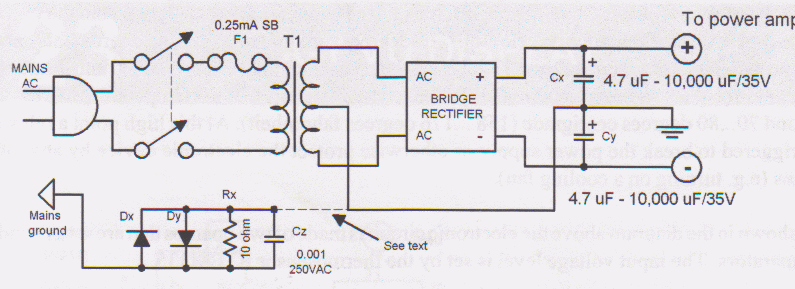

I have attached a schematic of the amplifier circuit and its power supply circuit, and need to know the following;

1: where can I fit in a volume control switch as I can't seem to see it on the circuit.

2: I wish to attach a Sealed lead acid battery to the power supply as the main source, and need to know if any amendments should be made to the circuit to accommodate this.
Attachments
Power Supply
Stereo Amplifier
flymzz

Posts: 1
Joined: Wed May 11, 2011 9:32 pm
