led flash/chase controller

[sheldons]

heres my latest controller schematics...the front end is based on a standard 4017 counter circuit ,this just shows the output stage and control logic...reposted as for some reason i cant view the post or attachments iv posted......

[attachment=3]

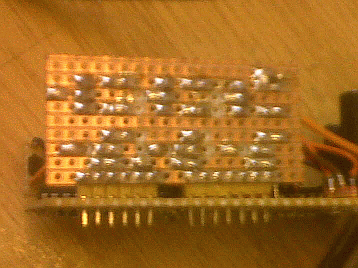

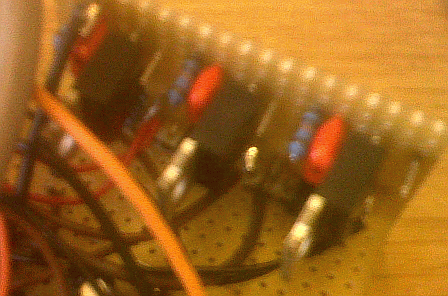

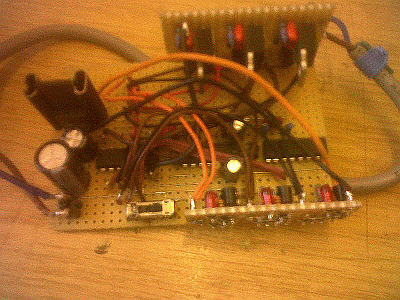

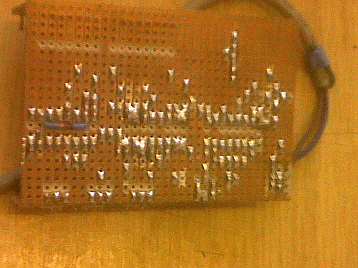

component side.gif (99.99 KiB) Viewed 4744 times
