Wireless outdoor speaker Help

Discuss about electronic circuits here. Request help for circuits that you couldn't find anywhere else, how a circuit works etc. Discuss anything related to electronic circuits.

Moderator: pebe

Post a reply

Wireless outdoor speaker Help

Postby Shad0w » Wed Oct 02, 2013 3:11 pm

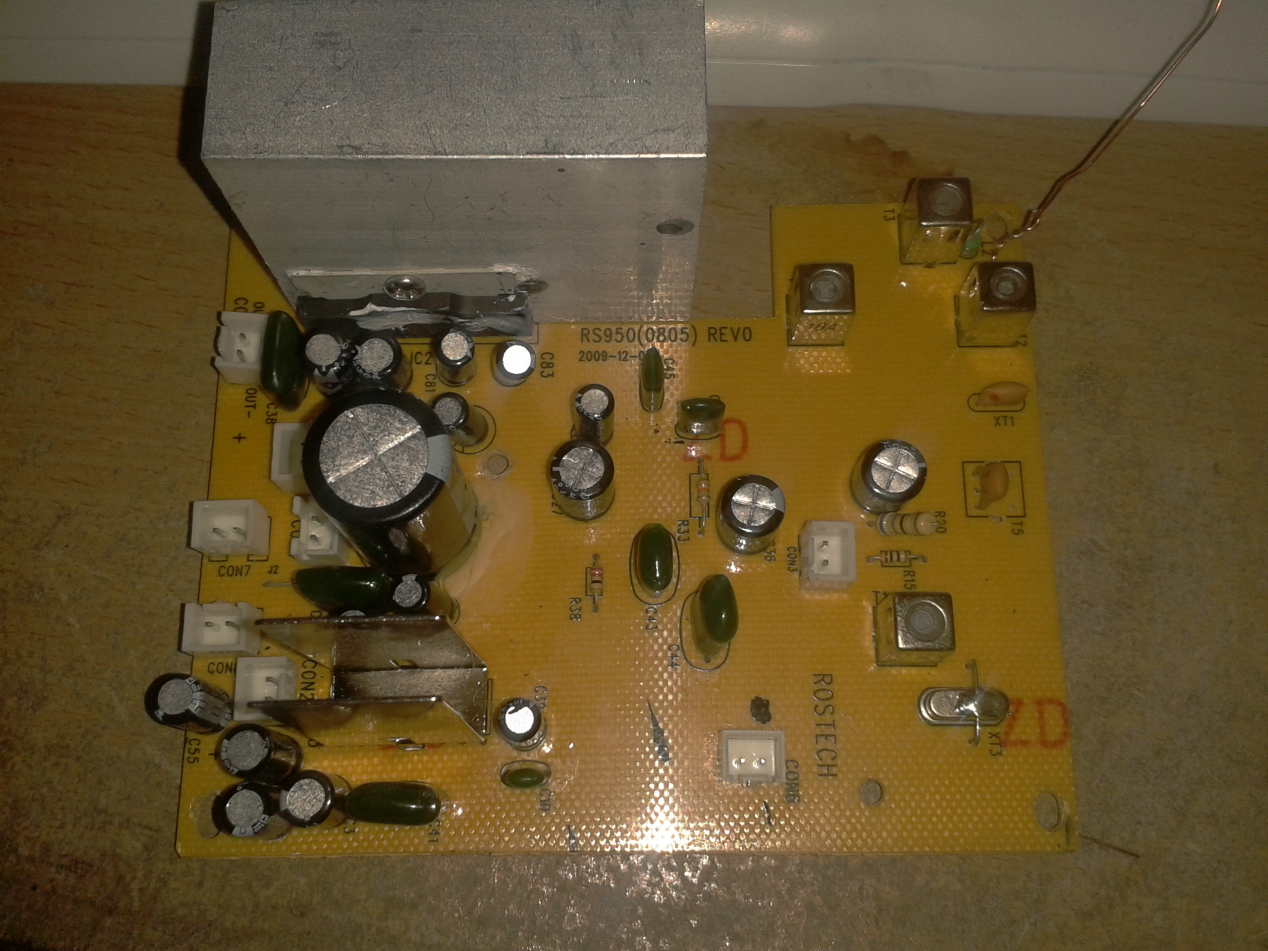

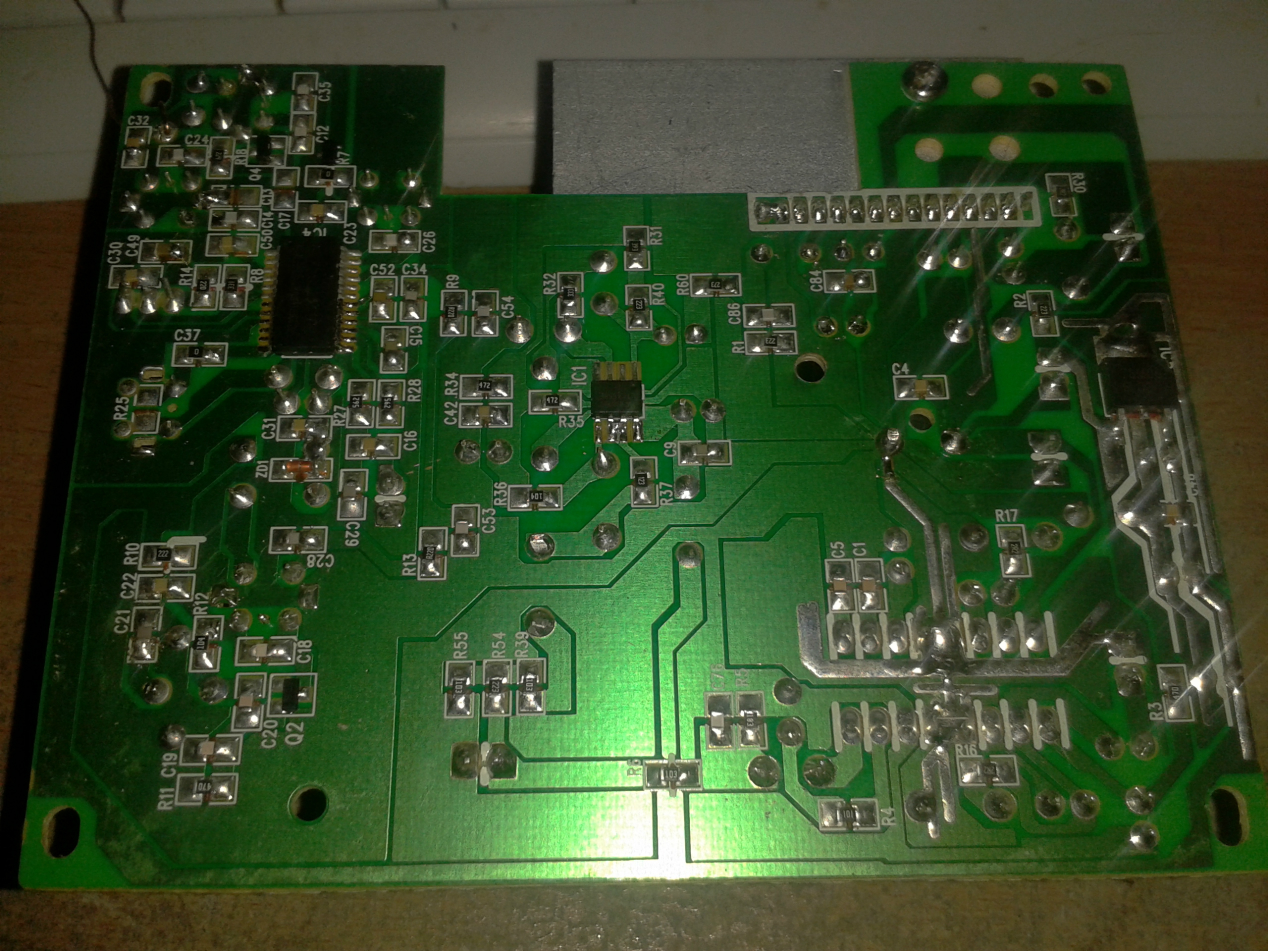

Ok so a few years back i got an ONIX Outdoor speaker and i pulled it apart like 2 hours ago and now ive forgoten what plug goes were and well yea. ive uploaded 2 images showing the board. Power input is the connection right of CON7.





[attachment=0]
Back
[/attachment][attachment=1]
Top
[/attachment]
Shad0w

Posts: 1
Joined: Wed Oct 02, 2013 2:04 pm
