TPS55065-SO Regulator does not start with less than 5.03V

Discuss about electronic circuits here. Request help for circuits that you couldn't find anywhere else, how a circuit works etc. Discuss anything related to electronic circuits.

Moderator: pebe

TPS55065-SO Regulator does not start with less than 5.03V

Postby screem_3 » Fri Oct 11, 2013 8:30 am

Hello

I am new to the electronic world, and this is my first post here.

I have a power regulated circuit (TPS55065-SO Switch mode Regulator 1.5~40V input.
it wont start until the Voltage input become 5.03V, but the person who made it say it should start with minimum Voltage of 3.6V

i have changed the inductor (L1) to different values (22UF, 47uf & 100uf) and it did not work. i mean we still need to input 5.03V to power it on.

Also if we power the circuit with 5.03V it will still be on even if we drop the input power to 2V

We would really appreciate any suggestion and help.

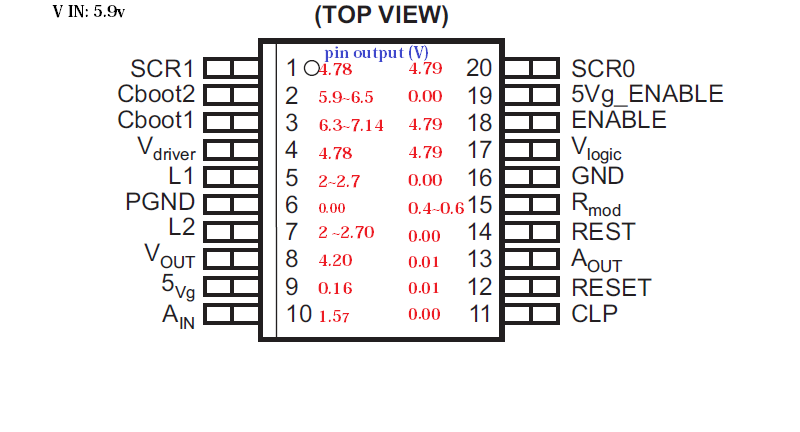

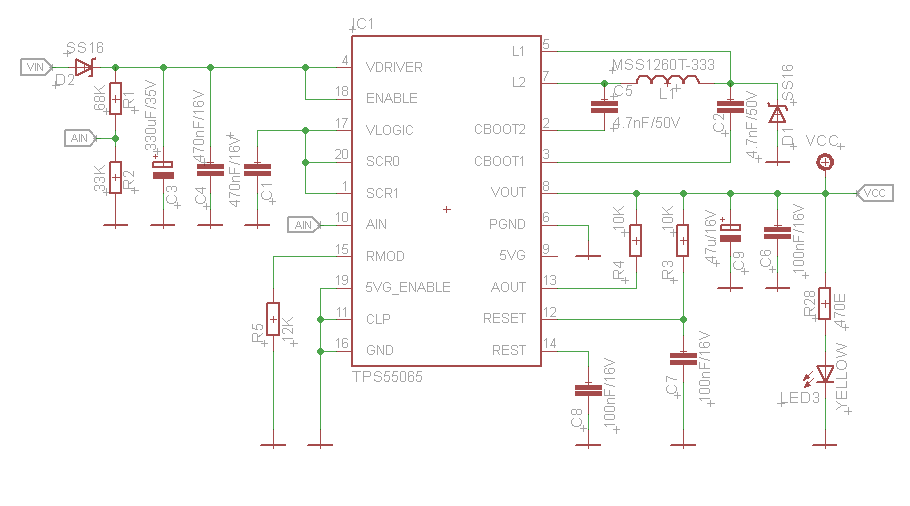

Here is the schematic and the other photo show the output voltage of the regulator on the actual board.

Thanks a lot
Attachments
Regulator reading.png
Regulator reading.png (56.61 KiB) Viewed 5361 times
Power SCH.png
Power SCH.png (23.61 KiB) Viewed 5361 times
