What diode (or resistor) is this!?!?

Postby Gribbie » Wed Jan 29, 2014 8:31 pm

So i have a Korg Kaoss Pad 3 FX processor that i took apart due to a malfunction in one of the buttons recently(A membrane button to be specific). I noticed that on the backside of the motherboard a diode was missing. The problem is i cannot for the life of me figure out how to identify this one. Its got two bands, the first yellow followed by a silver..that is, if it even is a diode. If anyone can point me into finding out what this is so i can order a new one that would be phenomonal.
Attachments
The part not working is the #1 button across the top. It is just a setting button.
photo 1.JPG

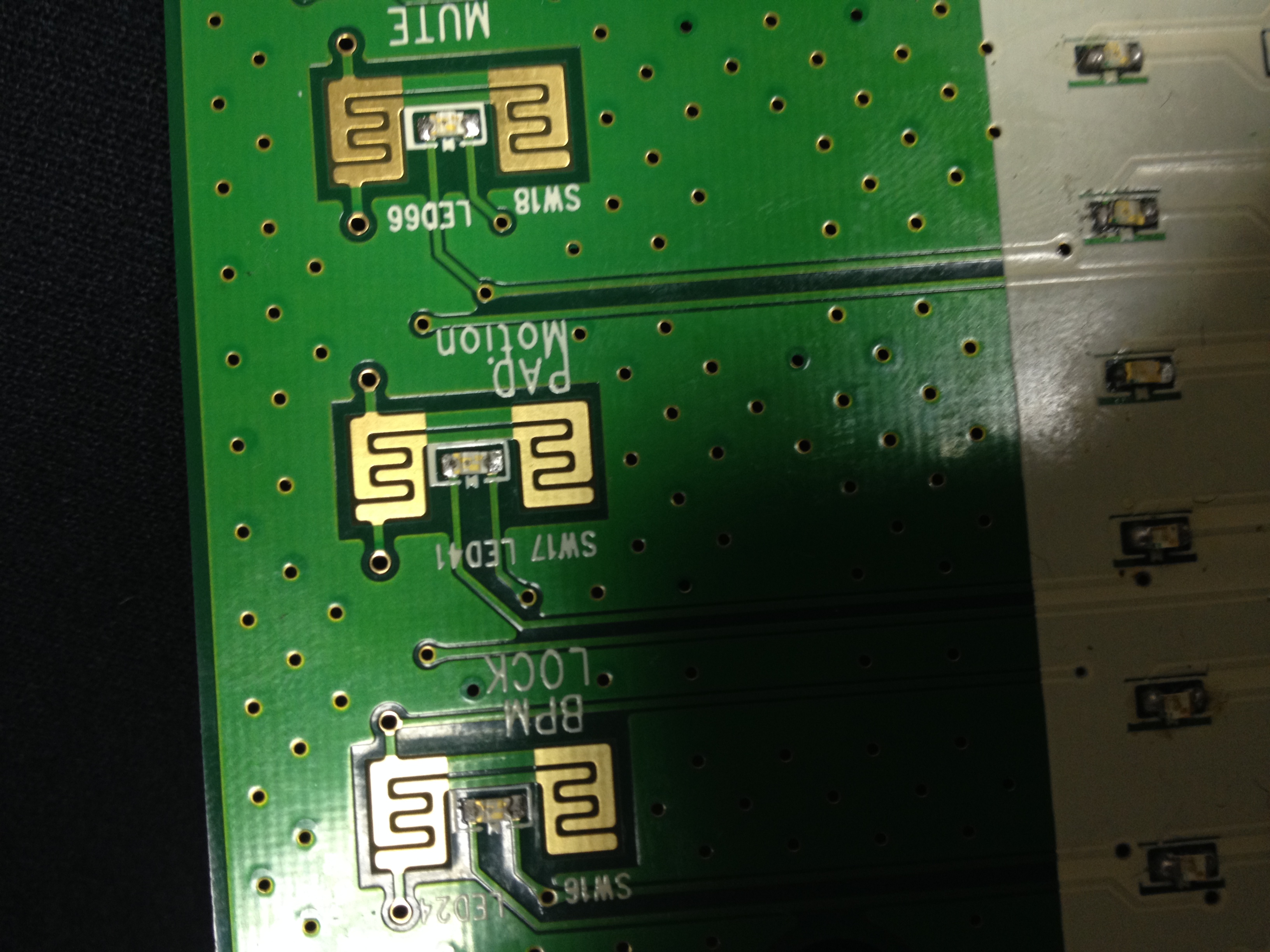

These sensors are on the otherside of the diodes, thats where the membrane button pushes down and activates.
photo 1.JPG (1.73 MiB) Viewed 7775 times
photo 2.PNG

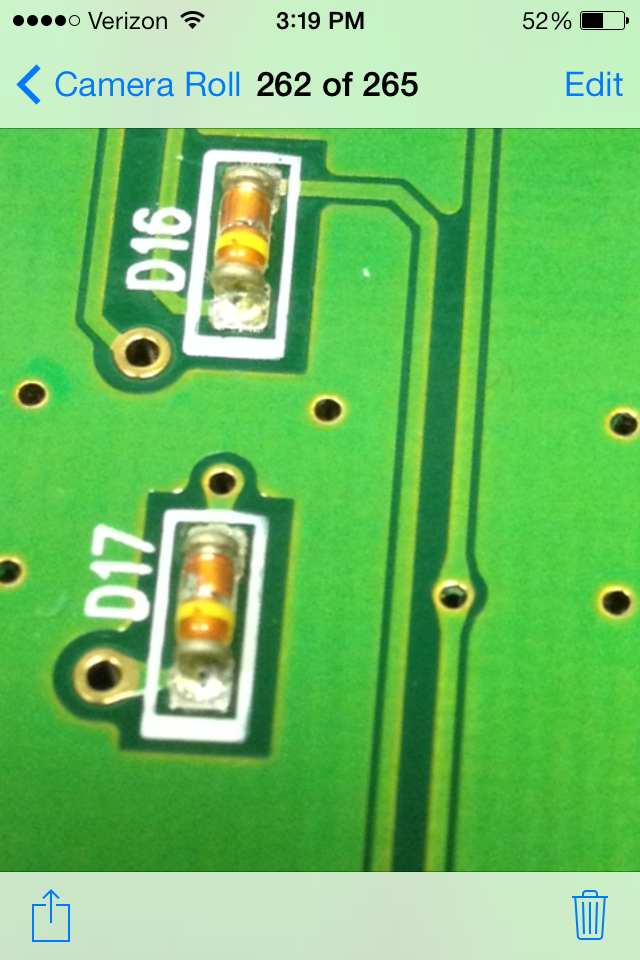

This is what i believe is the diodes, the part missing is not pictured here
photo 2.PNG (949 KiB) Viewed 7775 times
Gribbie

Posts: 1
Joined: Wed Jan 29, 2014 8:20 pm

Re: What diode (or resistor) is this!?!?

Postby hapticz » Thu Mar 20, 2014 2:40 am

looks like a standard 1n4148 type, used to decode keyboard logic. the stripe is the cathode end.
hapticz

Posts: 3
Joined: Mon Mar 18, 2013 6:19 am
