🔥 Milbank Series 9500L 200A 600V Ringless Lever Bypass Meter Socket 4/5 Jaw NOS:
$389.95

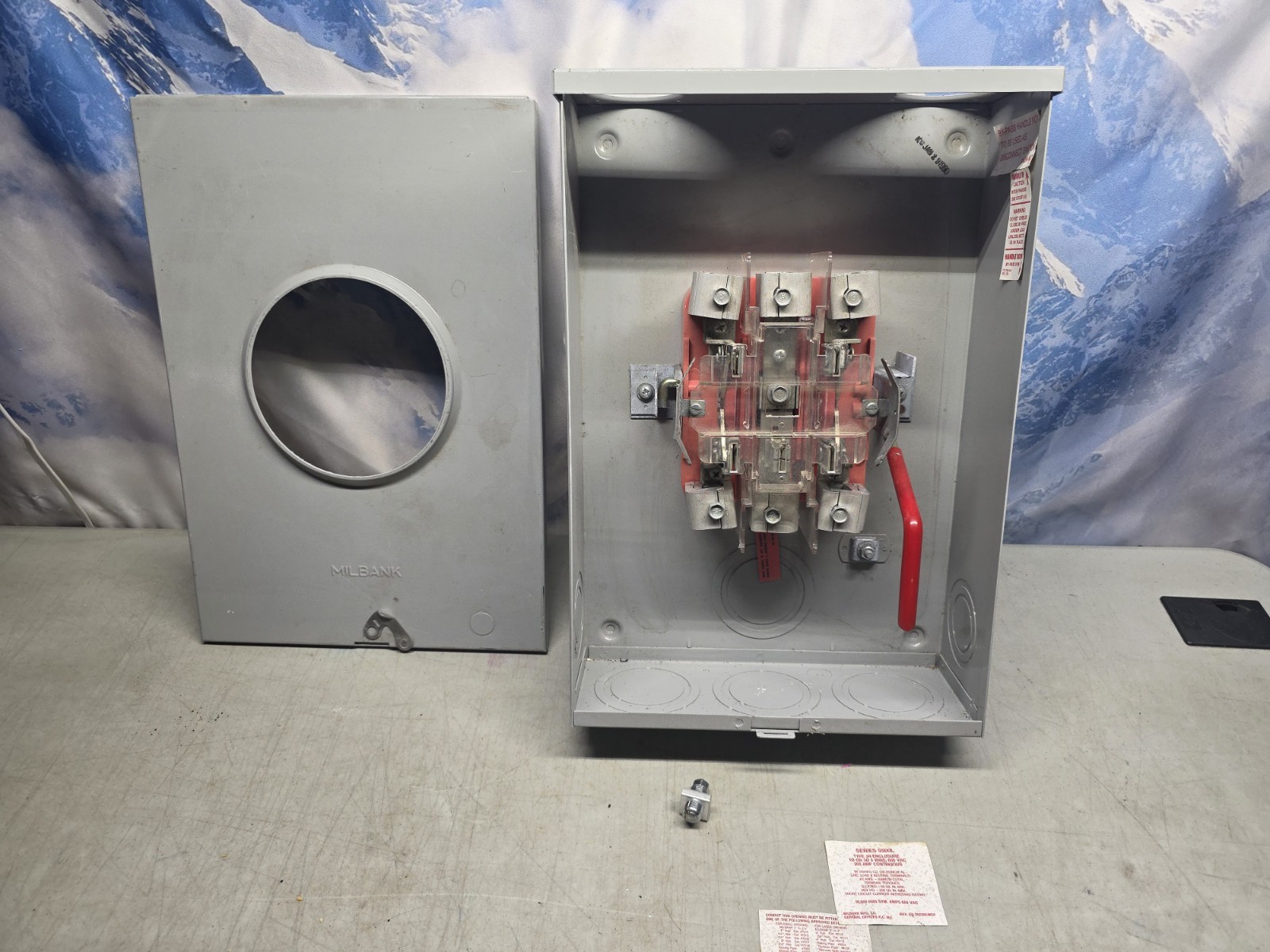

Milbank Series 9500L 200 Amp 600 VAC Heavy-Duty Lever Bypass Ringless Meter Socket (NOS)

Up for sale is a genuine New Old Stock (NOS) Milbank Series 9500L heavy-duty 200-Amp commercial/residential meter socket enclosure. This unit was manufactured in January 1990 and has been sitting in dry storage—it has never been mounted or wired.

Condition & Included Items:

* Never Installed: All bottom, back, and side concentric knockouts are 100% factory intact. All aluminum lay-in lugs, clear lexan arc shields, and the red bypass lever mechanism are clean and unused.

* Includes 5th Jaw Terminal: Configured as a 4-jaw block out of the box, and includes the loose screw-in 5th jaw terminal (pictured) so it can be set up for 4-jaw or 5-jaw applications.

* Original Spec Labels Included: The two interior paper specification/hub chart decals (702380-MO1 & 701847-MO) dried out from age and detached from the inside wall; both original labels are included and will be placed inside a zip-top bag inside the enclosure.

* Cosmetics: Shows normal minor shelf wear, dust, and light surface marks from storage without a factory cardboard box.

Technical Specifications:

* Brand: Milbank Mfg. Co. (Kansas City, MO)

* Series / Part Number: Series 9500L (Rev. B 702380-MO1)

* Dimensions: 19" H x 13" W x 5" D

* Rating: 200 Amp Continuous | 600 VAC Maximum

* Configuration: 1-Phase or 3-Phase, 3-Wire (with 3/0 AWG Cu or 250 MCM Al)

* Jaws: 4-Jaw installed + Loose 5th-Jaw accessory included

* Short Circuit Current Withstand Rating: 10,000 RMS Sym. Amps @ 600 VAC

* Line, Load & Neutral Terminals: Heavy-duty lay-in lugs accepting #2 AWG – 350 MCM Cu/Al

* Bypass Type: Heavy-Duty Lever Bypass (Handle Up = Meter Bypassed / Handle Down = Bypass Open)

* Enclosure: NEMA Type 3R Outdoor Weatherproof Galvanized Steel with Gray Powder-Coat Finish

* Cover Type: Ringless with bottom locking latch/seal tab

* Top Conduit Hub Opening: Large opening (fits Milbank 3" to 4" hubs: Cat #8110, #8111, #8112, Closing Plate #9064, or Reducer Plate #8324 for 1"–2.5" hubs)

Note: Please verify with your local utility company or electrical inspector to ensure this specific model meets your local utility acceptance requirements prior to purchase/installation.

Ships fast, securely padded, and boxed with tracking!
