**NEW** Eaton BR2020 20 Amp 120 Volt Twin Tandem Circuit Breaker For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

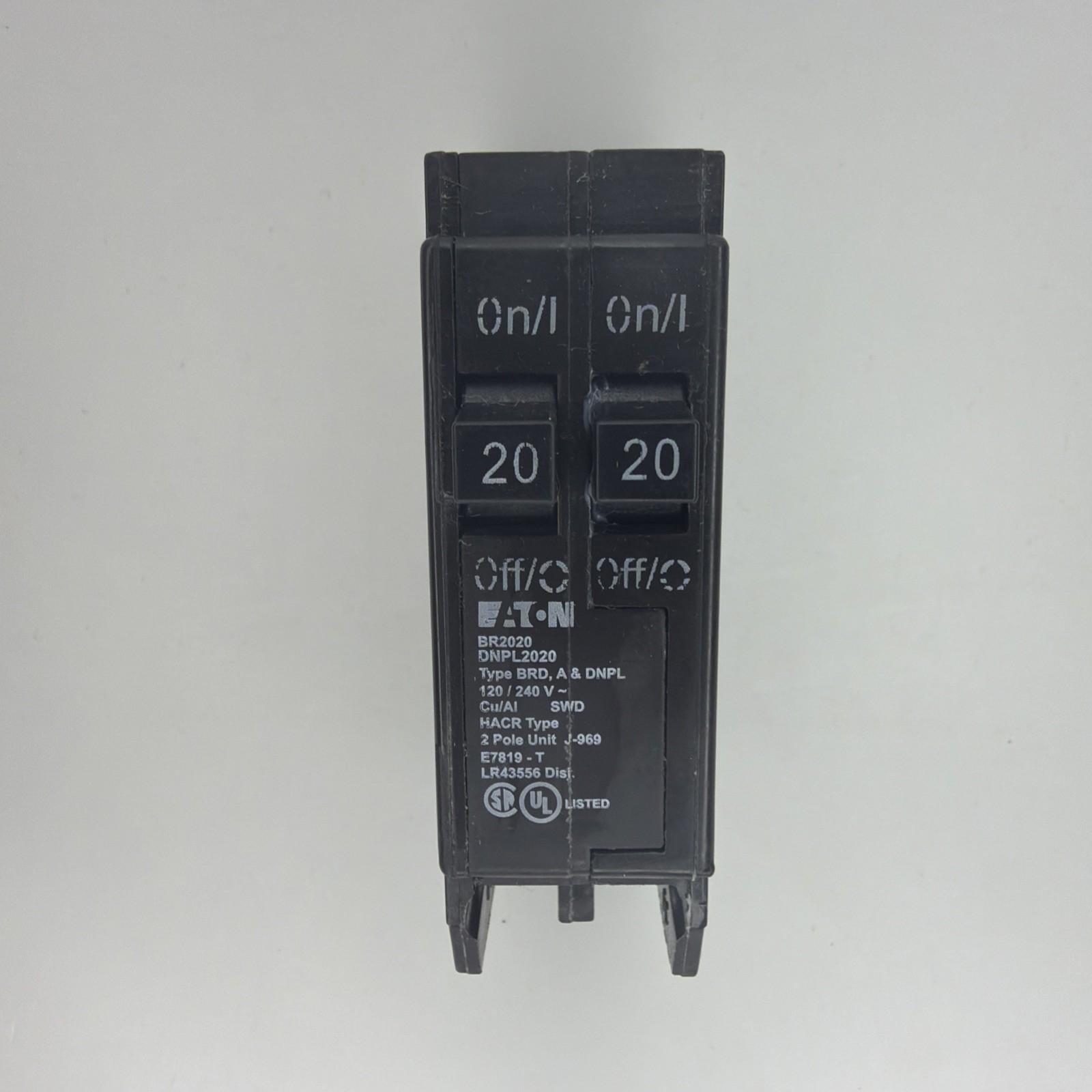

**NEW** Eaton BR2020 20 Amp 120 Volt Twin Tandem Circuit Breaker:
$18.79

**Brand New** never used

Eaton BR2020

Eaton 20/20 Amp Tandem Circuit Breaker

- 20 amp

- 120 volt

- Single pole

This Eaton breaker provides two independent 20A circuits while occupying just one standard breaker space.Great for maximizing space in a full load center or electrical panel. Turn two spaces occupied by typical single pole breakers into one!

---

---

---

NEW Eaton PDG2XST130ACDCS PDG2 Shunt Trip, ST 110-130VAC/125VDC, Pigtail, 29-in

$255.00

---

New Eaton BJ2200 200 Amp Double Pole Circuit Breaker 120/240 V

$145.00

---

NEW Eaton MBE4040PV200BTS - Solar Rated MB 40/40 200A MCB 200A

$399.99

---
