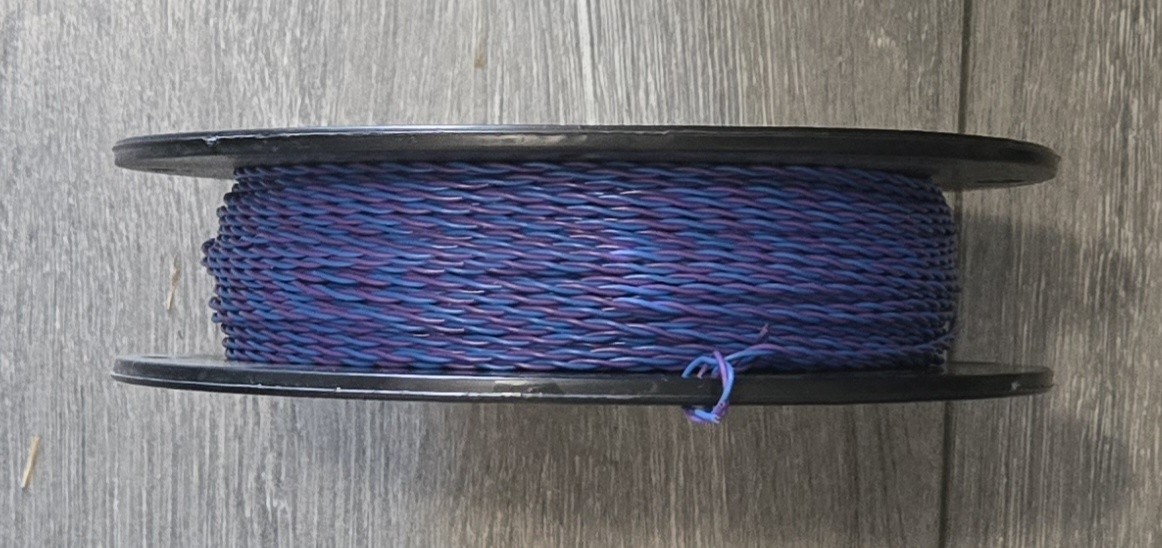

*NEW* GENERAL CABLE 2113071 - Violet+Blue 1PR 24 AWG Cross Connect Wire 400FT:
$30.00

The product is a *NEW* General Cable 2113071, a violet and blue 1PR 24 AWG cross connect wire that is 400 feet long. It features a braided wire style and a wire gauge of 24 AWG (0.51-0.5 mm). This wire is perfect for electrical equipment and supplies in a variety of industrial and business settings. With its durable construction and vibrant colors, this cross connect wire is designed to provide reliable and efficient connections for various electrical applications.

---

---

---

NEW GENERAL SIGNAL HEVI-DUTY E550 .550 SBE INDUSTRIAL CONTROL TRANSFORMER

$150.00

---

NEW General Electric P9PDNV0 Lamp Holder GE P9PDNVO Red

$19.33

---

New General Electric 9T58K0071 .75kVA Transformer 1PH 575V 50/60Hz

$300.00

---
