(Pack of 20 Pieces) 10A10 Rectifier Diode 10A 1000V R-6 Axial 10 Amp 1000 Vol. For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

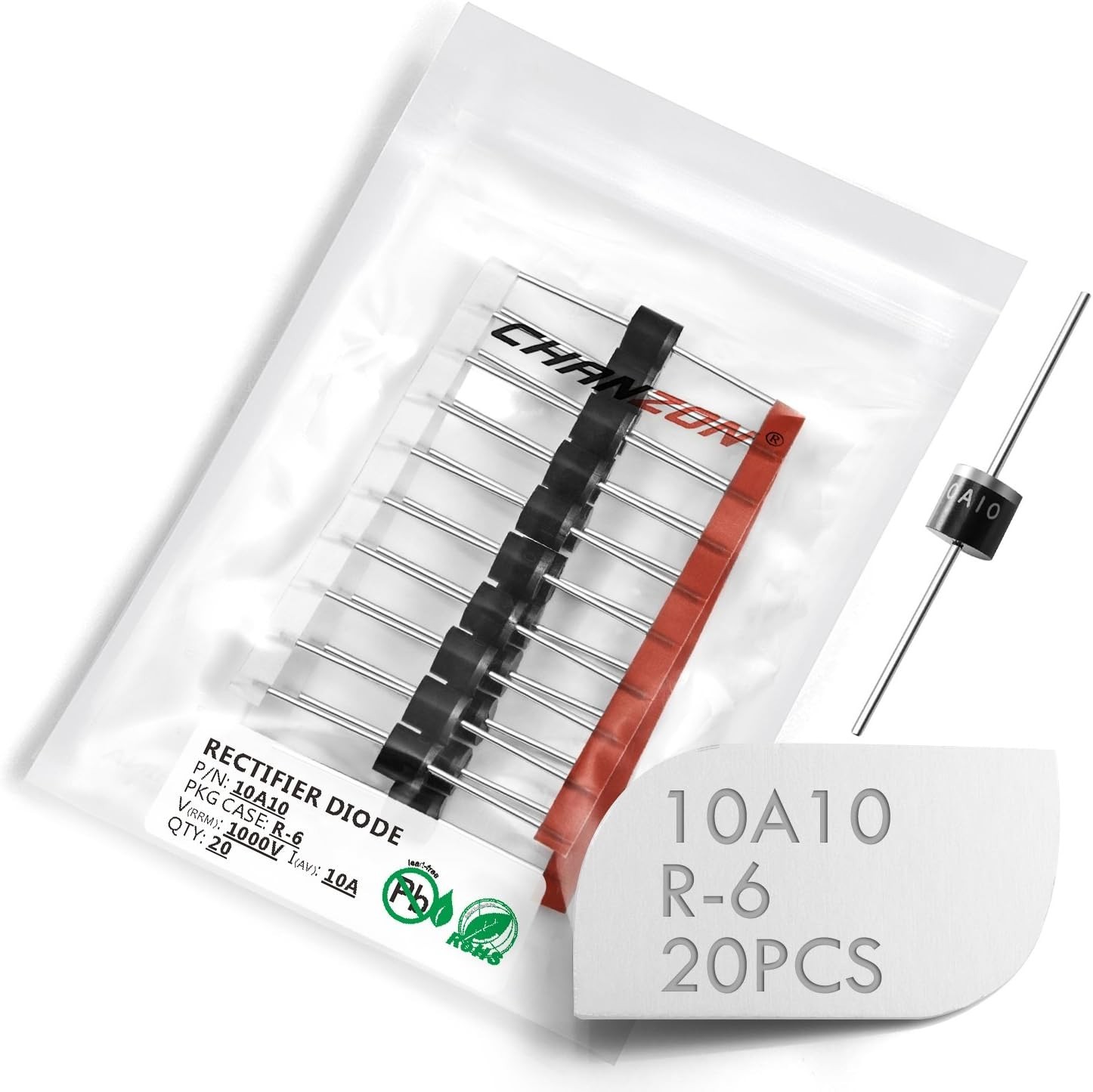

(Pack of 20 Pieces) 10A10 Rectifier Diode 10A 1000V R-6 Axial 10 Amp 1000 Vol.:
$12.97

• Part Number: 10A10 / Forward Current : 10 A / Maxixum Repetitive Peak Reverse Voltage : 1000 V
• Lead-Free / RoHS Compliant Electronics Component / Molded Plastic Case / Plated Axial Leads / Through Hole
• Low Reverse Leakage / High Forward Surge Current Capability / High Temperature Soldering per MIL-STD-750
• See Picture 2-7 for Specifications Datasheet
• Pack in a ESD Bag with Main Specs Label, for Long Time Protection and Indetification.

---

---

---
