🔥SaleUpTo 70%🔥 Keysight E3632A 120W Power Supply, 15V, 7A or 30V, 4A For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

🔥SaleUpTo 70%🔥 Keysight E3632A 120W Power Supply, 15V, 7A or 30V, 4A:
$973.99

• Maximum current per output

  7 A

• Maximum power

  120 W

• Maximum voltage per output

  30 V

• Number of outputs

  1

• Up / down programming settling time

  50 ms

• Adjustable slew rate

  No

• Data logger

  No

• LIST mode

  No

• 4-wire remote sense

  No

• Arbitrary waveform generation

• Range 1: 0 to 15 V, 7 A
• Range 2: 0 to 30 V, 4 A

Programming accuracy at 25°C ±5°C

• Voltage: 0.05% + 10 mV
• Current: 0.2% +10 mA

Ripple & noise (20 Hz to 20 MHz)

• Normal-mode voltage: <350 µVrms/2 mVpp
• Normal-mode current: <2 mA rms

Readback accuracy at 25°C ±5°C

• Voltage: 0.05% + 5 mV
• Current: 0.15% + 5 mA

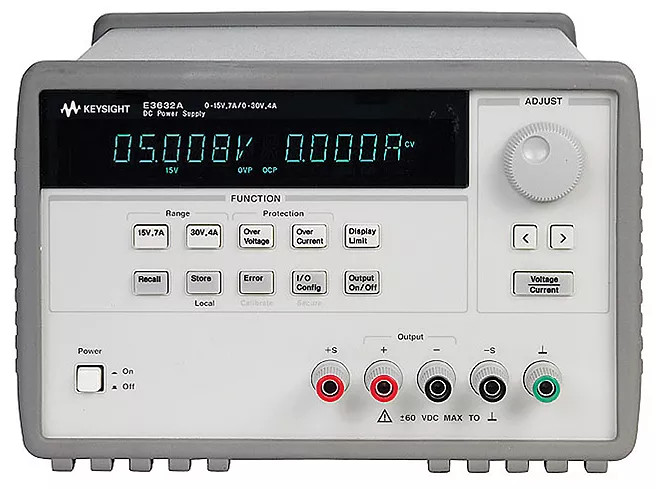

The single output, 120 W, GPIB, E3632A provides dual range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and is a programmable power supply with GPIB and RS232 interface.

---

---

---
