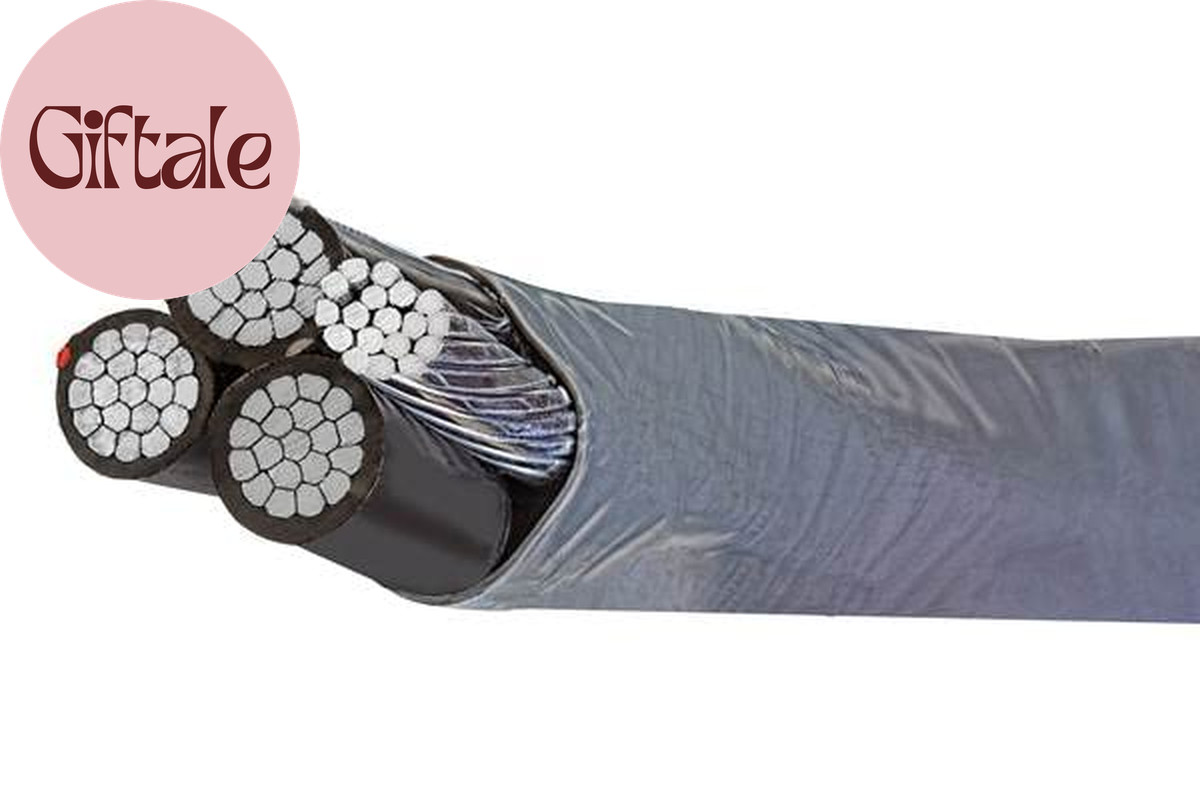

1/0-1/0-1/0-2 SER Aluminum Service Entrance Cable (50FT Cut):
$301.14

Applications:
SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90°C for use in wet and dry locations. SER cables are LEAD FREE and RoHS - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration

Standards:
- UL 854 Service Entrance Cable

Specificatons:
Conductor Size: 1/0 (3 total)
Bare Neutral Size: 2 AWG
Outside Diameter: 1.05 inches
Ampacity: 125 Amps
Net Weight: 0.55 pounds per foot

Cable that is commonly used to deliver power from the service drop down to the meter base, and then from the meter base to the distribution panel board
Three #1/0 AWG Conductors with one #2 AWG Ground
Outside Diameter of 1.05 Inches
Ampacity of 125 Amps @ 90 Degrees Celcius
0.55 Pounds per Foot
