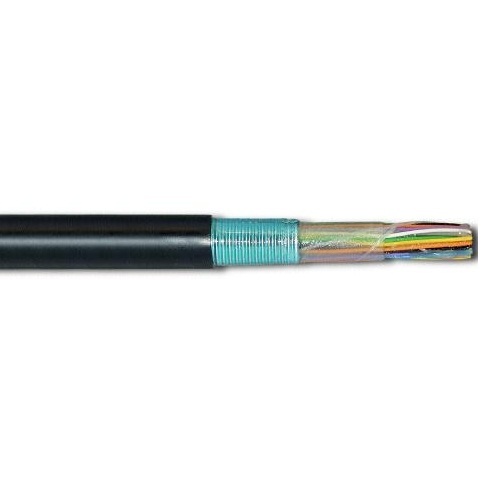

100' 22 AWG 6 Pair PE-89 Outside Plant Direct Burial Telephone Cable Black Click Thumbnails to EnlargeAPPLICATION

• 22 AWG 6 Pair PE-89 Outside Plant Telephone Cable is primarily used for either exchange area or trunk service installed in duct or directly buried.

CONDUCTORS

• Solid soft drawn bare copper conductor

INSULATION

• Expanded polyethylene (Foam Skin) with an external layer of solid, high-density polyethylene insulation, with a distinctive color code, which conforms to telephone industry standards. The conductors are twisted in pairs and then cabled together to be round. The core is filled with an ETPR compound.

INNER JACKET

• Black Polyethylene Inner Jacket.

SHIELD

• Corrugated 8-mil thick aluminum tape shield applied longitudinally over the inner jacket.

OUTER JACKET

• Black, linear, low-density, high molecular weight polyethylene jacket.

STANDARDS

• Meets requirements of REA/RUS PE-89
• ANSI/ICEA S-84-608
• ASTM B3, B258

DISCLAIMER

• Picture May Not Represent Actual Cable and is Only Used As a Representation Please Refer to The Specifications for Product Accuracy.

PRODUCT SPECIFICATIONSSize22 AWGNumber of Pairs6Overall Diameter (inches)0.470Weight (Lbs/1000ft)85Shipping
