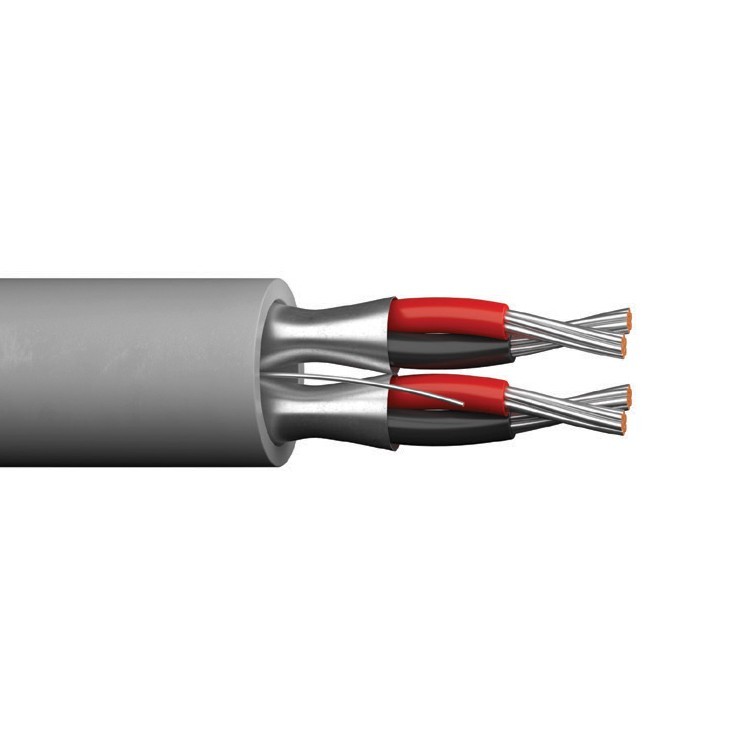

100' Carol C0562A 18 AWG 4 Pair Foil Shield Power Limited Tray Cable 300V Click Thumbnails to EnlargeDESCRIPTION

• Carol C0562A 18 AWG 4 Pair Foil Shield Type PLTC Power Limited Tray Cable 300V

APPLICATION

• Power-limited circuits
• Intercom systems
• Business machines
• Computer interconnects
• Suitably marked for appropriate tray cable installations
• Petrochemical control systems
• Burglar alarms

CONDUCTOR

• Fully annealed stranded Tinned copper per ASTM B33

INSULATION

• Polyvinyl Chloride (PVC)

SHIELD

• 100% Flexfoil Aluminum/Polyester, 25% overlap foil facing out
• Stranded tinned copper drain wire

JACKET

• Polyvinyl Chloride (PVC)

COMPLIANCES

• NEC Article 725 Power-Limited Tray Cable (UL: 105°C or 60°C, 300 V)
• NEC Article 800 Communications Cable (UL: 105°C or 60°C, 300 V)
• UL Style 2464 (UL: 80°C, 300 V)
• UL PTLC Listing
• CSA CMG (CSA: 60°C) or CM c(UL)
• RoHS Compliant Directive 2015/863/EU (RoHS-3)
• Passes CSA CMG Flame Test

PRODUCT SPECIFICATIONSSize AWG 18Number of Pairs 4Number of Strands 16Insulation Thickness (inch)0.016Jacket Thickness (inch)0.042Overall Diameter (inch)0.440Nominal Capacitance (pF/ft) (A)33.50Nominal Capacitance (pF/ft) (B)60.30
