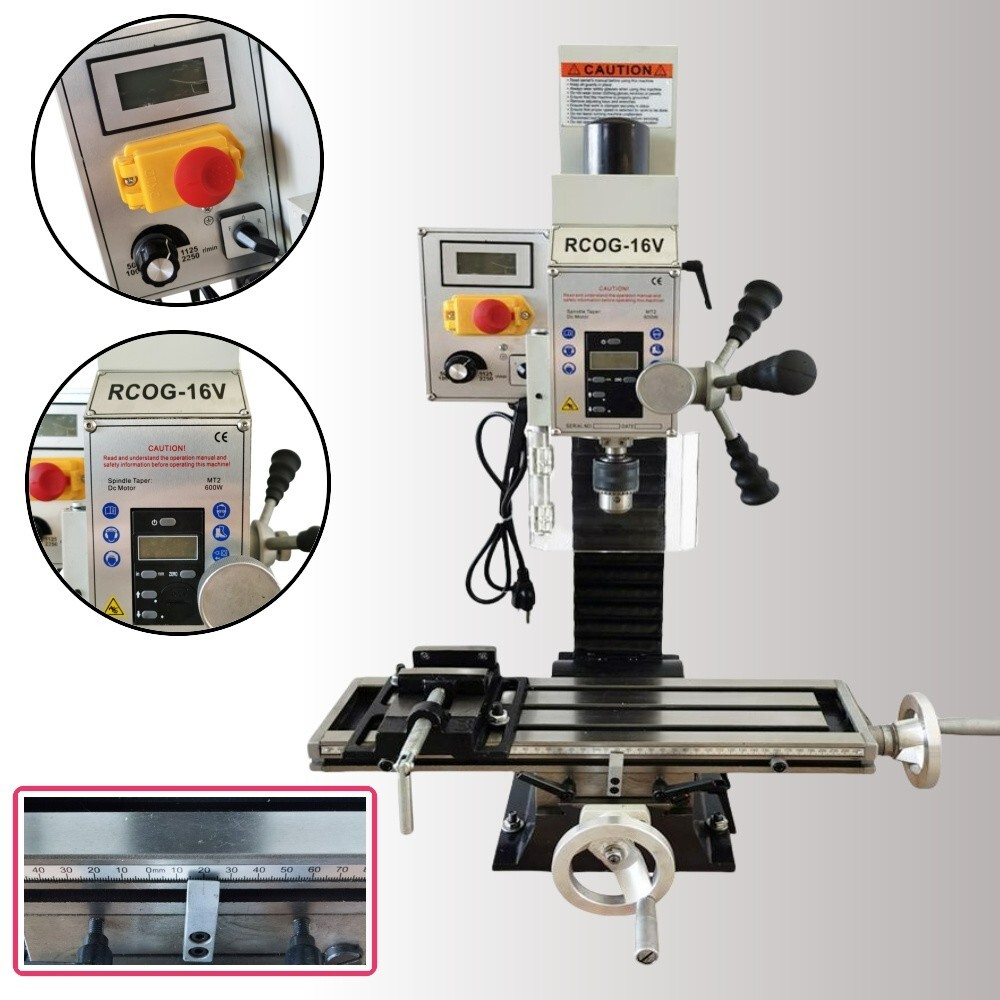

110V 600W Precision Multi-function Drilling and Milling Machine Copper Brushless:
$1715.80

110V 600W Precision Multi-function Drilling and Milling Machine Copper Brushless Motor HayWHNKN®RCOG-16V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine.

Powerful function: This is a multi - functional drilling and milling machine, can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model.
Brushless motor:Adopts 600 watt high power pure copper brushless motor, strong power, can work continuously for a long time; At the same time, the belt drive is used for lower noise.
All metal: It USES an integrated spindle and brass gear, which makes it not only precise but also durable.
Variable-Speed: Weather you need high speed or lower speed spindle operations this machine can handle it. Boasting a 50-2250 RPM spindle speed for the extreme precision your project needs.
It is important to note that this lathe has only a metric scale.

Model: RCOG-16V Voltage: AC110V/60HzMotor power:600W brushless motor X axis stroke: 8.66\"(220mm) Y axis stroke: 6.30\"(160mm) Z axis stroke: 8.27\"(210mm) Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)Max. drilling diameter: 0.63\"(16mm)Max. Face screening capacity: 2.05\"(52mm)Max. vertical milling capacity: 0.63\"(16mm) Distance from spindle to table: 13.8\"(350mm) Spindle taper: MT2 Spindle stroke: 2.05\"(52mm)The Range of spindle speeds: 50-2250rpmTable size: 19.68\"*5.51\"(500mm*140mm)T groove width: 039\"(10mm) Package size: 23.6\"*19.7\"*30.3\"(60cm*50cm*77cm)Net weight/Gross weight: 163.1LB(74kg)/195.1LB(88.5kg) Baffle
Rotating acrylic transparent
baffle, can clearly observe the
processing process, but also
to prevent the processing of
debris hit the face, to protect
personal safety. Wide Application
With drilling, plane milling, milling
groove, chamfering and other
functions, suitable for all kinds of
metal, wood and other materials
fine processing, Widely used in all
walks of life DIY. Spindle Feed Handle
Spindle micro feed locking
handle, convenient manual
control of drilling and milling
depth, release the hand can
automatically return to the
starting position. Machine Head\'Tilt
The head of the machine can be
tilted to the left and to the right by
loosening the fixing screws of the
head of the machine. The tilt Angle
range is up to 90°which is easy for
drilling and milling special angles. Bench Clamp
Workbench is equipped with a
bench clamp, Bench clamp is
fixed on the workbench,Can be
used to clamp a variety of work-
piece processing,clamping effect
is good,save time and effort. Brushless Motor
Motor power up to 600W!! Adopt
high quality brushless motor, with
overload and overheating protection
function; Belt drive, high efficiency ，
low energy consumption, low noise;
Long service life. LCD Display
The rotating speed display and the
drilling and milling depth display
are all high-definition LCD display,
Compared to the digital tube display
more clear, rich.Display units can be
switched between inches and mm. Control Panel
With one key start/stop protection
switch and positive/negative switch,
the spindle speed can be adjusted
within the range of 50-2250rpm,
easy to operate, Waterproof switch,
safer. Item Included(028417)Drilling and milling machine *1Milling chuck set *1Drill chuck *1Drill chuck retaining pin *1Bench clamp *1Fork wrench *2Drill chuck wrench *1Oil can *1Cross screwdriver *1Straight screwdriver *1Hexagon wrench *4English manual *1　
