12 Pcs 3MT MT3 #3 Morse Taper Shank Collets Includes 1/8\" - 3/4\" Chuck Set:
$32.54

Description:Made of high grade tool steel and comes new in factory packaging.Hardened and precision ground to close tolerance.3/8"-16 threaded back for drawbar.

Feature: High performance,reliable quality.We work with every effort to provide quality products and professional service.

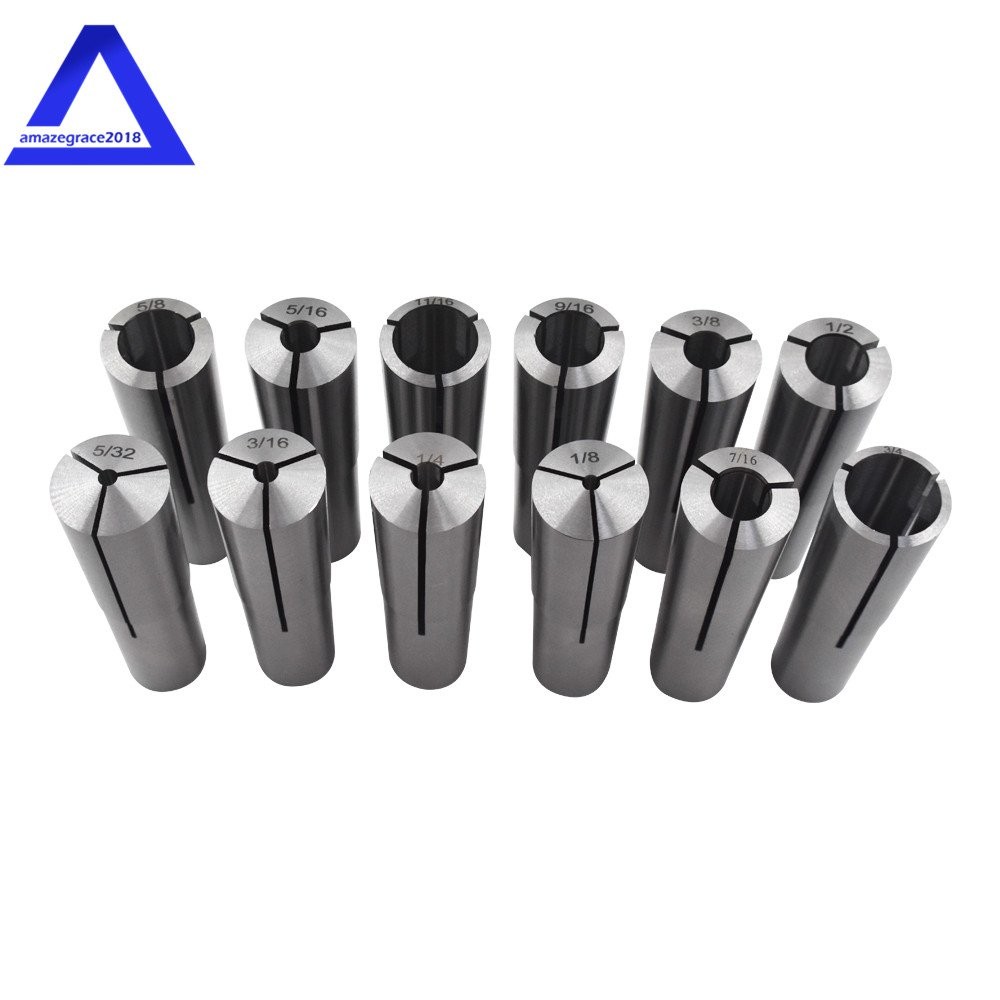

12 Pcs 3MT MT3 #3 Morse Taper Shank Collets Includes 1/8" - 3/4" Chuck Set

Description:
Made of high grade tool steel and comes new in factory packaging.
Hardened and precision ground to close tolerance.
3/8"-16 threaded back for drawbar.

Feature:
High performance,reliable quality.
We work with every effort to provide quality products and professional service.

Specification:
Model: MT3 (JMS3) Taper Spring Collet
Clamping Range (Bore Size): 1/8" - 3/4" (3mm - 20mm)
Included Sizes: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
Drawbar Thread: 3/8"-16 (Requires a drawbar for use)
Body Diameter (OD): 24.1 mm
Overall Length (OAL): 86 mm
Taper Standard: MT3 (Taper #3, Large End Diameter: ~23.825mm, Taper Ratio: 1:19.922)
Material: Premium Alloy Tool Steel
Process: Through-hardened + high-temperature tempered, precision ground.
Surface Finish: Precision polished / anti-rust treatment. Wear-resistant and corrosion-resistant.
Radial Runout (TIR): ≤ 0.015 mm (or ≤ 0.0006")
Compatible Devices: Fit for MT3 spindle milling machines, drill-mills, CNC engraving machines, and some lathe tailstocks.
Mandatory Requirement: Must be used with a 3/8"-16 drawbar. The collet is tightened by pulling from the rear of the spindle. Cannot lock tools without a drawbar.
Incompatibility Warning: Not suitable for lathe spindles without a drawbar. Cannot be used with R8, ER32, ER11, or other collet chuck systems.

About Delivery:
We have warehouses in California and New Jersey.
We will follow the principle of nearest delivery.
When one warehouse is out of stock, it will be shipped from another warehouse.
Thank you for your understanding.

Package Product List:
12 Pcs #3 Taper shank collets includes 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", & 3/4"

Item SpecificsCountry of Origin United StatesBrand marddpairMPN AMZ426173
