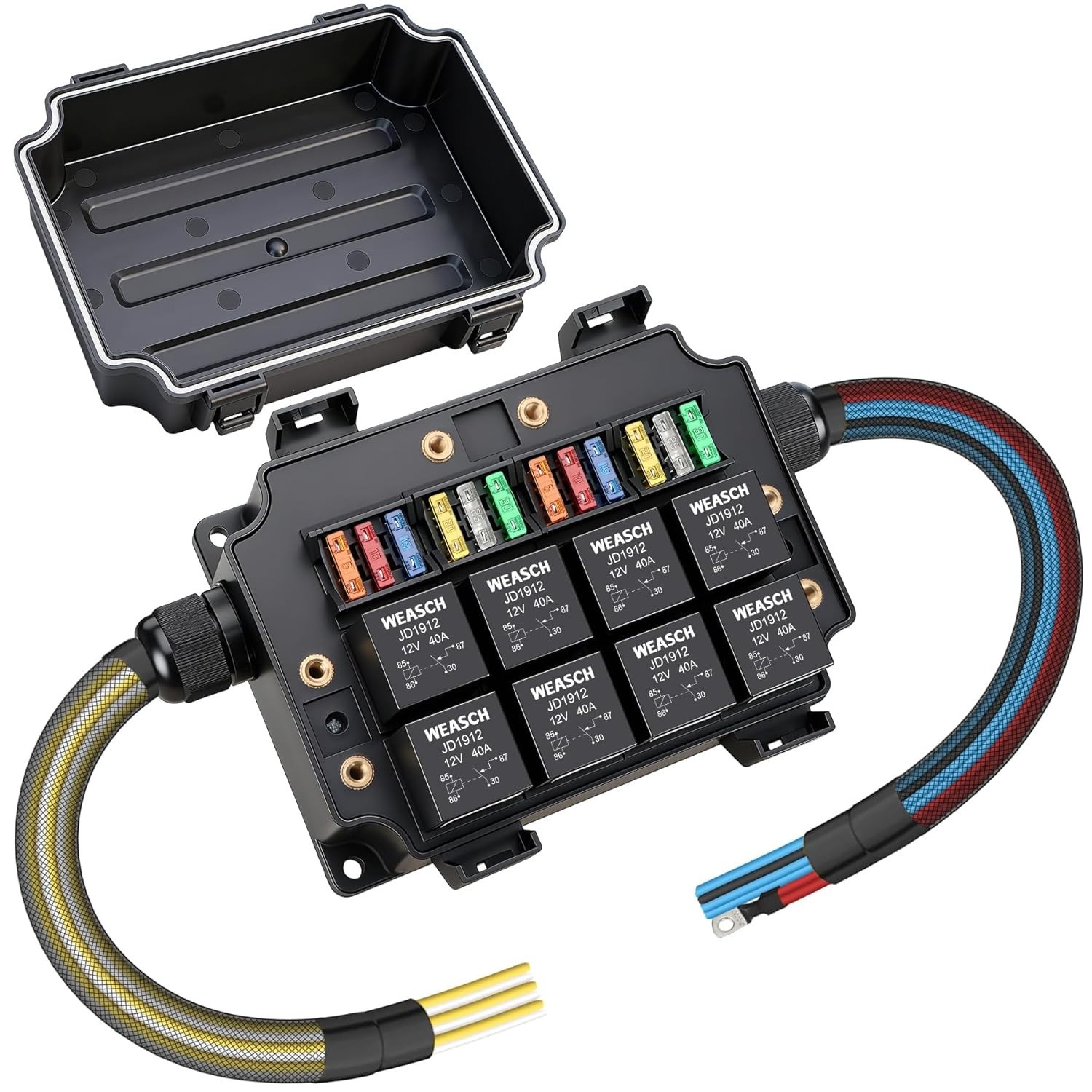

12V 12 Way Pre-Wired Waterproof Fuse Relay Box, 8 Relays and 12ATC/ATO Blade:
$117.98

12V 12 Way Pre-Wired Waterproof Fuse Relay Box, 8 Relays and 12ATC/ATO Blade Fuses, 4-Pin 40A Relay Block and Kit, for Cars Truck Marine Boat Jeep
Description:

Specifications: This 12v relay box package includes 8pcs 4-Pin 40A JD1912 Relays, 12pcs 5A, 10A, 15A, 20A, 25A, 30A ATC/ATO blade fuses. You can replace these fuses according to actual needs
Pre-Wired: 30 Power input pin is 4mm² red wire, handling about 25~32Amp; 87 Normally open output yellow and Fused out blue is 2.5mm² wire, 16~25Amp; 85 Control positive pin White and 86 relay Parallel black is 0.75mm² wire 3~6Amp; 86 Control negative pin is 1.5mm² black wire 10~16Amp. Refer to the wiring diagram for details, Please carefully check if the wire gauge meets your requirements before purchasing. We also offer a wireless version for DIY projects
Waterproof and Dustproof: This fuse relay box includes a waterproof top cover and bottom base. The IP65 waterproof rating can block most water stains and dust from entering the 12V relay box, and protect electrical components from being touched by wires, effectively improving usage safety. Note: Don’t completely immerse the fuse box in water
Double protection: The relay box is equipped with 12 fuse slots, 8 of which are wired in series with the relays to provide double overcurrent protection for the circuit. Protecting your equipment from damage and ensuring electrical safety
