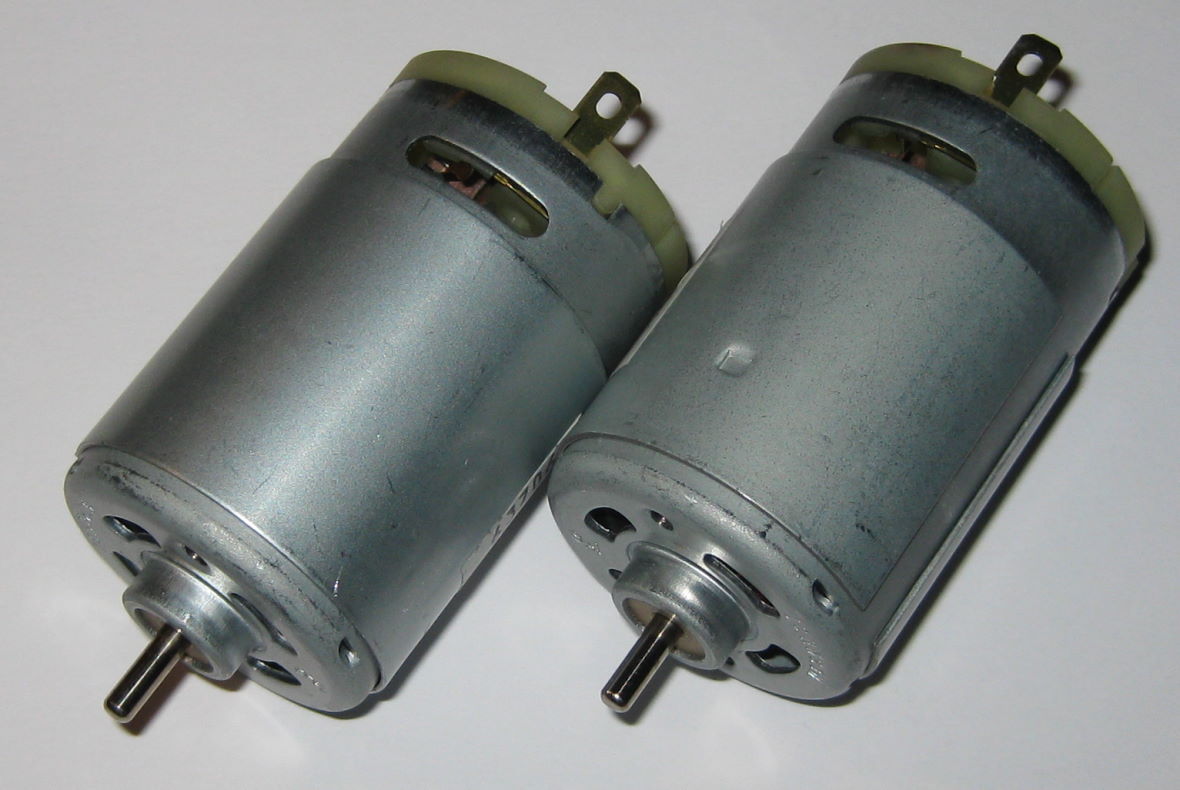

2 X Johnson Electric High Speed DC Motor 1.5-12V 28000 RPM Reversible Fan Cooled:
$24.95

2 X Johnson Electric High Speed DC Motor 1.5-12V 28000 RPM Reversible Fan Cooled

• Electric DCmotors produced by Johnson Electric
• You will receive two motors
• Model: W7DCA21
• Operates on 1.5 - 12 VDC
• High torque output
• No load speed of 28,000 RPM
• 1.0 A current draw @ 1.5 V
• 1.7 A current draw @ 12V
• Shaft extension side has two threaded mounting holes
• Features a built-in fan for cooler operation (intermittent duty)

• Can be operated in either direction, simply reverse power supply polarity
• Dimensions (not including shaft): 65 mm long x 38 mm diameter
• Shaft is 9 mm long and has a 3.17 mm diameter
• Weight: .45 LBS
• Comes with solder eyelets for power connection

---

---

---
