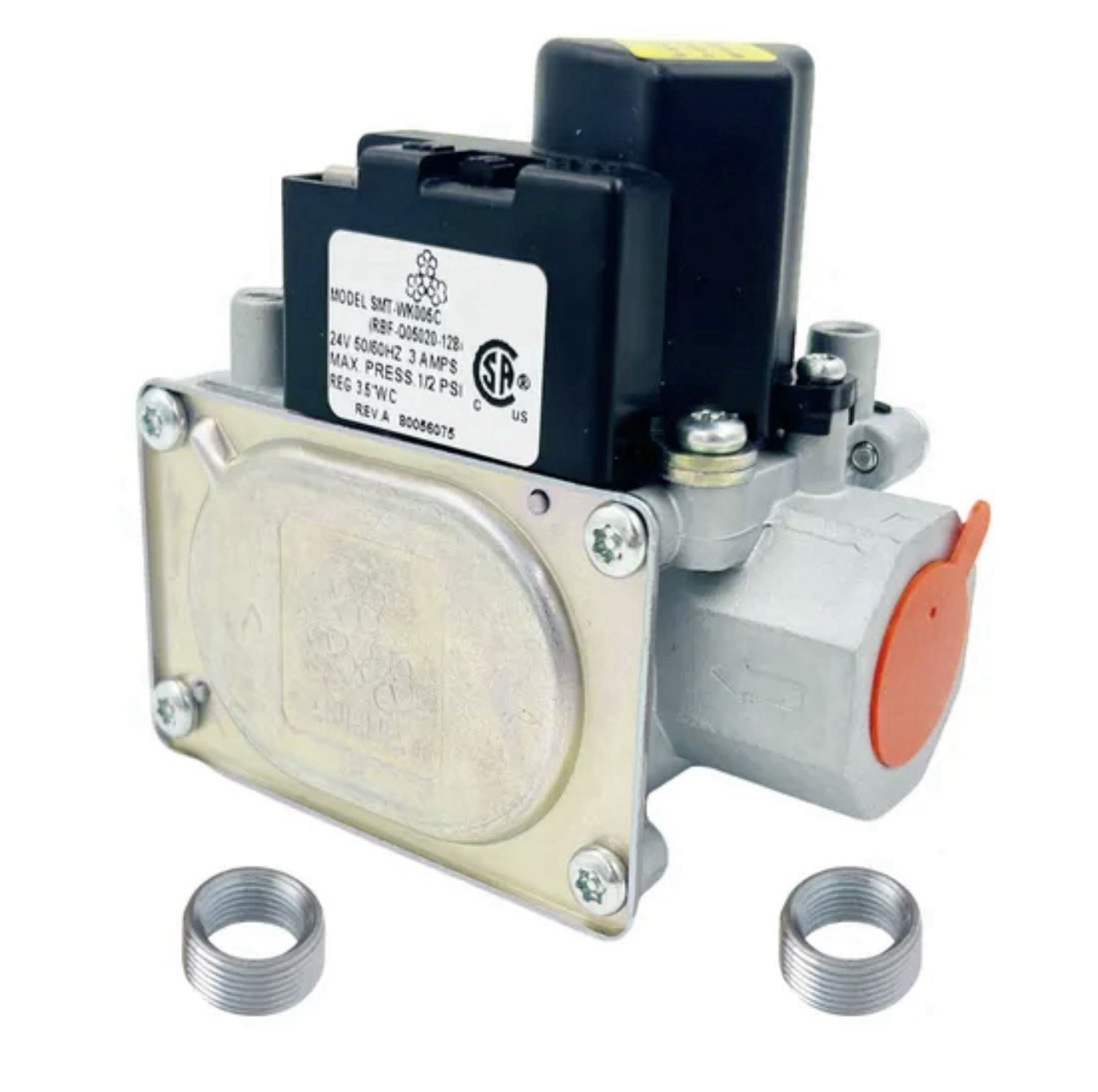

24V Single Stage Furnace Gas Valve Replaces White Rodgers 36G22-254 Natural/LP:
$75.00

Gas Single Stage Main Valve
Replace for White Rodgers 36G22-
254 Gas Heating Furnace Valve, Part for Goodman PN No. 0151M00013
B1282628S B12826-28 B1282614
B12826-14 36G22Y-202
VR8215S121
Single Stage Gas Valve
Gas Valve, Replacement Item Code: 0151M00013
B1282628S B12826-28 B1282614 B12826-14 36G22Y-202
VR8215S121 replacement for GOODMAN, and 36G22-254 replacing For White Rogers Model.
• Preset with NG 3.5'WC Exit Pressure, Inlet and Outlet With 1/2" NPT Female Thread, and includes 2x 3/8" Female NPT Thread converters if your furnace has 3/8" Pipe Diameter.
MAX working pressure for this gas valve is 14"W.C. (1/2"PSI)
• Input 24V, Fast Opening Single Stage Control Valve, Preset with NAT, But Easy Change to LP if needed. Please read our product manual carefully along with the item package. No spring change is required to adjust the valve for LP application.
• When changing the gas type, there is no need to replace any parts of the gas valve, you only need to adjust the pressure regulator according to above instructions.
• Working Temperature Range (-40°F TO 175°F), Adjust Range of Natural Gas: NAT. GAS:2.0"W.C. - 5.0"W.C, LP.
GAS: 6.0"W.C. - 12.0"W.C. Current Setting:3.5"t.3"W.C.
• Gas Flow Capacity: At 1"W.C. Pressure drop
140,000BTU/HR(.64 SP. GR. GAS. 1000BTU/CU.FT),
Voltage:AC 24V,0.30A,50/60Hz
• Gas Valve certification: CSA, certification No.: 80056075
