3 Axis DRO Digital Readot for Milling Machine with 3pcs Linear Glass Scale DRO For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

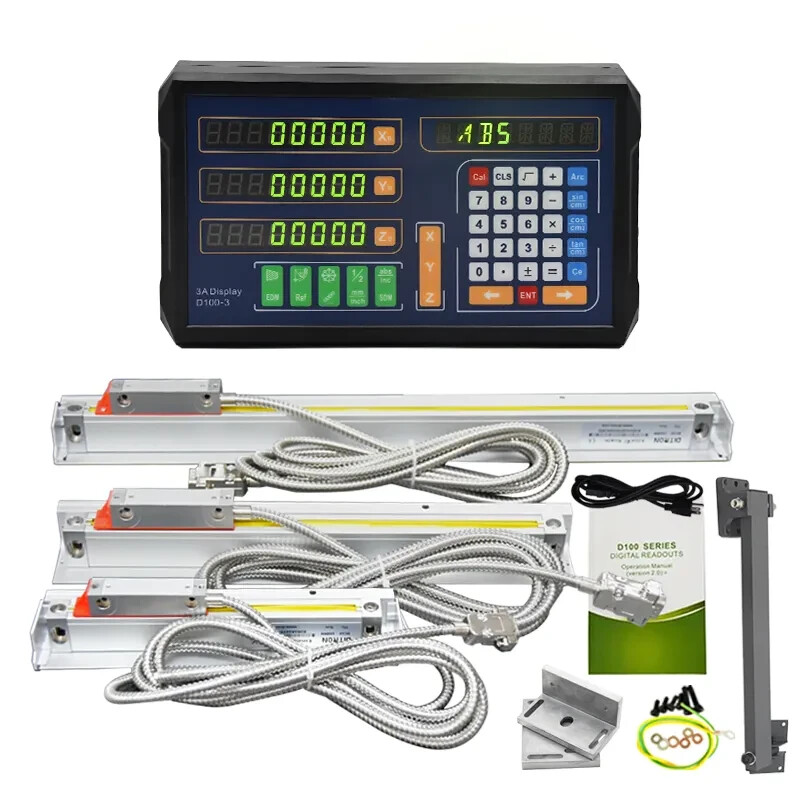

3 Axis DRO Digital Readot for Milling Machine with 3pcs Linear Glass Scale DRO:
$345.00

Order Includes:

3 Axis Digital Readout(D100)

3 Pcs Standard linear scale 50-1000MM(1um/5um can choose)

1* User manual

1* Suitable Plug

All of installation accessory are included (Dust cover ,mounting plate ,bracket ,little wiring ...)

Travel length (LO)Option:

50mm ,100mm ,150mm ,200mm ,250mm ,300mm , 350mm , 400mm ,450mm ,500mm ,550mm ,600mm ,650mm ,700mm ,750mm ,800mm ,850mm ,900mm ,950mm ,1000mm

Notice:

1.Please leave travel length when you place order.

2. Ifyou want to customize length,pls contact seller.

DRO Technical Parameters:

• Voltage Range:AC80V-260V/50HZ-60HZ

• Power Dissipation:15W

• Working Temperature:-10C°-60C°

• Coordinate Display:3 Axis

• Input Signal:5VTTL/RS422

• Input Frequency:≤4MHZ

• Features:

  1. Displaying as 8 digits with green LED

  2. Unique film makes covering on the Windows makes the displaying much more recognizable.

  3. High intergration makes the performance be stable.

  4. Switching on & switching off can meet more than 100000 times

  5. Adopting the advanced digital filtering makes the counting be more accurate and stable.










  Linear Scale Parameters:

  • Measuring Length:50-1000mm

  • Output Signal:5VTTL

  • Cross Section:20.5*31mm

  • Working Temperature:-10C°-60C°

  • Sealing Protection:IP55

  • Max.Moving Speed:60M/Min

  • Reference Point:Every 50mm

  Features:

  1. Vertical five bearings sliding system, smooth and accurate movement

  2. Calibrated by Laserinterferometer,accuracy guaranteed.

  3. Full sealing structure,swarf and coolant proof.

  ---

  ---



  ---
