3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil:
$352.88

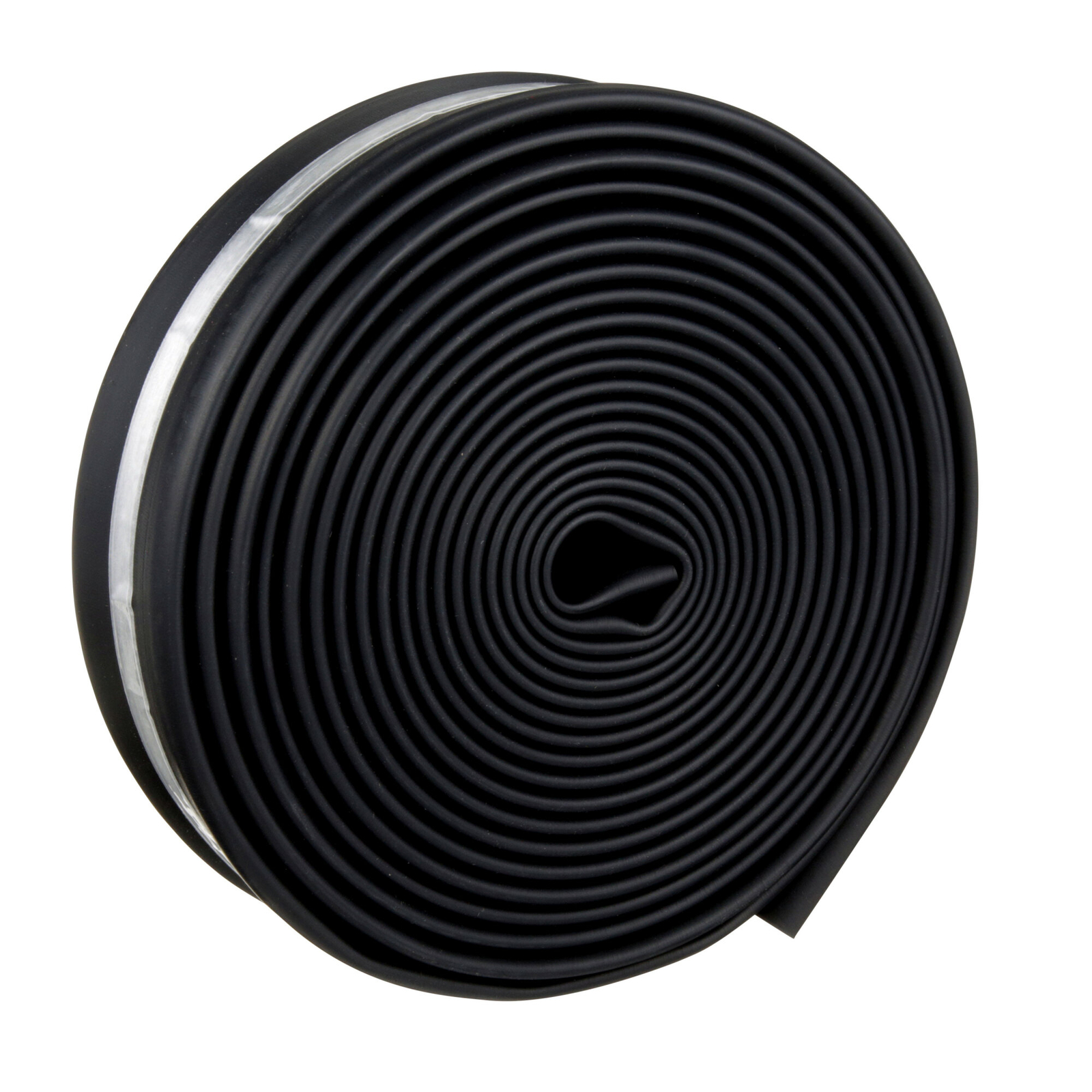

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil

Manufacturer:3M
Part Number:7000132373

Keep connections safe from corrosion, abrasions and chemicals with a 3M ITCSN Heat Shrink Cable Sleeve. Its chemically cross-linked polyolefin construction seals out moisture, and it shrinks quickly at a 3:1 ratio when heat is applied to provide electrical insulation for 1 kV-rated applications. This cable sleeve withstands temperature ranges from -67 to 230 degrees F (-55 to 110 degrees C).3M™ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Superior resistance to abrasion, corrosion and chemicals
Offers reliable performance for electrical splices, connections and terminations
Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
Made of black cross-linked polyolefin
Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Please allow 2 days for production. Sold as case General Information Brand3M™Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink TubingProduct TypeSpliceSplice TypeHeat ShrinkTubing TypeHeavy WallCountry Of OriginUnited StatesSold AscaseLead Time2 daysDimensions and Specifications Cable Size Range3/0 AWG-450 kcmilExpanded Inner Diameter1.5 inExpanded Inner Diameter (Metric)38.1 mmInner Diameter After Shrink (Imperial)0.5 inInner Diameter After Shrink (Metric)1.27 cm²Inner Diameter Before Shrink (Imperial)1.5 inInner Diameter Before Shrink (Metric)3.81 cm²Maximum Conductor Size (Imperial)450 kcmilMaximum Conductor Size (Metric)240 mm²Maximum Operating Temperature (Celsius)100 Degree CelsiusMaximum Operating Temperature (Fahrenheit)230 Degree FahrenheitMaximum Voltage Rating1 kVMinimum Conductor Size (Imperial)3/0 AWGMinimum Conductor Size (Metric)95 mm²Minimum Shrink Temperature (Celsius)121 Degree CelsiusMinimum Shrink Temperature (Fahrenheit)250 °FOperating Temperature (Celsius)-55 to 100 Degrees CelsiusOperating Temperature (Fahrenheit)-67 °F to 230 °FOperating Temperature Range (Celsius)-55 °C to -100 °COperating Temperature Range (Fahrenheit)-67 °F to 230 °FOverall Length (Imperial)25 ftOverall Length (Metric)7.62 mmRecovered Inner Diameter0.5 inRecovered Inner Diameter (Metric)12.7 mmTensile Strength (Imperial)2400 Pound-Force Per Square InchVoltage1 kVVoltage RatingUL Rated to 600 V (Shall not exceed 1 kV)Maximum Conductor Size Imperial450 kcmilMaximum Conductor Size Metric240 mm²Minimum Conductor Size Imperial3/0 AWGMinimum Conductor Size Metric95 mm²Minimum Shrink Temperature Fahrenheit250 °FOperating Temperature Celsius-55 to 100 Degrees CelsiusOverall Length Imperial25.0Width0.3 yd
0.28 mHeight0.17 yd
0.16 mLength0.3 yd
0.28 mVolume735.11 cubic inch
12046.3 cm3Weight6 lb
2.72 kgOther Details Adhesive LinedNoDielectric Strength (V/mil)500 V/milDirect BuryNoElongation4.75 %Flame RetardantNoMil SpecAMS-DTL-23053/15,Class 1Minimum Expanded Tubing I. D.1.5 inNon-CorrosiveYesShrink Ratio3:1Solution ForWireless Network: BackhaulSplice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)UL File NumberE-102356Units Per Case1.0Tensile Strength Imperial2400 Pound-Force Per Square InchUsage Information Application SpecificationsUL Listed 486 D for 600V, File Number E102356; CSA Certified File LR86335Material and Composition Adhesive MaterialHot melt adhesive layerMaterialPolyolefinProduct FormSleeve-rollShelf Life3600Color and Appearance Product ColorBlackCertifications and Standards Flammability RatingNon-Flame RetardantSpecifications MetUL 486D*Packaging and Shipping Case Quantity1 Reel About the Manufacturer
