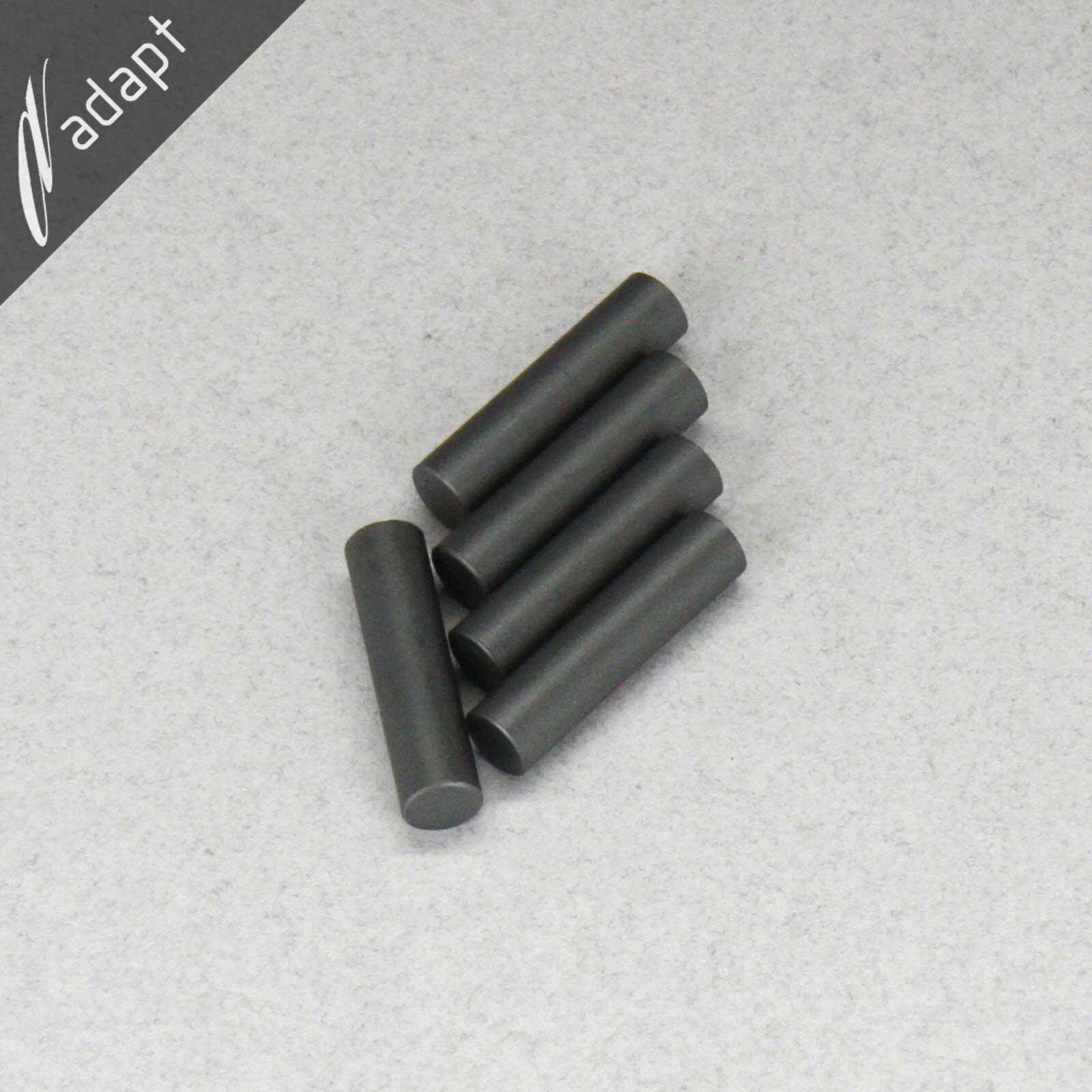

5 ea Ferrite Rod Core 0.25x1.00" Fair-Rite 4077276011 2000u Perm Plain Slug 77:
$7.33

This listing is for 5 each of Fair-Rite Rod Slug Core 4077276011The cores are genuine Fair-Rite product.
Material; 77 MnZnSize = .25" OD x 1.0" LGAL value - Please refer to manufacturer website - fair-riteCoating = None, bareInitial Permeability - ui = 2000Flux Density = 510 mT / 5100 GRecommended uses: Inductors, Filters, Chokes, Coil - Power conversion

Pressed Fair-Rite rods are used extensively in high-energy storage designs.

These rods can also be used for inductive components that require temperature stability or have to accommodate large dc bias requirements.

Figure 2 rods have a 0.6 mm (0.024) maximum chamfer on the end faces.

For frequency tuned rod designs see section Antenna/RFID Rods on the manufacturers website - Fair-Rite

---

---

---
