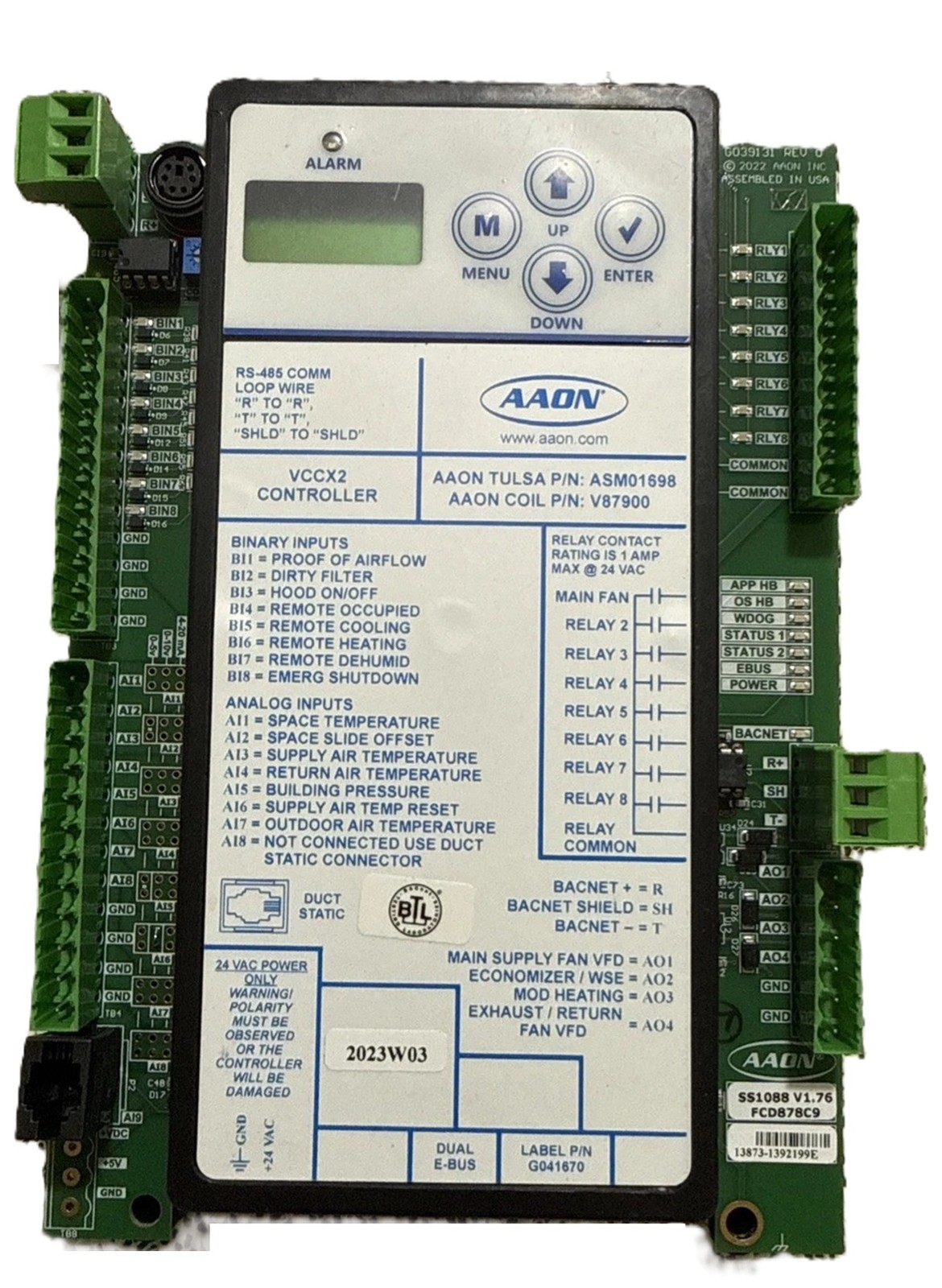

AAON ASM01698 VCCX2 Unit Controller w/ LCD (BACnet) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

AAON ASM01698 VCCX2 Unit Controller w/ LCD (BACnet):
$1771.67

The AAON ASM01698 VCCX2 Unit Controller (alt ref OE338-26B-VCCX2, V87900; software SS1088) is the flagship Orion Controls configurable unit controller for AAON packaged HVAC equipment. It can be configured for Constant Air Volume, Variable Air Volume (VAV), Single Zone VAV, Make-Up Air, and Space Temperature Control of High Percentage Outdoor Air applications, and supports air-to-air heat pump and water source heat pump units.The controller has an on-board BACnet® port for connection to a BACnet® MS/TP network, plus two E-BUS expansion ports for connecting communicating sensors and E-BUS expansion modules via modular cable. It includes an LCD display, and typically works with AAON Refrigerant System Modules (RSM) that control compressors, condensers, and electronic expansion valves while monitoring safeties and alarms.* Brand / Manufacturer: AAON (Orion Controls)
* Part Number: ASM01698 (OE338-26B-VCCX2, V87900)
* Product Type: VCCX2 Configurable Unit Controller with LCD
* Applications: CAV, VAV, Single Zone VAV, MUA, high-percentage OA space temp control; AAHP/WSHP
* Inputs / Outputs: (8) analog inputs, (8) binary inputs, (4) analog outputs, (8) relay outputs
* Communications: BACnet® MS/TP (on-board), AAON E-BUS - (2) expansion ports
* Operating Power: 18-30 VAC, 15 VA maximum
* Operating Environment: -30°F to 150°F, 0-95% RH non-condensing
* Weight: 1 lb; one-year warranty
* Condition: NewNote: the VCCX2 has since been succeeded by the ASM07424 VCCX-IP controller, making the ASM01698 a key OEM replacement part for existing VCCX2-equipped AAON units.

Most products will ship faster than the listed timeframe. In addition, we often have more than the listed quantity in stock. If you\'d like to verify stock or check for additional quantity, please reach out to us.

Since 2012, B2E Surplus LLC (aka Back To Earth Surplus) buys and sells quality commercial and industrial supply. This includes automation, building controls, electrical, HVAC, plumbing, and industrial materials. We are dedicated to running an environmentally and socially conscious company. We are known as a \"surplus\", \"overstock\", or liquidator. We stock a wide variety of products, including current-catalog and legacy/obsolete products. We also tend to stock a lot of special-order and hard-to-find products.

We are located in Tempe Arizona (USA) and can handle both domestic and international orders.
