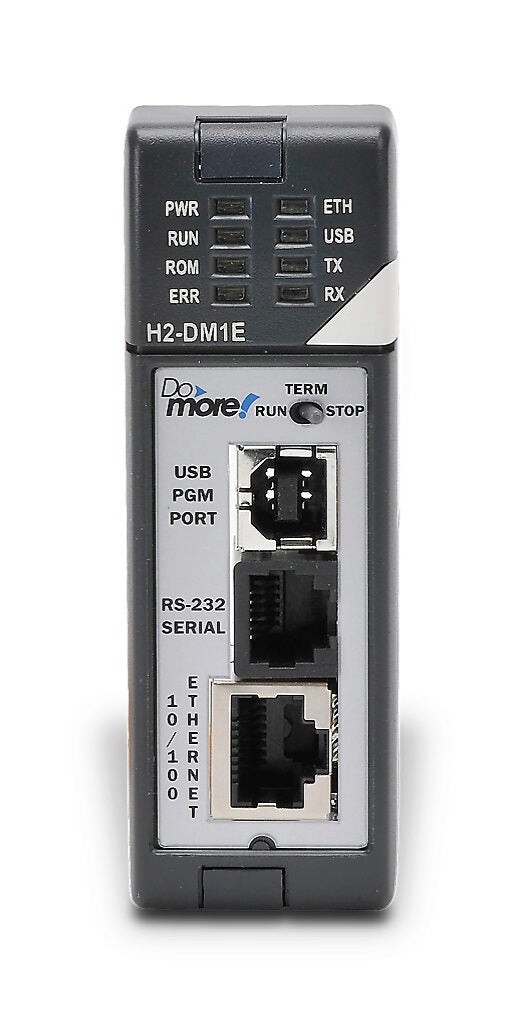

AUTOMATION DIRECT H2-DM1E (BRAND NEW) Do-More DL-205 H2 CPU, 64k:
$387.88

AUTOMATION DIRECT H2-DM1E (BRAND NEW)….First couple I listed sold almost instantly and I found 4 more out in my stack of electronics and plc hardware and the such, so here are a few more that are new, still sealed …
H2-DM1E

Do-more H2 CPU, 64k words ladder memory, (1) RS-232 (RJ12), (1) Ethernet (RJ45) and (1) USB B port(s)

Just cleaning up my garage and shop have several of these brand new, unopened.

Product Attribute Table

Technical Memory192k wordsLadder Memory64k wordsUser Data Memory128k wordsProgramming LanguageLadderProgramming SoftwareDo-more Designer programming software v1.0 or laterCommunication Port and Connection Type(s)

(1) RS-232 (RJ12)
(1) Ethernet (RJ45)
(1) USB B

Port Protocol(s)

Do-more protocol
Modbus RTU Master/Slave
Modbus TCP
ASCII In/out
TCP/IP
UDP/IP
EtherNet/IP explicit messaging scanner/adapter
EtherNet/IP implicit messaging adapter
Ethernet remote I/O
K-sequence Slave
programming and monitoring

Port Speed(s)

10/100 Mbps
up to 115.2k baud

Real Time Clock/CalendarYesRetentive MemoryYesBattery BackupYesMaximum Number of PID Loops100+ (configurable to memory limit)IncludesD0-MC-BAT batteryDangerous Goods

Battery Installed: Yes
Packaging Instructions: 970
UN Number: UN3091
Hazard Type: Lithium Batteries
Battery Type: Button
Lithium Content: 0.07
Replacement Battery: D0-MC-BAT
Generic Battery: CR2032
