On eBay Now...Agilent / Keysight N2890A 500MHz Oscilloscope Probe **New / Unopened** For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

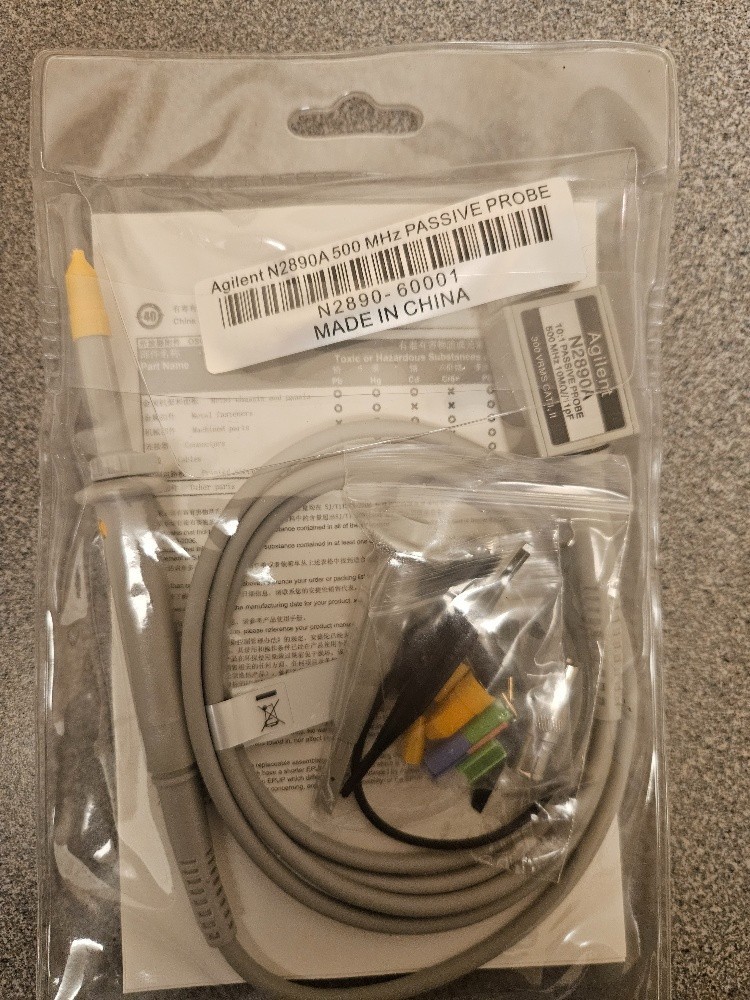

Agilent / Keysight N2890A 500MHz Oscilloscope Probe **New / Unopened**:
$79.00
Oscilloscope Probe was recently removed from storage and is in New Condition with original unopened packaging- Bandwidth: DC to 500MHz
- Risetime: 700 psec (10%-90%)
- Attenuation ratio: 10:1
- Input resistance: 10 MΩ (when terminated to 1MΩ)
- Input capacitance: ~11 pF
- Maximum input: 300 V RMS (or >400Vpk) CAT I and CAT II
- Cable length: 1.3 m
- Probe ID pin: Yes
The Agilent N2890A low-cost 10:1 passive probe provides up to 500 MHz bandwidth and features a high input resistance of 10 MΩ to address a wide range of measurement needs with low probe loading.
The probe can be adjusted for low-frequency compensation and high-frequency compensation. For the best measurements you should compensate your probe to match its characteristics to the oscilloscope.
This probe is compatible with Agilent or Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input.
Free Shipping
