CareFusion / Vyaire Vmax System 2-Way Valve Assembly with Insert (Part 775323). For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

CareFusion / Vyaire Vmax System 2-Way Valve Assembly with Insert (Part 775323).:
$325.00

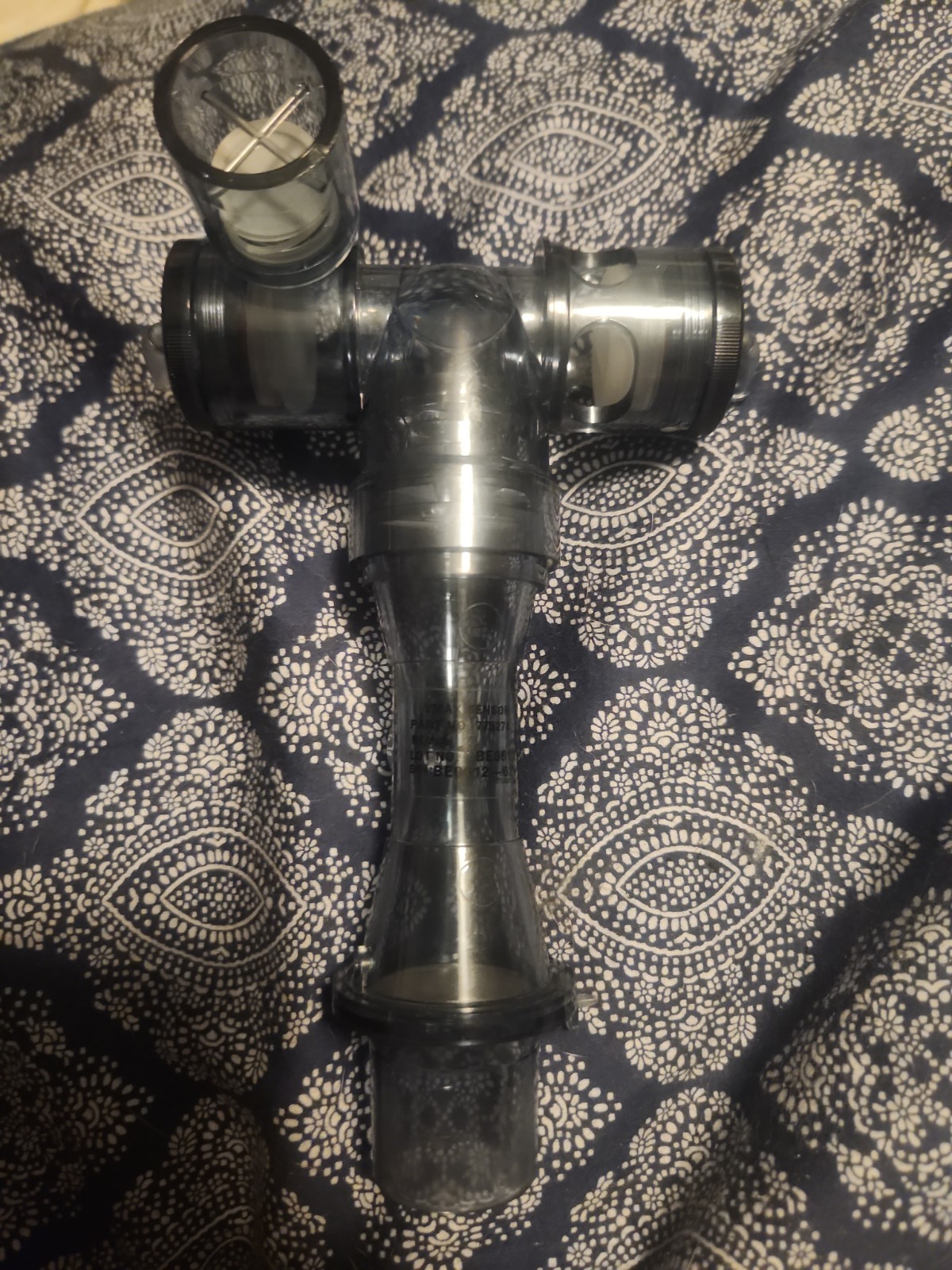

CareFusion / Vmax System breathing valveCareFusion / Vyaire Vmax System 2-Way Valve Assembly with Insert (Part Number: 775323). It connects to the system's mass flow meter / sensor components for pulmonary function and metabolic diagnostic testing.
Technical Specifications & Overview• Part Number: 775323 (Also cataloged under legacy brands Viasys, SensorMedics, or current Vyaire Respiratory Diagnostics LLC).
• Valve Design: Automated, pneumatically driven 2-way breathing valve with insertion components.
Primary Function: Automatically switches patient pathways between standard room air and specialized test configurations or gas delivery systems.
Compatibility: Fully compatible with Vmax Encore series PFT/Metabolic systems (including variations like Encore 20, 22, 29, and 229).
Associated Testing Modules: Actively utilized for Functional Residual Capacity (FRC), DLCO (diffusing capacity), maximum respiratory pressures, compliance, and steady-state breath-by-breath metabolic evaluations.
Materials & Safety: Latex-free clear polycarbonate housing containing built-in ports for direction-sensing lines or silicone cap/diaphragm components.Related Interfacing System ComponentsWhen evaluating this valve setup during a diagnostic or service routine, it usually pairs with the following specifications:
• Flow Measurement: Connects into a Mass Flow Sensor handling flow rates ranging from 0 to 16 Liters Per Second (LPS) via Kelvin sensing electronics.
Common Sub-Assemblies: Works alongside the Cap/Diaphragm Assembly (P/N: 775319) and the 2-Lumen Directional Sense Line Tube (P/N: 769288) which plugs directly into the pressure transducer adapters.
