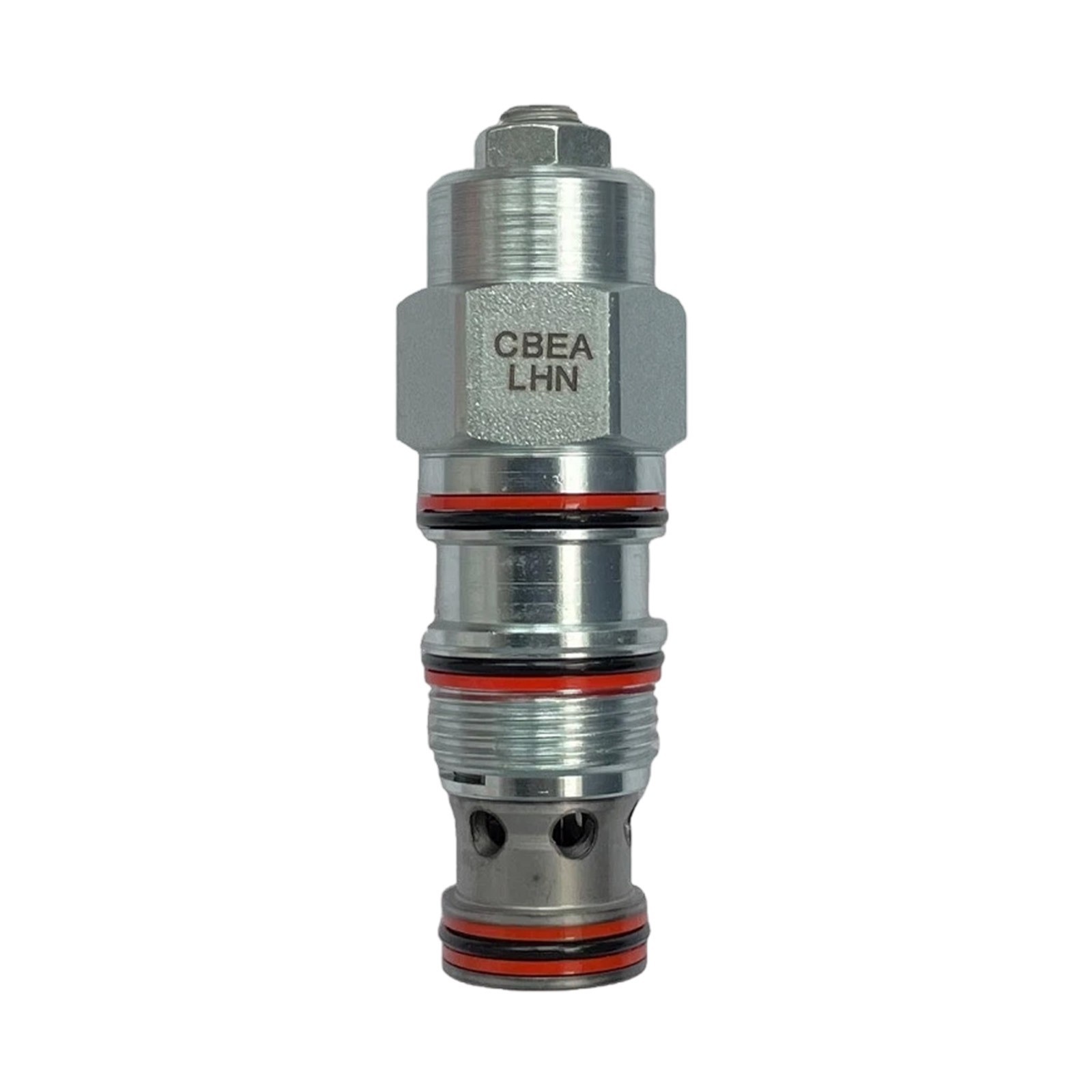

Counterbalance Valve CBEA-LHN CBEALHN compatible with Sun Hydraulics:
$90.99
TECHNICAL DATACavity: T-2ASeries: 2Capacity: 30 gpmPilot Ratio: 3:1Maximum Recommended Load Pressure at Maximum Setting: 3075 psiMaximum Setting: 4000 psiPilot Configuration: Bleed throughFactory Pressure Settings Established at: 2 in³/min.Maximum Valve Leakage at Reseat: 5 drops/min.Adjustment - No. of CCW Turns from Min. to Max. Setting: 3.75Operating Characteristic: StandardReseat: >85% of settingValve Hex Size: 1 1/8 in.Valve Installation Torque: 45 - 50 lbf ftAdjustment Screw Internal Hex Size: 5/32 in.Locknut Hex Size: 9/16 in.Locknut Torque: 80 - 90 lbf in.Seal kit - Cartridge: Buna: 990202007Seal kit - Cartridge: EPDM: 990202014Seal kit - Cartridge: Polyurethane: 990002002Seal kit - Cartridge: Viton: 990202006Model Weight: 0.63 lb.
CBEA-LHN CBEALHN Counterbalance Valve compatible with Sun Hydraulics
$90.99
JLG 4641086 COUNTERBALANCE VALVE
$235.89
NEW Sun Hydraulics CBCALAN Counterbalance valve
$199.00
