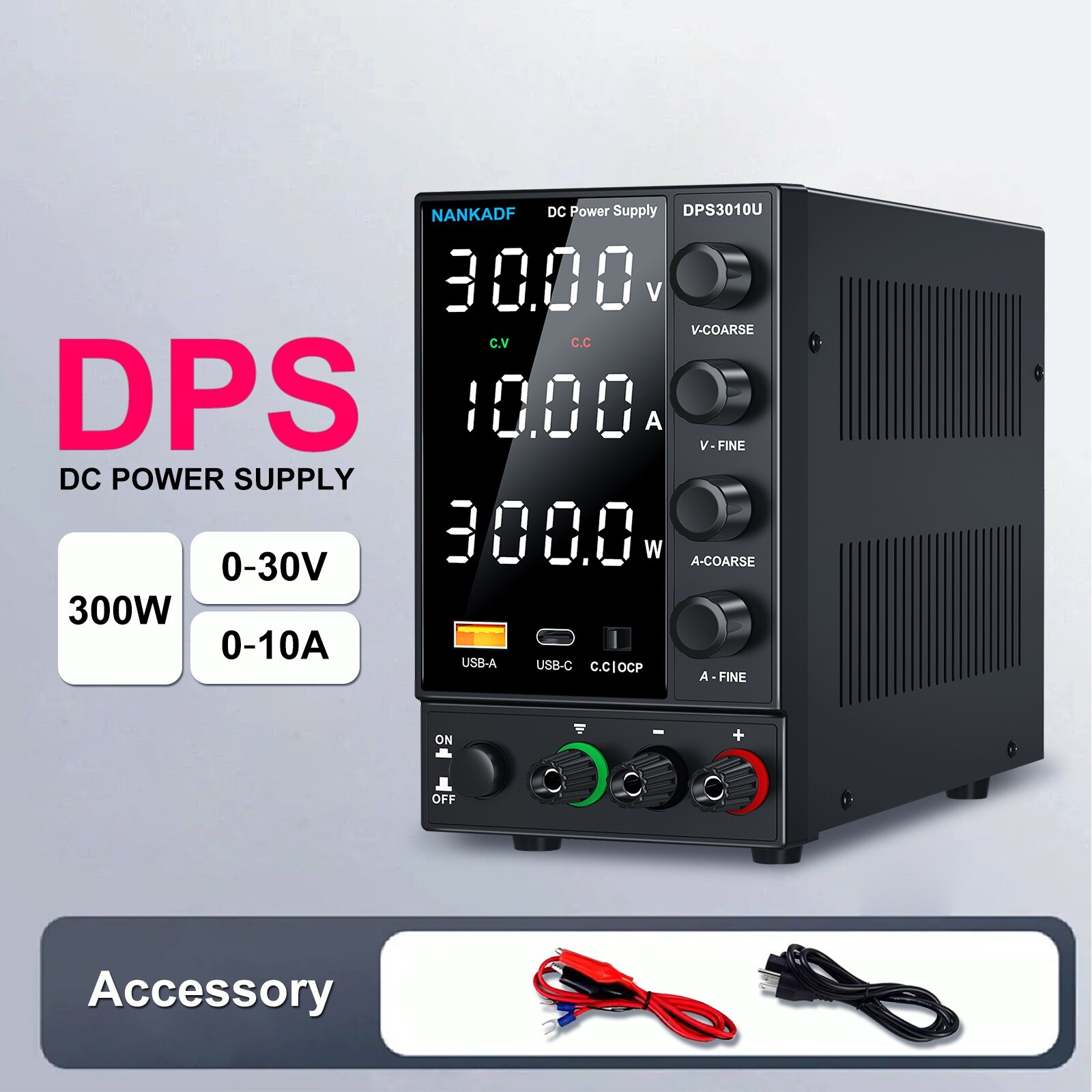

DC Power Supply Adjustable DC0-30/60/120V 0-3/5/10A Lab Variable Bench Switching:
$49.86

DPS series DC stabilized power supply

Product Description

DPS series products are a three window four digit digital display switch DC stabilized power supply that can simultaneously display voltage, current, and power. The product is widely used in mobile phone repair, computer repair, school teaching, and production line use. The use of a coding potentiometer can continuously adjust the output voltage and current between 0 and the nominal value, and can display the set value in advance, making it convenient to use and adjust. The stability and ripple coefficient of the power supply are very good, and the machine has a perfect OCP short circuit protection circuit. The auxiliary function includes USB-A/Type-C fast charging function. Its small size, light weight, beautiful design, convenient operation, and ability to work at full load for long periods of time are deeply loved by users.

Product Characteristics

USB-A/Type-C fast charging function, supporting multiple fast charging protocols.

OCP short circuit protection function, short circuit stops output.

Small size, light weight, and high power density.

Four sets of encoders, coarse and fine tuning, high-precision adjustment.

Three sets of LED four digit displays for voltage, current, and power, with high accuracy.

Temperature controlled fan for heat dissipation, low noise, and long service life.

Application areas

1. Production line testing.

2. Repair of mobile phones, computers, and electrical appliances.

3. Product aging and electroplating.

4. Battery charging.

5. Laboratory, scientific research, and teaching.

6. All other occasions that require a DC stabilized power supply.

product parameter list

Model

DPS305U

DPS3010U

DPS605U

DPS1203U

DPS1602U

Output Power

150W

300W

360W

320W

Output voltage

0~30V

0~60V

0~120V

0~160V

Output current

0~5A

0~10A

0~5A

0~3A

0~2A

Auxiliary functions

USB-A/Type-C fast charging, supporting various fast charging protocols

Protection mode

Current limiting protection / short circuit alarm stop output, self recovery

Working environment

Input style=\"text-align: left; vertical-align: middle; margin: 0pt 0pt 0.0001pt; font-family: Calibri; font-size: 10.5pt;\">Working temperature：0℃～40℃;relative humidity:<80%RH

Storage temperature：-10℃～70℃;relative humidity:<70%RH

Constant voltage CV

Voltage stability：0.1%±3mV

Load stability：0.2%±3mV

Ripple voltage：≤0.5%Vp-p

0 to rated voltage continuously adjustable

Constant current CC

Current stability：0.1%±3mA

Load stability：0.2%±3mA

Ripple current：≤0.5%Vp-p

Recovery time：≤500μS

Temperature coefficient：≤100ppm/℃
