On eBay Now...Digilent Basys 3 FPGA Board + ESP8266 + 2 AM2302 Sensors - LD1 Fault For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

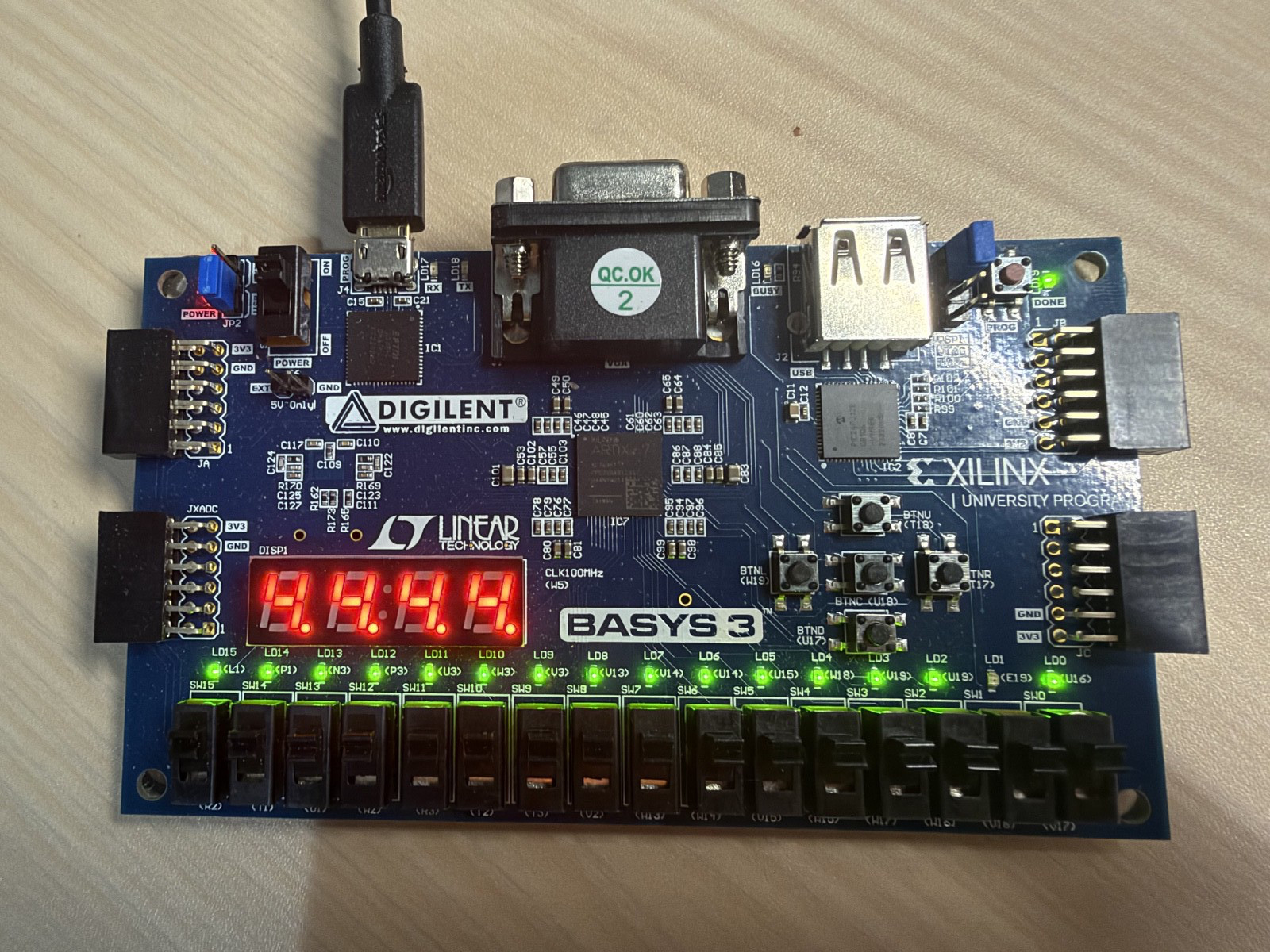

Digilent Basys 3 FPGA Board + ESP8266 + 2 AM2302 Sensors - LD1 Fault:
$75.00
The Digilent Basys 3 FPGA Development Board Kit is a versatile electronics kit designed for general embedded development. Featuring a Basys Artix-7 core, this board includes a variety of components such as USB, VGA, LEDs, and pushbuttons, providing users with the tools they need to create innovative projects. With the Digilent brand known for quality and reliability, this development board kit is a great choice for hobbyists and professionals looking to explore the world of FPGA development.
Testing and condition:
The board powers on and programs successfully through USB. The four-digit display counts through 0–9, and all five pushbuttons responded during testing.
LD1 does not illuminate, including with an independent constant-ON test program. The exact faulty component remains unidentified.
The other LEDs responded during 3 board and original box
Digilent Basys 3 Artix-7 FPGA Dev Board XC7A35T-1CPG236C USB-JTAG VGA
$80.00
Digilent Basys 3 Artix-7 FPGA Dev Board XC7A35T USB-JTAG VGA Pmod
$120.00
Digilent Basys 3 - Artix-7 FPGA Trainer Board
$178.38
