Digital ReadOut DRO kit w Glass scales Mill 2 axis NEW:
$799.95

NEW DRO kit with 2 GLASS LINEAR SCALES for Mill

USA assembled scales, NO hidden FEEs, FAST shipping, US Warranty!

MostRELIABLEscales in this price range! GT05 Glass Scales are assembled, tested and calibrated at ourLafayette, INZS Instruments plant where we manufacture our top of the line USA made LE and LT series of linear encoders and DR300/DR400 Digital Readouts.

Watch out for low cost scales shipped directly from China as well as re-branded products.Our GT05 scales are unique to ZS Systems, and incorporate multiple improvements over imported products. These are the next best thing to our USA made LE/GT series scales (which are equal in quality, precision and reliability to Heidenhain, Acurite & Mitutoyo)

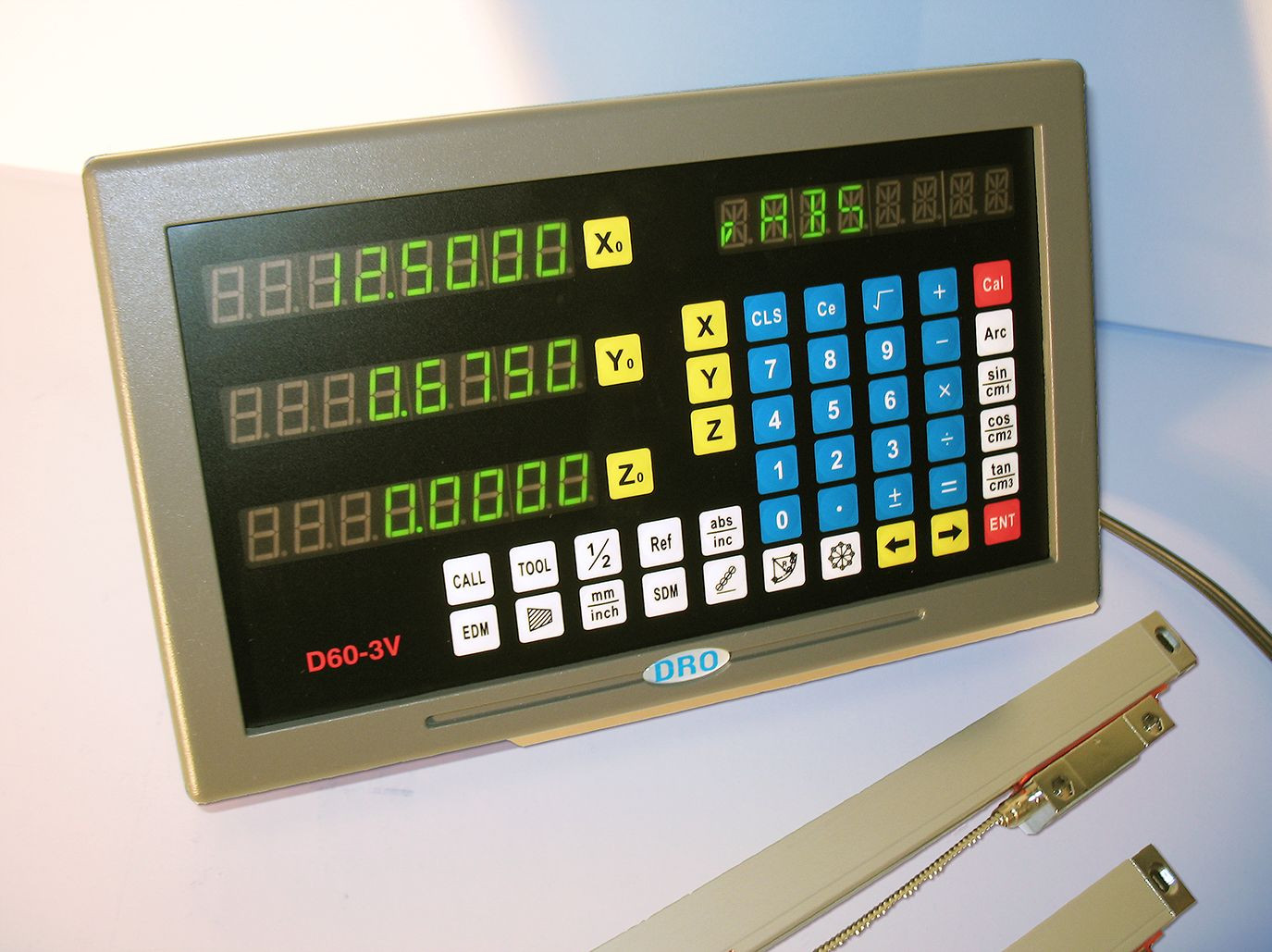

Kit comes with Ditron D603V DRO display which is custom manufactured to our stringent specifications. It is housed in a ruggedDie Cast Aluminumenclosure. Each Unit is tested before it leaves the warehouse to makes sure you will receive a 100% functional unit.These DROs have been installed in our own machine shop and provided years of trouble free service.

DRO kits come with a universal Mill/Lathe 3 axis display and can be switched between Mill, Lathe, and Grinder.

All of the above is backed by our 1 year warranty and a 30 day money back guarantee! We have over12 yearsexperiencewith Digital Readouts, Linear, and Rotary encoders. Our continuous investment into R&D and manufacturing resulted in one of the lowest failure rate in the industry (<0.1% during warranty period). If you are looking for a low cost DRO solutions, this kit is by far the best value! You will not be disappointed!

KEY FEATURES:

- 5 um (0.0002\") resolution scales (display supports 0.1-10 um scales as well)

- Can be switched between Mill, Lathe, Grinder and EDM

- Supports both English and Metric units (in/mm display)

- Absolute and Incremental measuring mode

- Center line (1/2) function

- Sub datum (200 points)

- Tool library (200 points)

- Linear drilling function Mill Mode

- Bolt circle (PCD) machining in Mill Mode

- Incline and oblique plane machining Mill Mode

- Simple and Smooth Radius machining Mill Mode

- Asymptotic machining of inner cavity (chambering) Mill Mode

- Radius/Diameter function in Lathe mode

- Taper function in Lathe mode

- Axis summing in Lathe mode

- Filter in Grinder mode

- Linear and non-linear error compensation

- Auto Zero/reference function

- Calculator with trigonometric functions

- Tool Compensation

- Sleep Mode

- Power Off memory

- 100-240V, 50/60Hz universal AC power

- Mounting Arm and hardware included

- ISO 9001 certified quality control, CE certified

LINEAR SCALES :

This sale includes 2 precision glass linear scales, up to 1000mm (40\") of travel. Scale size is based on a maximum travel distance, not overall length. Overall length is about 5.5\" more. Our scales are fully enclosed and protected from chips, dust, oils and coolant spills. They are made of anodized and chrome plated aluminum for ultimate corrosion resistance. All sizes listed below are now in stock, at our Indiana warehouse!

Here is the list of available travel lengths to choose from:

6\" (150mm) of travel

8” (200mm) of travel

10” (250mm) of travel

12” (300mm) of travel

14” (350mm) of travel

16” (400mm) of travel

18” (450mm) of travel

20” (500mm) of travel

24” (600mm) of travel

30” (750mm) of travel

32” (800mm) of travel

36” (900mm) of travel

40” (1000mm) of travel

WHAT PEOPLE SAY ABOUT US:

I have found your product and support to be outstanding.I appreciate the technical detail you have given me and promptness of your response. - Greg, Winter Springs FL

Thank you....your customer support is unheard of in this day and time. - Dave, Piedmont SC

Nice stuff and fast shipping. Great communication. These guys were very helpful. - LeRoy, Eureka CA

There couldn\'t be a better seller. Great Tech help after sale also - Timothy, Kokomo IN

The scales are really great. Again, I\'m so pleased with them, I\'ll be glad to speak to any potential buyer of yours. - Tony, Nashville TN

HERE IS WHAT YOU GET:

1. One (1) readout display for 2&3 axis mill, lathe, grinder and EDM

2. Two (2) digital linear scales up to 40\" travel, 5um resolution

3. One suspension arm is included with the display

4. DRO Guard - Transparent cover protects your display from grease, metal chips etc.

5. Two(2) sets of scale mounting hardware (L shaped cover, bracket, screws, etc)

6. One user manual in English

WARRANTY

We are a US company and stand behind our products. All products come with 1 year limited warranty. This item is GARANTEED against DOA. All warranty claims are handled through our Indiana facility. That’s right, you only deal with us. Defective items will be replaced upon receipt and completion of manufacturer’s inspection process. Defects caused by improper installation, abuse, physical damage, and normal tear and wear are not covered. Buyer pays return shipping, in most cases we will ship a replacement unit but reserve the right to issue a full refund. Please, review our return policy.

INTERNATIONAL BUYERS

We will gladly ship worldwide, however no warranties of any kind apply and no returns are accepted from international buyers. Please contact us for a shipping quote to international location. We are a legitimate US business and WILL DECLARE FULL VALUE for customs purposes. Please don\'t ask us to send it as a gift etc. Buyer is solely responsible for any foreign taxes and customs duties.
