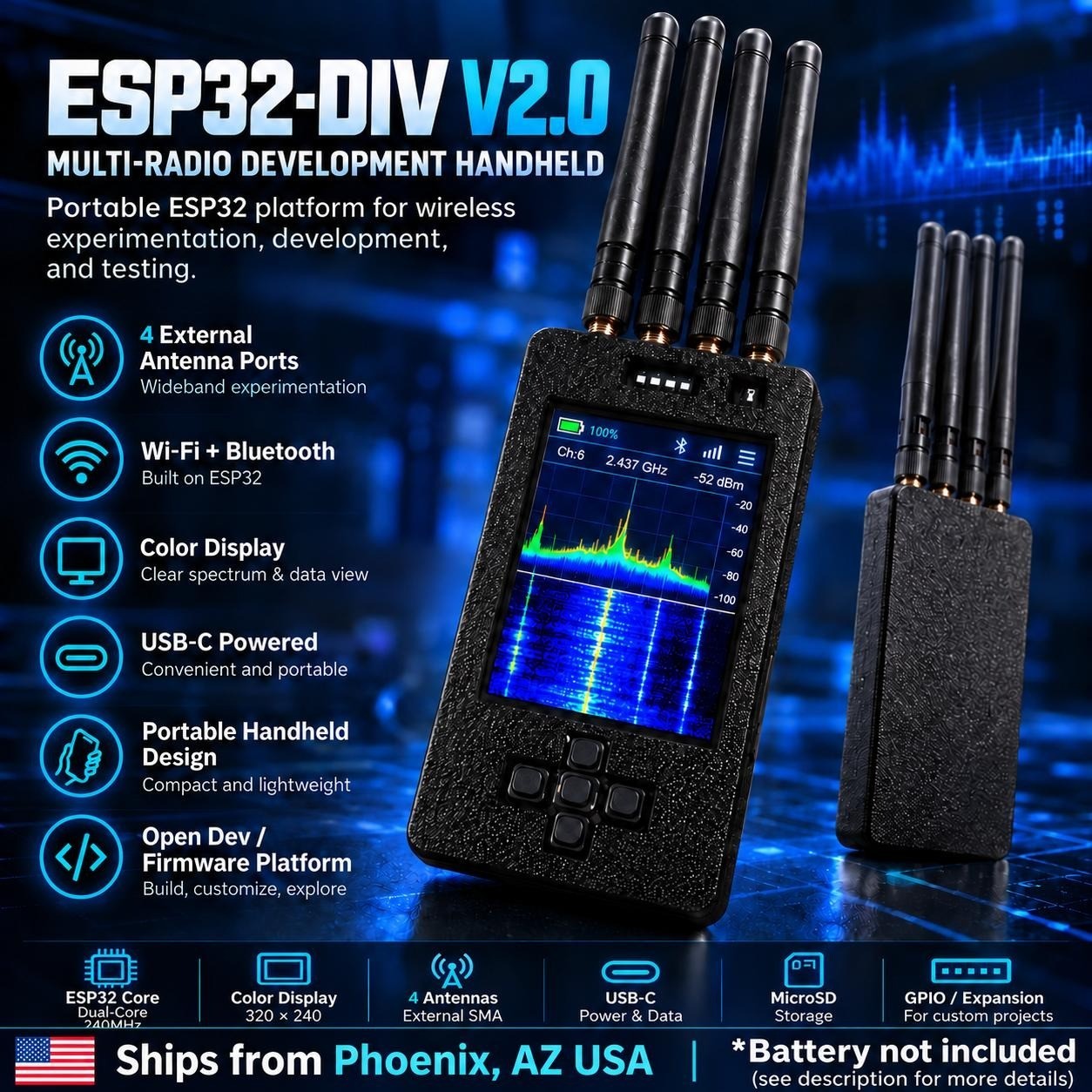

ESP32-DIV V2.0 WiFi Bluetooth NRF24 RF Development Board + 3D PRINTED CASE + USA:
$119.99

Wi-Fi Bluetooth LE 2.4GHz NRF24 Sub-GHz CC1101 Infrared

See it in action.

Tap the preview to watch the interface and supported wireless workflows on YouTube.

▶

Watch the ESP32-DIV video on YouTube

Key features. ESP32-S3 processor 16MB Flash 2.8-inch ILI9341 TFT touchscreen Built-in Wi-Fi + Bluetooth Low Energy 3x NRF24L01 2.4GHz RF modules 1x CC1101 Sub-GHz transceiver Integrated infrared transceiver TF / microSD card slot 4x WS2812B RGB LEDs Integrated buzzer USB Type-C for power, data, and firmware flashing External SMA antenna connectors IP5306 power management Physical control buttons Portable protective enclosure Modular V2.0 sandwich-style board design Multi-band development platform.

The ESP32-DIV V2.0 provides hardware support for a wide variety of wireless development and research applications, including:

Wi-Fi scanning and development Bluetooth LE discovery and testing 2.4GHz RF experimentation NRF24L01 development Zigbee / 2.4GHz spectrum observation CC1101 Sub-GHz experimentation Infrared signal development Wireless signal visualization Data logging IoT prototyping Embedded development Custom ESP32 firmware projects

The V2.0 design improves on the original ESP32-DIV platform with:

▸ ESP32-S3 main controller

▸ 16MB Flash

▸ Improved USB support

▸ Cleaner modular internal design

▸ Pogo-pin sandwich-board construction

▸ 4 integrated RGB status LEDs

▸ Integrated buzzer

▸ IP5306 charging / power management

▸ Improved portability and internal layout

Included.

✔ 1x ESP32-DIV V2.0 main device

✔ 1x Integrated RF shield

✔ 3x NRF24L01 RF modules

✔ 1x CC1101 RF transceiver

✔ 2.8" touchscreen

✔ Protective enclosure

✔ Antenna set

TF / microSD card is NOT included unless specifically shown or stated in this listing.

Open-source & custom firmware friendly.

ESP32-DIV is an open-source development platform, making it a great option for users who enjoy experimenting with ESP32-based firmware and creating their own applications.

Great for. ESP32 enthusiasts Makers IoT developers Electronics hobbyists Students Embedded developers RF experimentation Wireless protocol research Authorized security research Custom firmware development ⚠ Important

This is a developer-oriented electronic device, not a plug-and-play consumer product. Basic knowledge of ESP32 hardware, firmware flashing, batteries, and electronic components is recommended.

A battery is not included. The buyer is responsible for selecting and installing an appropriate compatible battery.

Internal Battery: If you're comfortable removing the device from its 3D-printed case, the board's original creator suggests a 3.7V 603048 LiPo battery. However, internal battery options are more limited due to space constraints. When reassembling, be sure to properly position the battery cable and power connector, and carefully align the power toggle switch.

External Battery (Recommended): For an easier, more flexible solution with significantly longer battery life, we recommend attaching a MagSafe sticker to the back of the case. This allows you to magnetically mount a compatible power bank, such as the Anker Nano Magnetic 5,000mAh, and connect it using a short USB-C cable. Since the ESP32-DIV V2 has two USB-C ports, you can leave the power bank connected while keeping the second port available and there's no need to remove the device from its 3D-printed case.

This product is intended for educational use, electronics development, interoperability testing, RF experimentation, and lawful/authorized security research only.

Users are responsible for complying with all applicable local, state, and federal laws regarding wireless transmissions and radio-frequency equipment.

ESP32-DIV is an open-source project originally developed and maintained by CiferTech.

This is a third-party ESP32-DIV compatible hardware kit and is not manufactured, endorsed, or officially supported by CiferTech.
