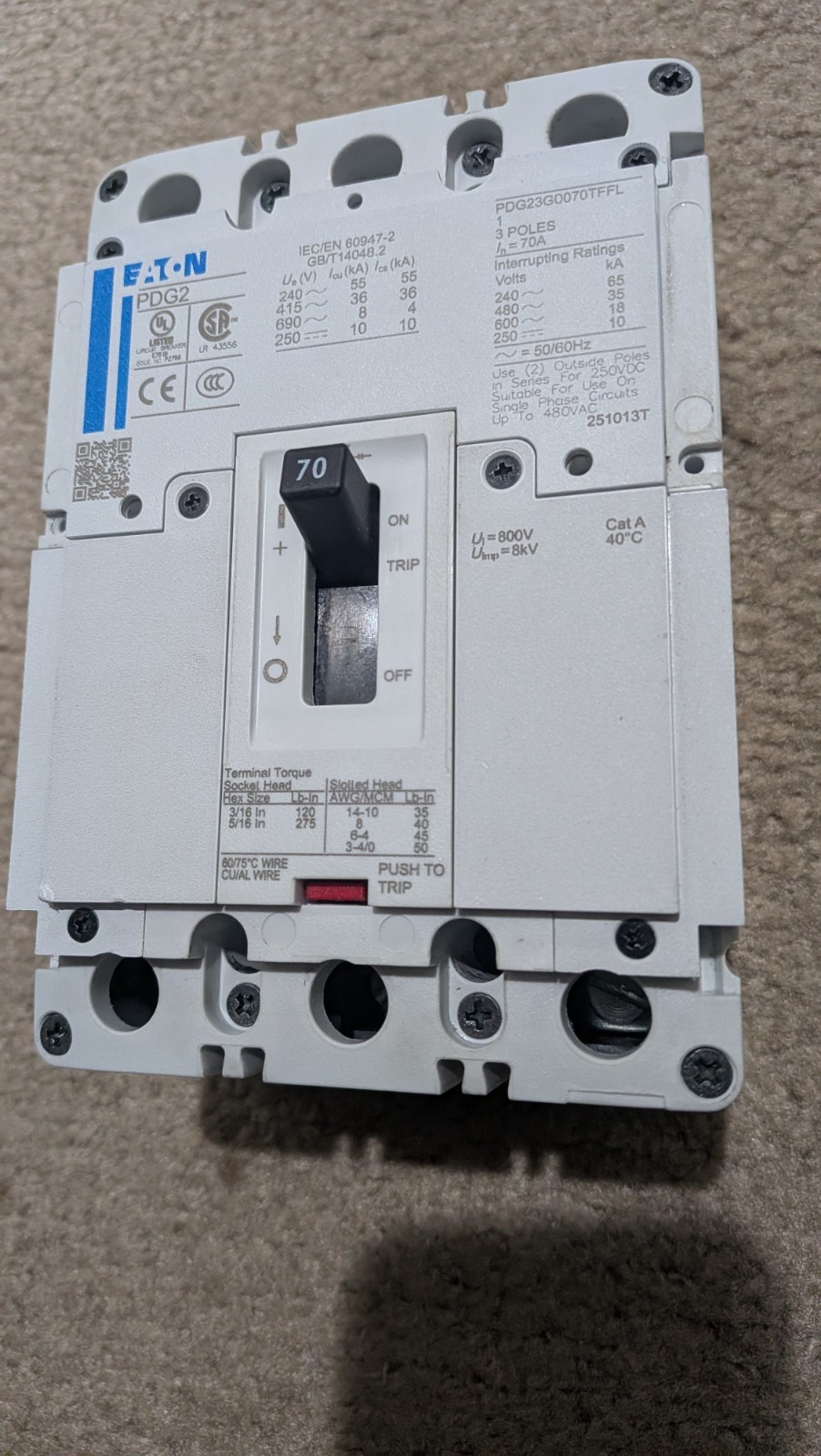

Eaton PDG23M0070TFFJ -70A Moldede Case Circuit Breaker- 3 Pole - 600 Volt:
$195.00

NOTE: REMOVED FROM BRAND NEW PANEL, NEVER BEEN USED.
PRICE COMPARISON: Compare with last image for the same size breaker/same brand
Description
Built for commercial environments, the Eaton PDG23F0070TFFJ is a 70A, 3-pole molded case circuit breaker. It provides reliable long-time and instantaneous (LI) protection. This Frame 2 breaker installs into Eaton Power Defense and Series C F-Frame panelboards. It acts as an exact replacement for discontinued FD3070 and EGE3070FFG models, including line and load lugs. Delivering 35kAIC at 240V, the unit features fixed thermal-magnetic trip units and a current-limiting design.
Specifications
Key specifications
Brand
Eaton / Cutler-Hammer
Part Style
Panel Mount
Voltage
240VAC, 480VAC, 600VAC, 250VDC
Phase
3
AIC Rating
35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Fit and installation
Terminal Type
Lugs
For Use With
Eaton Power Defense Panelboards, Switchboards, Enclosures, Series C F-Frame Panelboards
Wire Gauge
14-1/0 AWG (Al/Cu)
Max Wire
1/0 AWG
Min Wire
14 AWG
Protection and operation
Trip Technology
Thermal Magnetic
Trip Function Code
LI
Trip Function
Long-Time, Instantaneous
Trip Adjustability
Fixed Thermal, Fixed Magnetic
Standards and features
Available Options
Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Mechanism
CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS
Approval
CCC, CE, CSA, IEC, RoHS, UL
Temp Rating
-20C to 70C
Construction Features
Current Limiting, HACR Rated, RoHS Compliant
