FNIRSI 2D15P Touchscreen Digital Oscilloscope Multimeter Signal Generator 100MHz:
$177.80

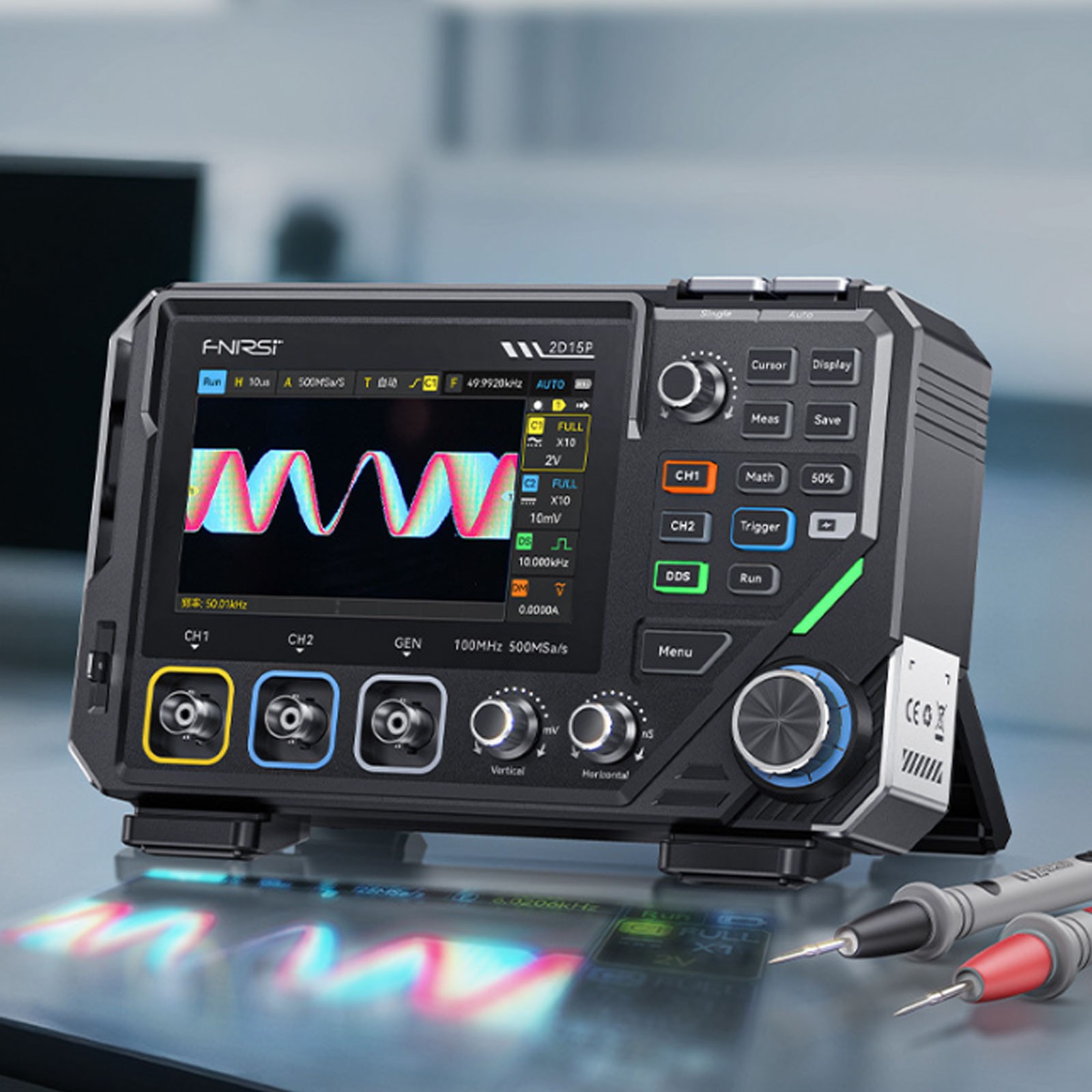

FNIRSI 2D15P Touchscreen Digital Oscilloscope Multimeter Signal Generator 100MHz

Features:
1. Dual-channel 100MHz high-performance oscilloscope: Equipped with a sampling rate up to 500MSa/s and 100MHz analog bandwidth (50MHz per channel when both channels are active), featuring 10K/100K/1M memory depth to effortlessly capture complex and transient signals.
2. 4.3-inch capacitive touchscreen + physical buttons: Combines a 4.3-inch HD touchscreen with physical knobs for intuitive operation. Supports 128-level grayscale display with afterglow and color temperature adjustment for enhanced waveform viewing, enabling clear and intuitive waveform visualization.
3. Built-in 10MHz Signal Generator: Outputs 9 waveform types including sine, square, triangle, DC, noise, and step signals. Adjustable amplitude and duty cycle make it ideal for circuit simulation and testing applications.
4. Integrated True RMS Multimeter: 4½-digit (20,000 counts) true RMS measurement. Supports AC/DC voltage and current, resistance, capacitance, temperature, diode, and continuity testing—a versatile all-in-one tool.
5. Portable Design with Smart Features: Built-in 5000mAh rechargeable battery with Type-C fast charging. Includes auto power-off, screen brightness control, audible/visual alarms, self-calibration, waveform screenshot saving, and USB data export. Product Specifications
Product Name: 3-in-1 2CH 100MHz Fluorescent Oscilloscope
Model: 2D15P
Screen: 4.3-inch capacitive touchscreen
Battery: 5000mAh rechargeable lithium battery
Power Supply: Type-C input (12V/1A fast charging)
Operation: Touch + Knob + Physical Buttons
Display: 128-level grayscale, color temperature, persistence
Dimensions: 196mm × 129mm × 57mm Oscilloscope
Channels: Dual
Sampling Rate: 500 MSa/s
Analog Bandwidth: 100 MHz
Storage Depth: 10K, 100K, 1M
Input Impedance: 1MΩ
Time Base Range: 5ns to 50s
Vertical Sensitivity: 10mV to 10V/div
Maximum Measured Voltage: 800V (X10 range)
Trigger Mode: Auto, Normal, Single
Trigger Type: Rising Edge, Falling Edge, Both Edges
Display Mode: Points, Vectors, Color Temperature
Coupling: AC/DC
Afterglow: min/2s/5s/10s/20s/50s
Operations: 6 basic operations
Waveform screenshot saving: Supported
Waveform export: Supported
Cursor measurement: SupportedSignal Generator
Channels: Single channel
Frequency: 0-2MHz (10MHz for sine wave)
Amplitude: 0.1-3.0Vpp
Duty cycle: 0-100% Multimeter
DC Voltage: 1.9999V/19.999V/199.99V/1000V
AC Voltage: 1.9999V/19.999V/199.99V/750.0V
DC Current: 19.999mA/199.99mA/1.9999A/9.999A
AC Current: 19.999mA/199.99mA/1.9999A/9.999A
Resistance: />Capacitance: />Diode: √
Continuity: √ Shipping List:
Main Unit*1
P6100*2
Test Leads*1
USB-A to Type-C Cable*1
BNC to Alligator Clip Cable*1
User Manual*1
