On eBay Now...For Siemens Boltshield FSPD060 Level 2 Whole House Surge Protection Device For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

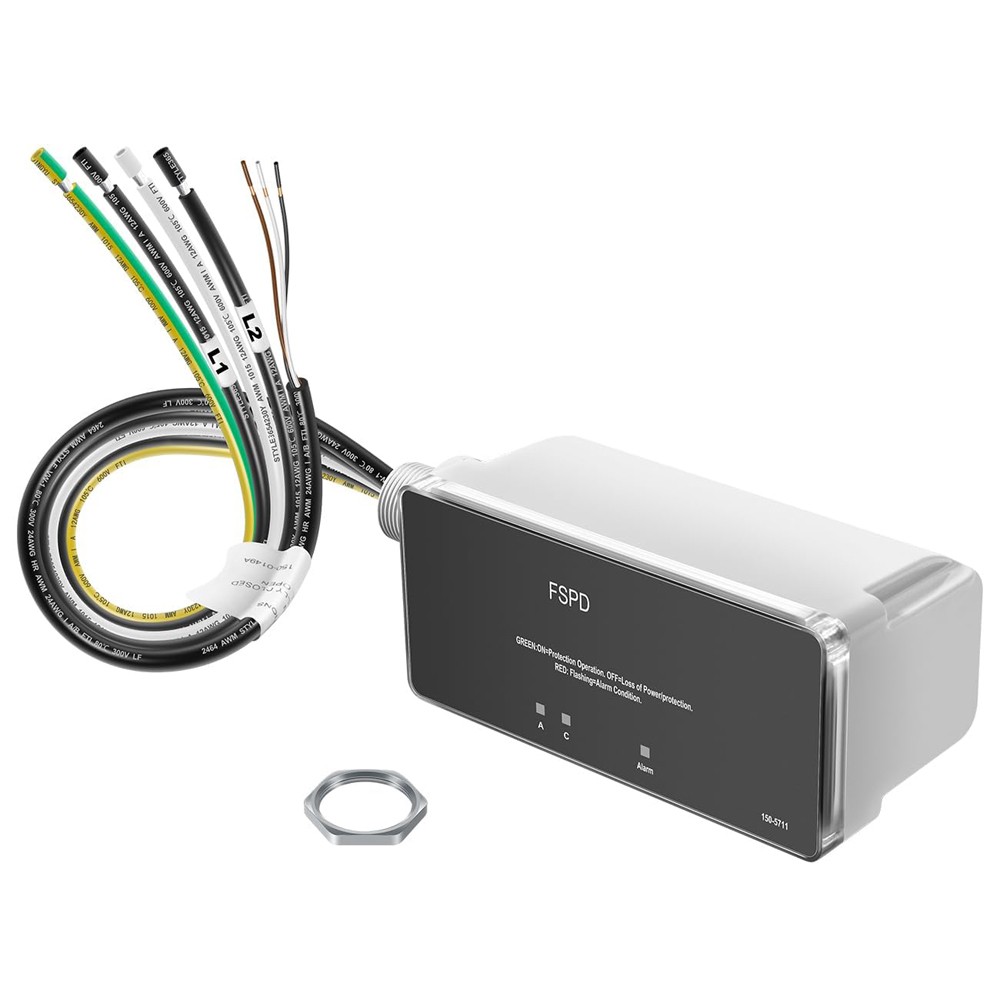

For Siemens Boltshield FSPD060 Level 2 Whole House Surge Protection Device:
$149.34
Type 2 Spd for 120/240v Systems
Designed for standard 120/240V single-phase residential electrical systems. Aftermarket replacement for Siemens FSPD060 and suitable for compatible load centers and electrical panels.
Rated for up to 60,000 amps surge current capacity with a 200kA Short Circuit Current Rating (SCCR), helping protect connected appliances, electronics and electrical equipment from transient overvoltages and utility switching events.
Built with thermally protected MOV components designed to absorb surge energy and help reduce overheating risk during abnormal surge conditions, supporting dependable surge protection performance.
Features a Type 4 enclosure suitable for compatible indoor and outdoor installations. The external parallel-connected design allows mounting next to compatible electrical panels or electrical gear, while the 3/4"-14 NPT threaded connection supports flexible installation.
Equipped with easy-to-see status indicators and an audible alarm to help monitor surge protection status. Visual and audible alerts make it easier to identify when the device requires inspection or attention.
This product is intended for electrical system installation and should be installed by a qualified electrician in accordance with applicable electrical codes and requirements. Please verify system voltage, wiring configuration, electrical panel compatibility, and installation requirements before purchase.
Replacement Reference: FSPD060
Surge Current Capacity: 60,000 Amps (60kA)
Nominal Discharge Current (In): 20kA
Short Circuit Current Rating (SCCR): 200kA
System Voltage: 120/240V AC
Phase/Wire Configuration: Single Phase, 3-Wire
Maximum Continuous Operating Voltage (MCOV): 180V (L-N, L-G, N-G); 360V (L-L)
Voltage Protection Rating (VPR): 700V (L-N, L-G, N-G); 1200V (L-L)
Operating Frequency: 50/60 Hz
Protection Technology: Thermally Protected MOVs
Connection Design: External Parallel Connection
Mounting Connection: 3/4"-14 NPT Threaded Connection
Installation Location: Suitable Indoor / Outdoor Applications
Application: Residential Whole House Surge Protection
Package Includes
1 × Whole House Surge Protection DeviceWe accept PayPal, MasterCard, Visa, American Express, Discover and etc payment.
1.Orders will be ship out within 1 business days after payment has cleared. (Orders from Saturdays, Sundays or holidays will process on next business day and will be ship within 24 hours.) 2.All of the items are shipped from ourWarehouse inUSA.United states 2-5(days)
1.We are responsible for our products and service. If you're not 100% satisfied with our product, simply return it for a full refund in 60 days, guarantee with 1-year warranty.（Items must be in new condition and in original package).）
2.If the item is was damaged in transit, kindly please contact us for a replacement or refund (Excluding contrived damage or misuse).
WHY CHOOSE US
Customer Orientation
Dedicated to communicate with our customers,we provide the superior-quality products and best service for each customer.
Longer Lifespan
The products have been passed through rigoroustesting to ensure reilable quality and ultra durability.
Quick Reply
Staffs in our service team have rich experienceinafter-sales service.E-mails will be quickly respond within 24 hours.
