HP Agilent 8497K Opt 004/890 Step Attenuator 0-90dB DC-26.5GHz Tested:
$799.97

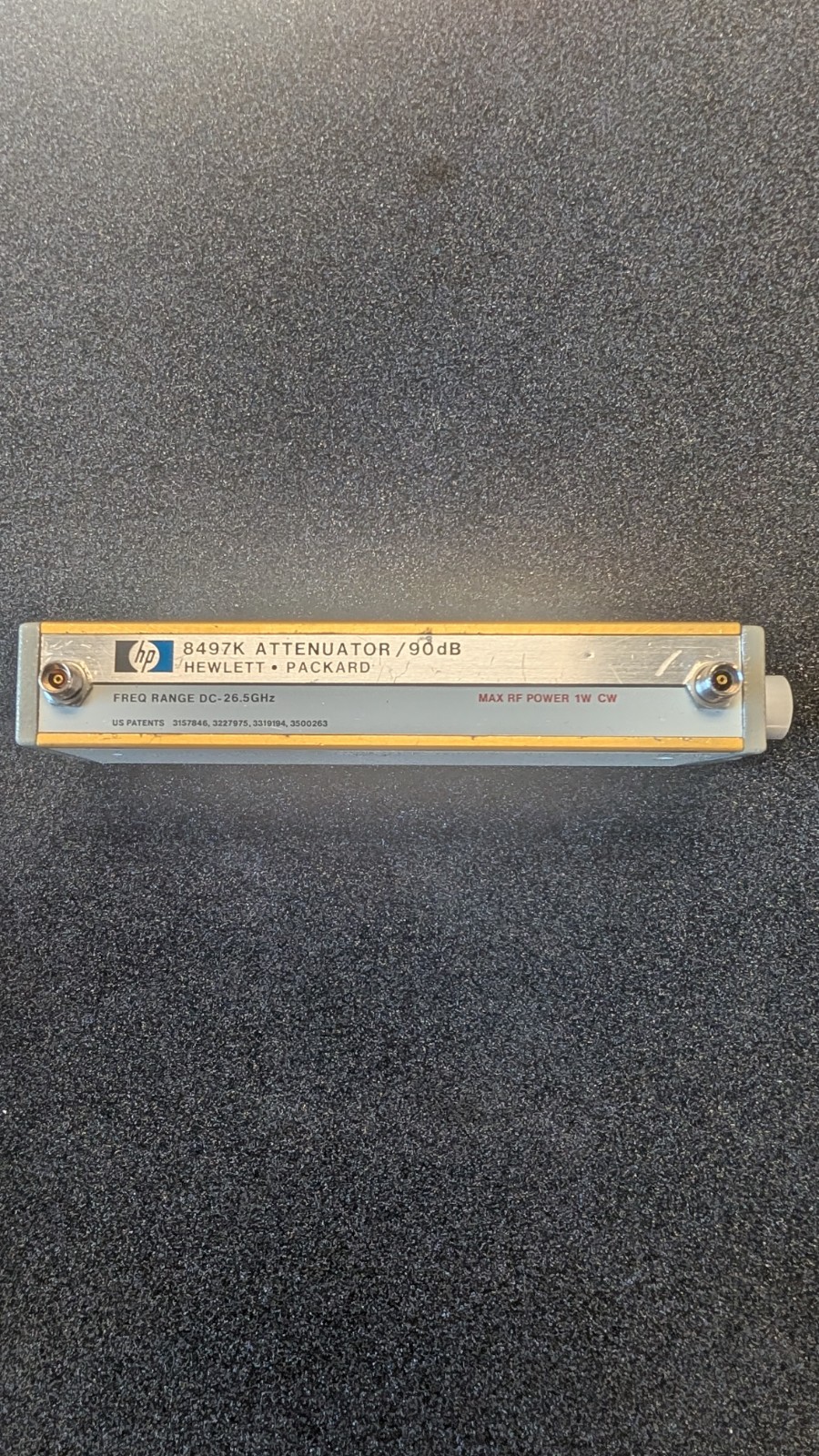

HP / Agilent 8497K Programmable Step Attenuator — Options 004 and 890

This attenuator has been tested and confirmed to be working properly. It is in good used condition with normal cosmetic wear from previous use. Please review the photographs for its exact condition.

Specifications:

• Model: 8497K

• Attenuation range: 0–90 dB

• Attenuation increments: 10 dB

• Frequency range: DC–26.5 GHz

• Impedance: 50 ohms

• Maximum RF power: 1 watt continuous wave

• Programming connection: Viking-style connector

Installed options:

• Option 004: APC-3.5 mm female RF connectors

• Option 890: Originally supplied with NIST-traceable SWR and attenuation measurement data

Option 890 does not mean that the unit currently has a valid calibration. The original measurement data, calibration report and current calibration certificate are not included.

Included:

• One HP 8497K programmable step attenuator

No control cable, attenuator driver, power supply, calibration documentation or additional accessories are included.

Only the item shown in the photographs is included. Please confirm connector, control-voltage and system compatibility before purchasing.
