Hubbell Wiring Device-Kellems Hbl8300red Duplex Straight Blade Receptacle, For Sale

Hubbell Wiring Device-Kellems Hbl8300red Duplex Straight Blade Receptacle,
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Hubbell Wiring Device-Kellems Hbl8300red Duplex Straight Blade Receptacle,:
$36.11

Powered by Frooition

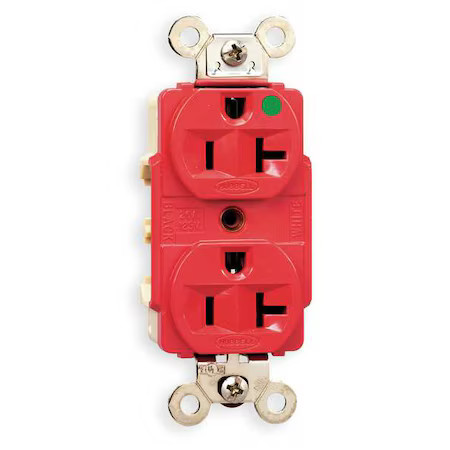

    The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in various commercial and institutional settings. It features a flush mount design and supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. This device is rated for 20 amps at 125 volts AC and complies with the following standards: UL, CSA, NEMA, and applicable Federal Specifications.



    Key Features of the HUBBELL - 20A Duplex Receptacle 125VAC 5-20R RD:


    • Amperage/Voltage: Rated for 20 A at 125 V AC

    • NEMA Configuration: 5-20R (2-pole, 3-wire)

    • Hospital Grade: Rated as hospital grade per relevant standards

    • Contact Material: Features nickel-plated brass bypass power contacts

    • Grounding System: Four-point grounding system included

    • Impact Resistance: Deep face design constructed from thermoplastic polyester material

    • Flammability Rating: UL94 V-0 rated materials

    • Operating Temperature Range: Maximum continuous temperature of 75°C; minimum -40°C (without impact)

    • Circuit Interrupting Capability: Certified for current interrupting at full rated current

    • Certain Accessories Included: Grounding clip and mounting hardware included; wallplate or weatherproof cover compatible with duplex opening (not included unless specified)
