Johnson Controls M4-CGM09090-0 Metasys 18-Point General Purpose Controller For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

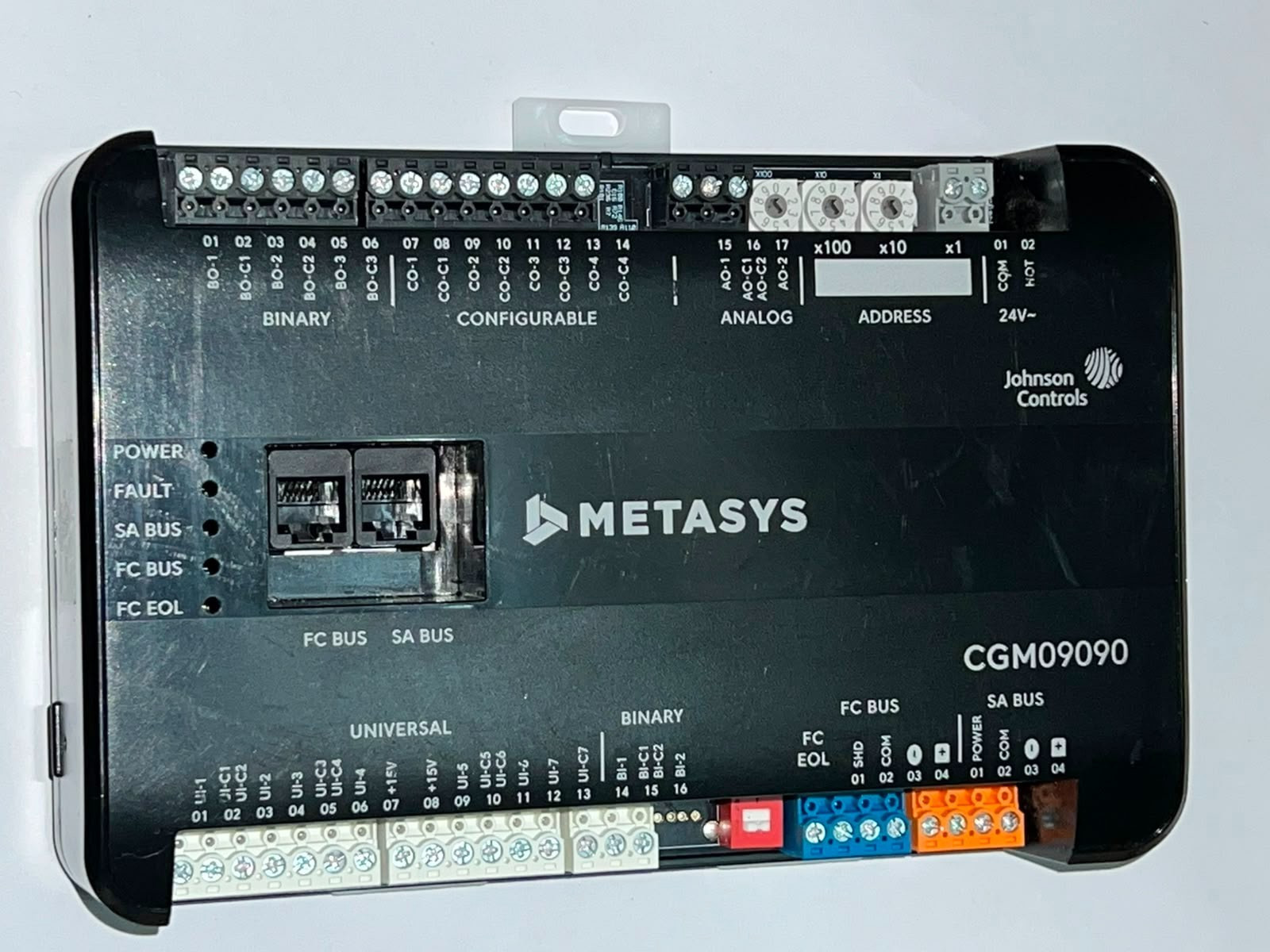

Johnson Controls M4-CGM09090-0 Metasys 18-Point General Purpose Controller:
$200.00

Johnson Controls M4-CGM09090-0 Metasys General Purpose Application Controller

Johnson Controls M4-CGM09090-0 Metasys General Purpose Application Controller.

The unit is new and has been tested for functionality. It has some minor cosmetic scratches from shelf/storage handling, but these do not affect its operation.

Technical Specifications

• Manufacturer: Johnson Controls
• Brand: Metasys / Johnson Controls
• Model: M4-CGM09090-0
• MPN: M4-CGM09090-0
• Product Type: General Purpose Application Controller
• Point Capacity: 18 points
• Universal Inputs (UI): 7
• Binary Inputs (BI): 2
• Configurable Outputs (CO): 4
• Analog Outputs (AO): 2
• Binary Outputs (BO): 3
• Input Power: 24 VAC
• Communication: BACnet MS/TP / N2
• Real-Time Clock: Integrated

Johnson Controls specifies the M4-CGM09090-0 for a wide range of facility and HVAC equipment applications, including fan coils, air handling units, packaged HVAC equipment and central plant equipment.

Condition

New – Other / New Old Stock

• New condition
• Tested and confirmed functional
• Minor shelf/storage scratches present
• Cosmetic marks do not affect functionality
• Please examine the photos carefully for the exact cosmetic condition

Package Includes

1 × Johnson Controls M4-CGM09090-0 Controller

Only the items shown in the listing photos are included.

Shipping

Fast and secure worldwide shipping available.

The controller will be professionally packed to help protect it during transportation.

Important

Please verify the exact part number M4-CGM09090-0 and technical requirements before purchasing to ensure compatibility with your application.

Item Specifics FieldValueBrandJohnson M4-CGTypeGeneral Purpose Application ControllerNumber of Points18Input Voltage24 VACCommunicationBACnet MS/TP / N2ConditionNew – OtherCountry/Region of ManufactureSee product label

---

---

---
