Kimllier 2 Inch Boring Head R8 1/2 Inch Shank Boring Bar Set 9Pcs Carbide Tip...:
$84.72

Brand New Kimllier 2 Inch Boring Head R8 1/2 Inch Shank Boring Bar Set 9Pcs Caroffere Tip...

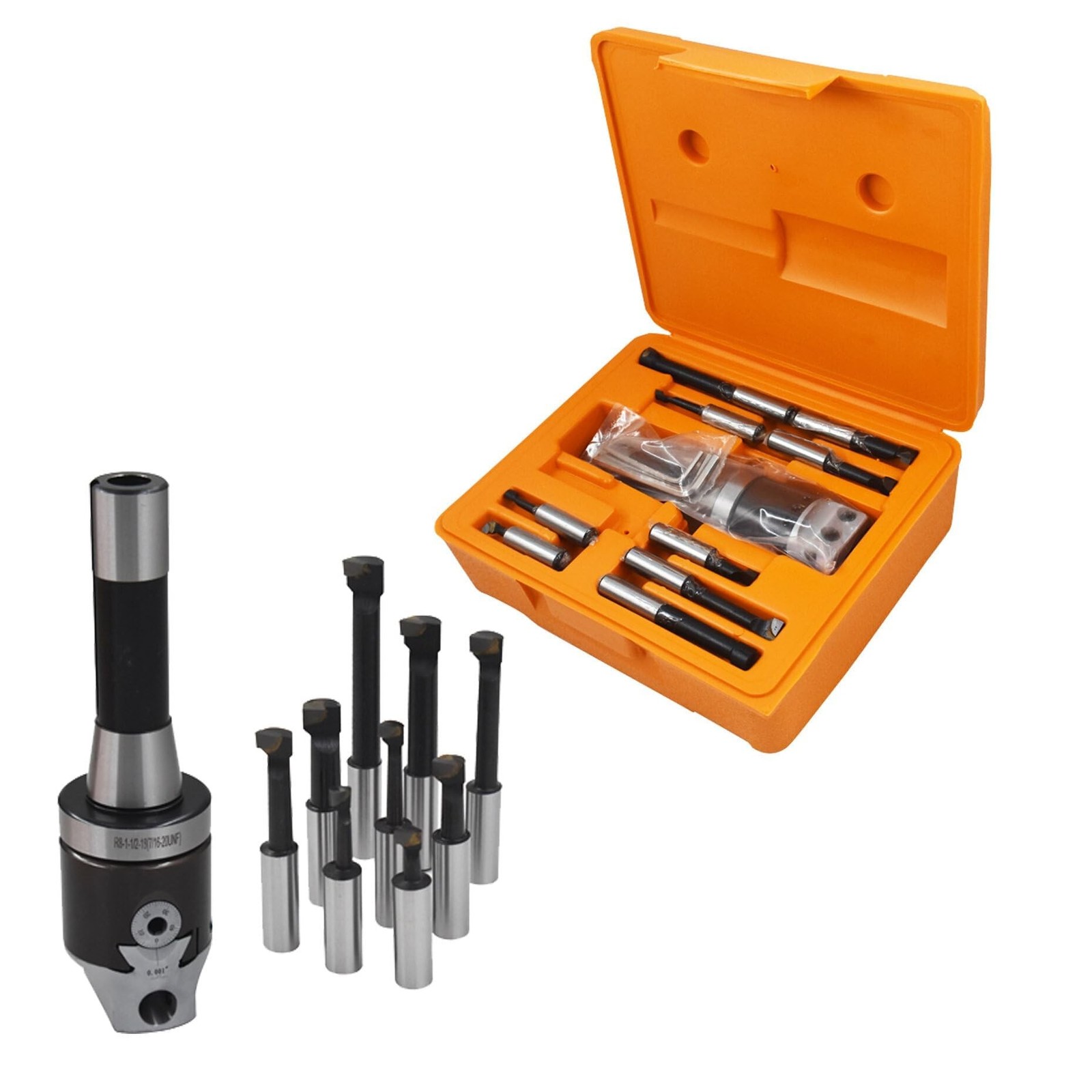

R8 shank boring head caroffere boring bar set include one 2 inch boring head and one R8 handle combo kit, 9pcs 1/2 inch boring bars and 3pcs hex wrenches.
1/2 British system boring head; boring head size: 2 inch; screw thread: 7/16-20UNF; connecting screw thread: 1-1/2-18.
Cross hole dia: 1/2 inch; maximum offset: 5/8 inch; min graduation: 0.001 inch.
Boring head caroffere boring bar set is made of special materials with high strength. After special treatment, its performance is stable.
Boring head CNC boring bar set are placed in a storage box, which is very convenient to store and carry, reducing the possibility of items lost.

Description

2 Inch Boring Head R8 Shank 9Pcs 1/2 Inch Shank Boring Bar Set Caroffere Tipped Bars Lathe Tool

Specification:
Boring Head Size: 2 inch
Screw Thread: 7/16-20UNF
Connecting Screw Thread: 1-1/2"-18
Cross Hole Dia: 1/2 inch
Maximum Offset: 5/8 inch
Min graduation: 0.001 inch
The specific dimensions of the 9 boring bars are as follows:
Minimum bore: 5/16 inch; overall length: 2-1/4 inch; bore depth: 3/4 inch
Minimum bore: 5/16 inch; overall length: 2-5/8 inch; bore depth: 1-1/8 inch
Minimum bore: 5/16 inch; overall length: 3 inch; bore depth: 1-1/2 inch
Minimum bore: 7/16 inch; overall length: 2-5/8 inch; bore depth: 1-1/8 inch
Minimum bore: 7/16 inch; overall length: 3-3/16 inch; bore depth: 1-11/16 inch
Minimum bore: 7/16 inch; overall length: 3-3/4 inch; bore depth: 2-1/4 inch
Minimum bore: 9/16 inch; overall length: 3 inch; bore depth: 1-1/2 inch
Minimum bore: 9/16 inch; overall length: 3-3/4 inch; bore depth: 2-1/4 inch
Minimum bore: 9/16 inch; overall length: 4-1/2 inch; bore depth: 3 inch

Features:
1. Boring head caroffere boring bar set is made of special materials with high strength. After special treatment, its performance is stable and wear-resistant and durable.
2. Boring head CNC boring bar set are placed in a storage box, which is very convenient to store and carry, reducing the possibility of items lost.

Package Includes:
1 x 2 inch boring head
1 x R8 handle
9 x 1/2 inch caroffere boring bars
3 x Allen key
