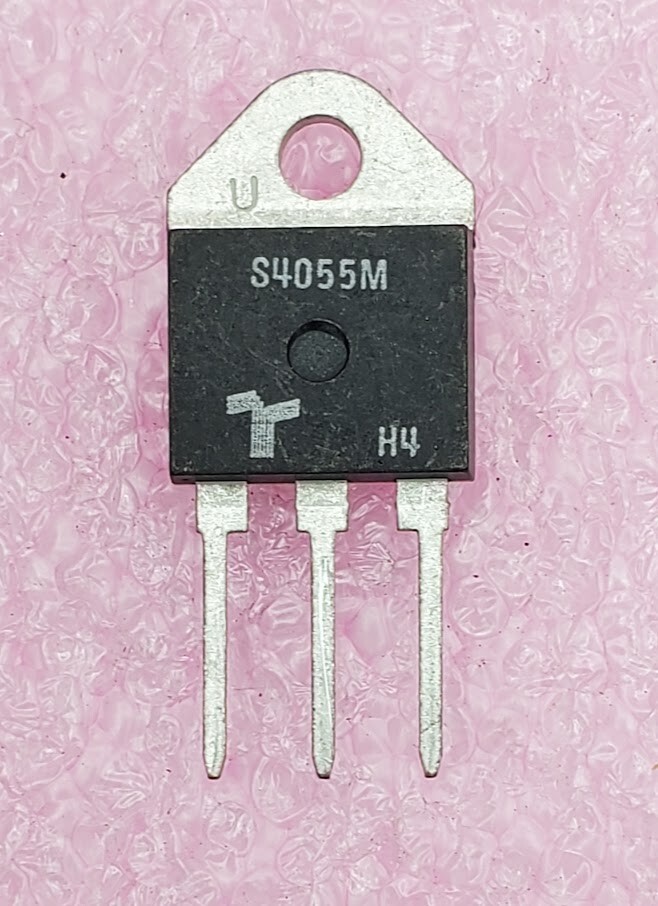

Lot of 2 - Littelfuse TECCOR - S4055M - SCR. 55Amp 400V, TO-218. Thyristor New For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Lot of 2 - Littelfuse TECCOR - S4055M - SCR. 55Amp 400V, TO-218. Thyristor New:
$16.98

Lot of 2 - LittelfuseTECCOR - S4055M - SCR, Silicon Controlled Rectifier.

Ratings: 55Amp400V.

Package:TO-218.

Series: Sxx55x

BreakoverCurrent IBO Max: 650 A

RatedRepetitive Off-State Voltage VDRM: 400 V

Off-StateLeakage Current @ VDRM IDRM: 10 uA

On-State RMSCurrent - It RMS: 55 A

Vf - ForwardVoltage: 1.8 V

Gate TriggerVoltage - Vgt: 1.5 V

Gate TriggerCurrent - Igt: 40 mA

MinimumOperating Temperature: - 40 C

MaximumOperating Temperature: + 125 C

Mounting Style:Through Hole

Package / Case:SMTO-218

Current Rating:35 A

Height: 12.62 mm

Holding CurrentIh Max: 60 mA

Length: 16 mm

Non RepetitiveOn-State Current: 650 A

Genuine Teccor- New Old Stock

Alternates:NTE5539, S4055W

Note: Discounts provided for lot purchases of 2, 3, or 4 with "Make Offer' option limited to bulk purchases.

---

---

---
