Megger / Programma TM 1800 Circuit Breaker Analyzer For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

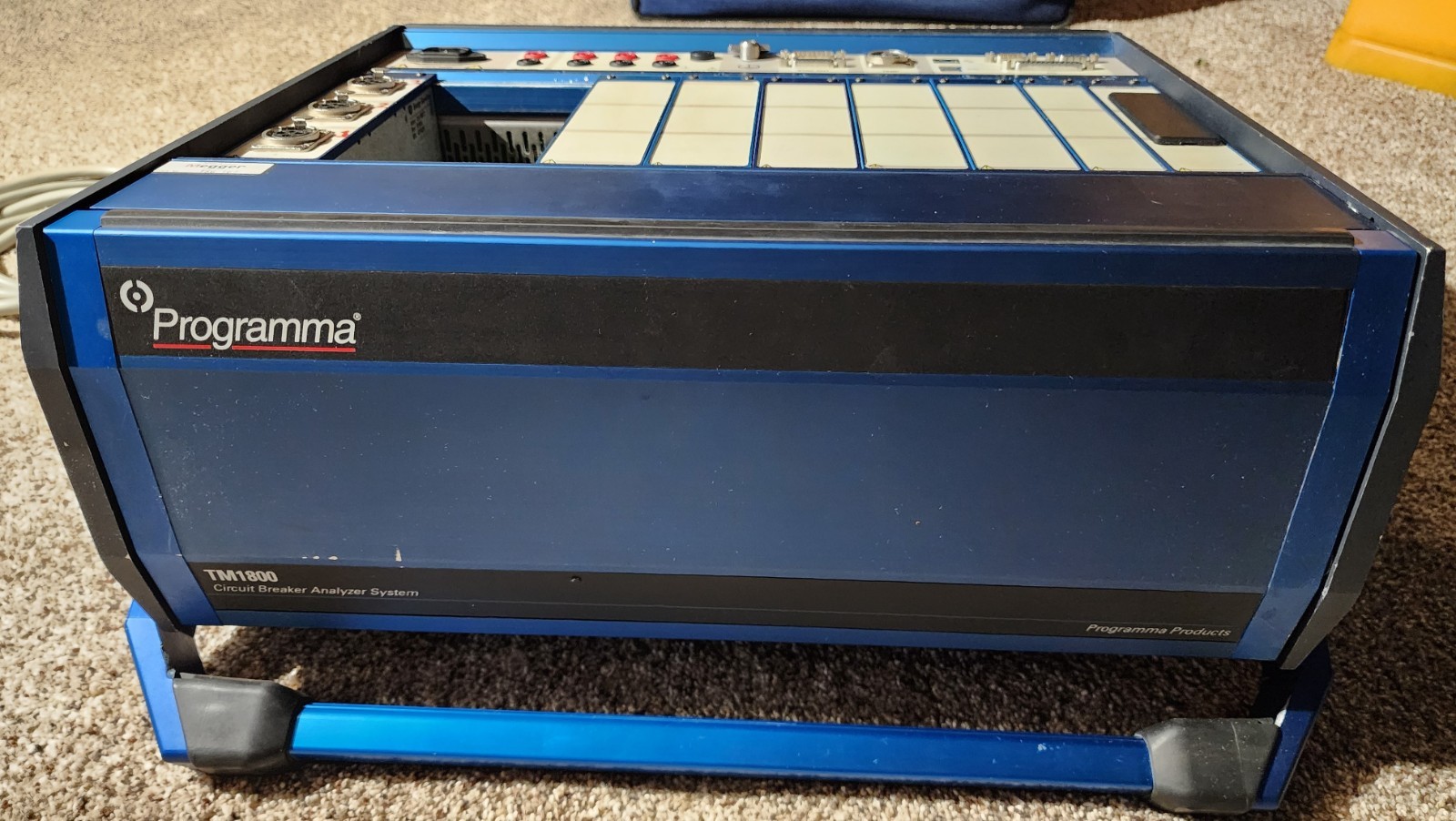

Megger / Programma TM 1800 Circuit Breaker Analyzer:
$1500.00

Test set is used, light surface scratches. Appears to be missing 2 modules, unsure if these are needed for operation. Includes ONLY what is seen in the photos, test set, power cord, and carry case, (no testleads or cables). Operating condition !!!UNKNOWN!!!

In line with the Megger product line tradition, the TM1800Circuit Breaker Analyzer System is portable and rugged, making it suitable foruse in any type of environment. The concept is a flexible, modular system thatcan be easily configured for any type of circuit breaker. Distribution circuitbreakers with one contact per phase and one operating mechanism can easily betested. Transmission circuit breakers often have a more complex design withseveral contacts per phase and separate operating mechanisms. Even here, TM1800is fully capable of capturing any parameter. For example, when testing circuitbreakers with pre-insertion resistor (PIR) contacts, the TM1800 automaticallymeasures timing of the main and PIR contacts, as well as the

resistance value of the pre-insertion resistor. TM1800 hasa straightforward and user-friendly interface, CABA Local. The display is an8-inch trans-reflective screen that enhances the use in direct sunlight. Theuser interface, CABA Local, has been designed

to facilitate setup and analysis. There are, for example,integrated help functions that guides the user throughout the testing.special efforts have also been made to reduce the number of connecting leadsrequired Furthermore, many functions have been automated to reduce the numberof manual exercises and circuit breaker operations required to perform a test.As a result, the training needed to use the TM1800 to its full extent isminimized and the time to carry out actual tests is minimal.

Integrated software support with predefined breaker templates and application oriented software for testing, assessment and archiving of results. Results in faster and easier breaker testing. Reduced need for operator training, shorter connection and testing time.

Stand-alone functionality reduces the number of items and boxes the tester needs to bring to the field.

Communication interface based on 10/100Mbit Ethernet standard makes the communication between TM1800 and PC very fast and reliable.

Fully modular concept gives user great flexibility. Allows for up to 48 + 48 timing channels.

USB interfaces enable easy backup and data storage for transport from one system to another by using memory sticks or portable CD/RW etc.

All parameters measured according to IEC 62271-100, IEC 60694 and IEEE C37.09.
