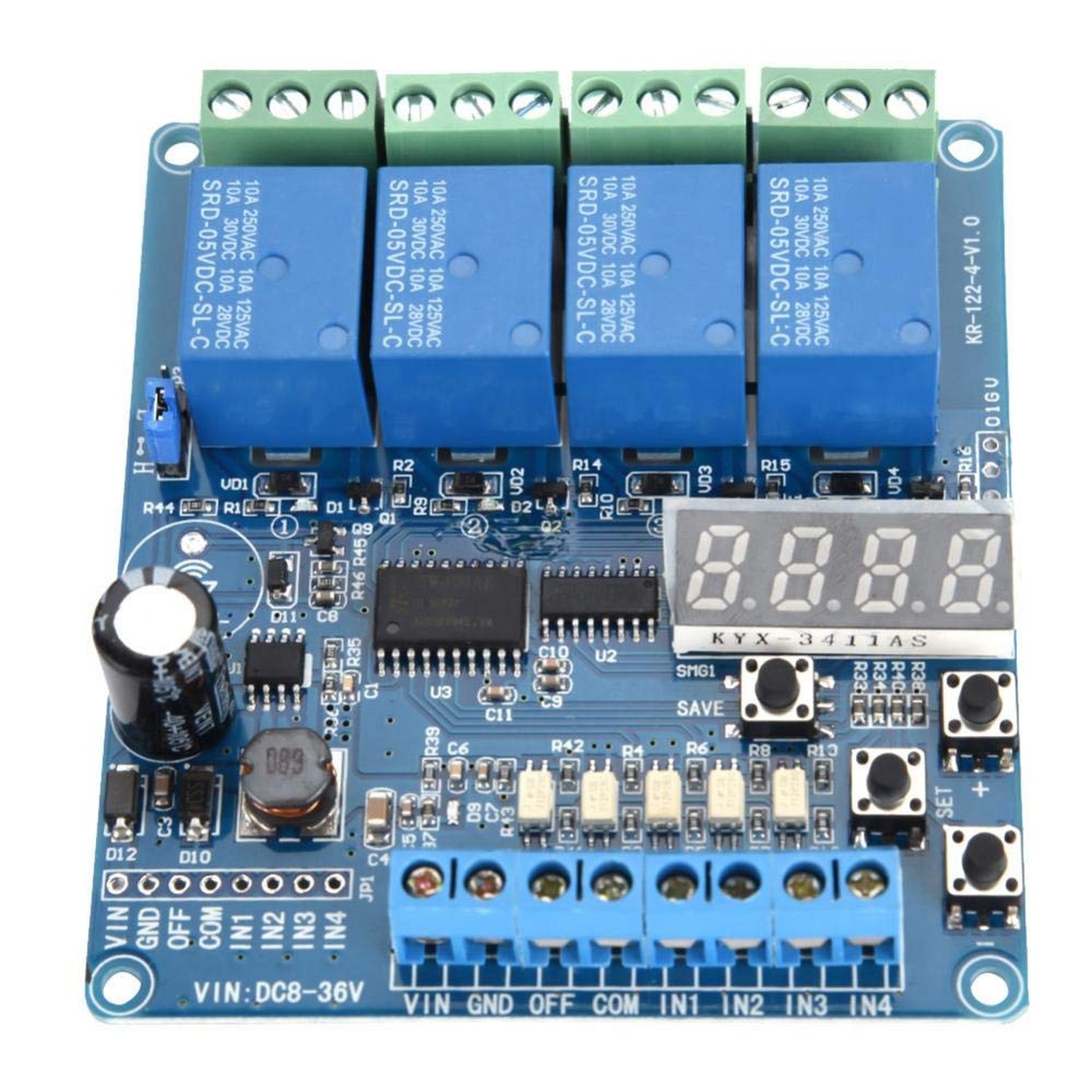

Multifunction Time Relay Module, 8-36V 4-Channel Multifunction Time Delay Rel...:
$50.99
Multifunction Time Relay Module, 8-36V 4-Channel Multifunction Time Delay Relay Interface Board Module Optocoupler LEDProduct Details
- Connector Type: Screw
- Contact Material: Silver
- Contact Type: Single-pole Double-throw (Spdt)
- Mounting Type: DIN Rail Mount
- Brand: Hilitand
- Connector Type: Screw
- Contact Type: Single-pole Double-throw (Spdt)
- Mounting Type: DIN Rail Mount
- Operation Mode: Automatic
- Coil Voltage: 36 volts
- Maximum Switching Voltage: 36 volts
- Minimum Switching Voltage: 8 volts_of_direct_current
- Contact Material: Silver
- Brand Name: Hilitand
- UPC: 791380154628 792117099540
- Number of Packs: 1
- Unit Count: 1 Count
- Number of Items: 1
- Manufacturer: Hilitand
- Model: Hilitandut7beoy6g1
- Part Number: Hilitandut7beoy6g1
- VERY POWERFUL FUNCTIONTime delay relay with 4 channels of input and output control, each channel can be set to 20 kinds of functions to meet more application requirements
- NOT EASY TO DAMAGEDC 8v-36v wide voltage input, with the function of power anti-reverse connection, will not damage the module due to wrong power connection
- WITH INDICATOR LIGHTThe timer relay with power indicator light and relay suction indicator light
- HIGH PRECISIONAt least 1 second timing function can be set, accurate timing, error less than 1%
- NEW ENERGY SAVING FUNCTIONAdd automatic power saving function
