NEW QTY 149 Murata Power Solutions Inc. NTE0505MC DC DC CONVERTER 5V 1W For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

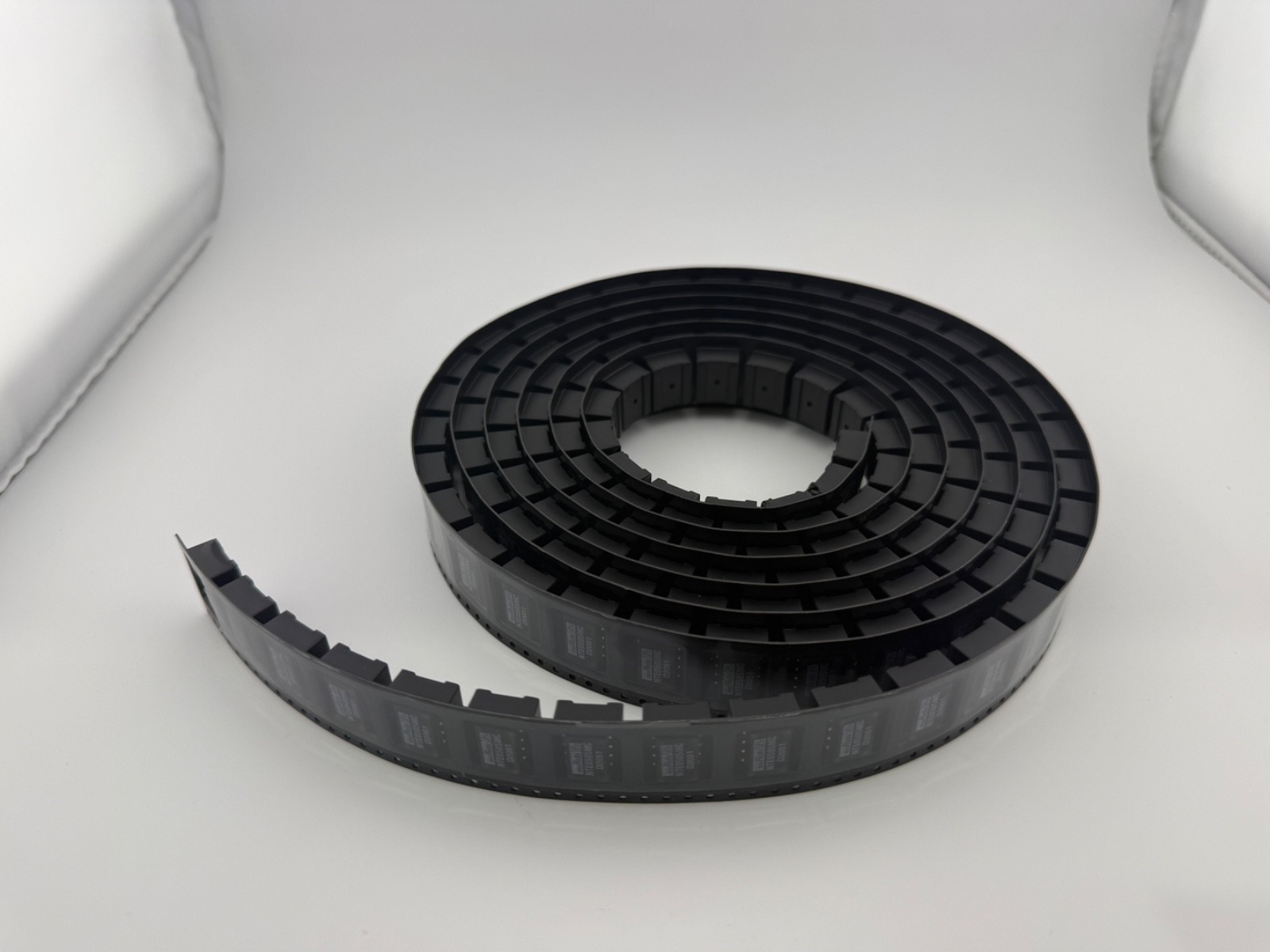

NEW QTY 149 Murata Power Solutions Inc. NTE0505MC DC DC CONVERTER 5V 1W:
$599.00

QTY 149
Murata Power Solutions Inc. NTE0505MC DC DC CONVERTER 5V 1WIsolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input

PRODUCT OVERVIEW:

The NTE series of miniature surface mounted

DC-DC Converters employ leadframe technol-

ogy and transfer moulding techniques to bring

all of the benefits of IC style packaging to hybrid

circuitry. The co-planarity of the pin positions is

based upon IEC 191-6:1990. The devices are

suitable for all applications where high volume

production is envisaged.

View below PDF for more 111

---

---

---
