New Deep Sea Electronics DSE7310 MKII Generator Auto Start Controller US For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

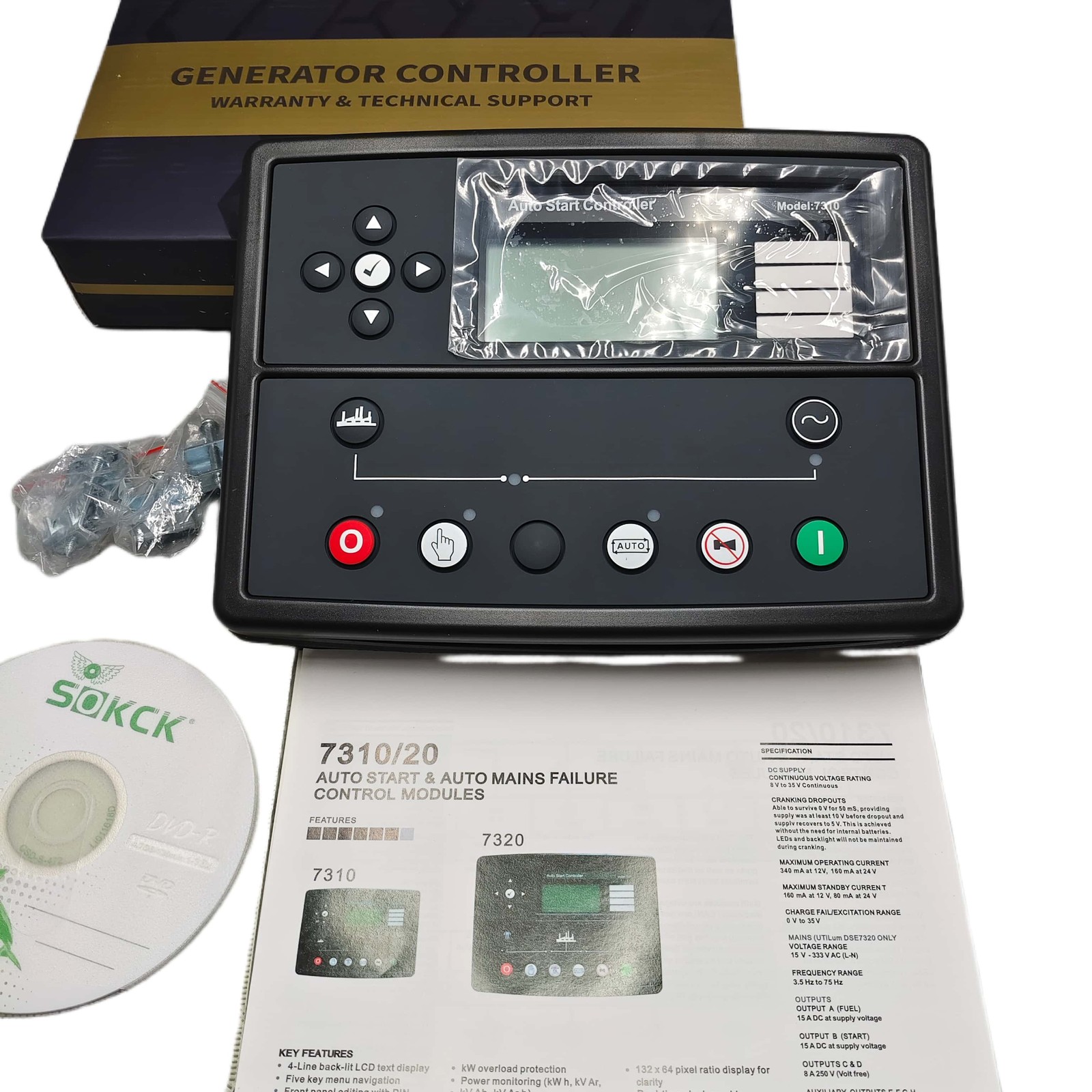

New Deep Sea Electronics DSE7310 MKII Generator Auto Start Controller US:
$189.59

The DSE7310 MKII is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications. Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device). OVERALL SIZE245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")PANEL CUTOUT SIZE220 mm x 160 mm (8.7" x 6.3")MAXIMUM PANEL THICKNESS8.0 mm (0.3") DC SUPPLYCONTINUOUS VOLTAGE RATING8 V to 35 V Continuous5 V for up to 1 minuteCRANKING DROPOUTSAble to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.MAXIMUM OPERATING CURRENT510 mA at 12 V, 240 mA at 24 VMAXIMUM STANDBY CURRENT330 mA at 12 V, 160 mA at 24 VCHARGE FAIL/EXCITATION RANGE0 V to 35 VGENERATOR & MAINS (UTILITY)VOLTAGE RANGE15 V to 415 V AC (Ph to N)25 V to 719 V AC (Ph to Ph)FREQUENCY RANGE3.5 Hz to 75 HzMAGNETIC PICK UPVOLTAGE RANGE+/- 0.5 V to 70 VFREQUENCY RANGE10,000 Hz (max)

On Sep 21, 2026 at 00:34:04 PDT, seller added the following information:
