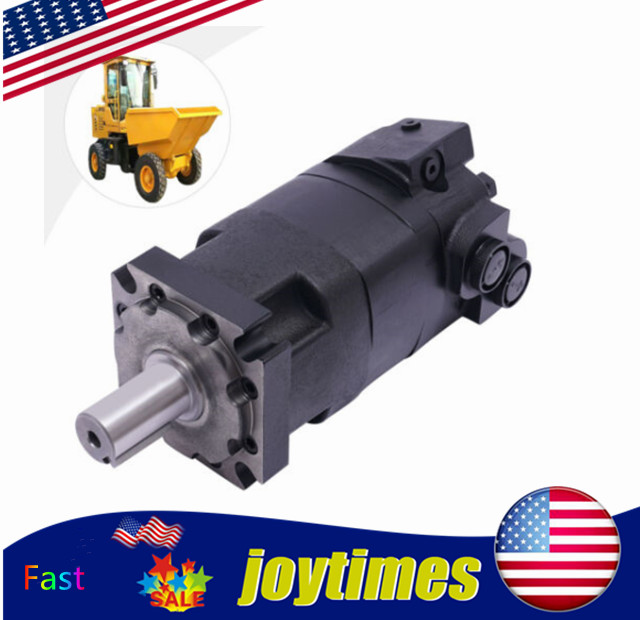

New Hydraulic Motor 109-1106-006 For Eaton Char-Lynn 4000 Series Device Replace For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

New Hydraulic Motor 109-1106-006 For Eaton Char-Lynn 4000 Series Device Replace:
$276.35

Specification Style: ModernModel: 109-1106-006Displacement: 395cm3/r/24.0in3/rMaterial: Cast Iron, RubberSurface Treatment: Painting and QuenchingColor: BlackNumber of Items: 1Assembly Required: YesMount Type: Mechanical EquipmentPort Size: 1 1/16-12inch 0-ring StaggeredNet Weight: 19.3kg/42.55lbsGross Weight: 21kg/46.3lbsPackage Size: 37*20*18cm/14.57*7.87*7.09inchOverall Size: Included1* Hydraulic Motor

New Hydraulic Motor 109-1106-006 For Eaton Char-Lynn 4000 Series Device to our store~

Description

Our hydraulic motor is made of high-quality cast iron, and rubber, and adopts painting and quenching processes, laying the foundation for your long-term use. High accuracy and good performance can provide you with more convenience. With it, you will have a good helper.

Key Features

Build to Last:Cast iron, rubber, quenching, and painting processes make the whole product corrosion-resistant, wear-resistant,heat-resistant, and not easy to rust, so it can keep beautiful and practical for a long time.

High Accuracy:The combination of the oil distribution plate, stator and rotor pairs, and output shaft ensures the high accuracy of the product and provides more convenience for your use.

Good Sealing Performance:The rubber sealing ring can effectively prevent oil leakage, not only ensuring a smooth use process but also saving you cost.

Careful Design: The high-quality bearings make the product have a strong radial force and high-pressure resistance, so you can use it safely.

Powerful Function:As an executive component of the hydraulic system, the motor can effectively convert the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft, thus providing sufficient energy.

Simple Installation and Use:Simple structure and quick start design ensure that you can complete the installation and start using it in a short time. The motor can be used in series or in parallel, with high-cost performance.

Ideal Gift:With good performance, this product can be used as a gift for family, friends, and loversto make their work easier.

EffortlessCleaning: The smooth surface and simple structureallow you to easily remove dust and residues with a towel and water.

Details

Round Corners:Compared with traditional square corners, an arc design can better care for your skin.

Anti-slipBase:The base with four support legs can effectively maintain stability during the process.

Application

This item has a wide range of applications, such as industrial, logistics, agricultural, refitting, and other scenarios.

Pressure Bar(PSI)

250

500

750

1000

1250

1500

105

1750

120

2000

140

2250

155

2500

170

2750

190

3000

205

3250

225

3500

240

0.5

1.9

700(Torque)1340

80(Nm)150

4(Speed)2

3.8

99888777542

7.5

3838373636353534343332

57575655545352504947

95190290385480575665750845

767675747372706866

90190290385480575670760855

959594939291898684

85190285380480575665755

114114113112111110108105

85185280380480575665750

133133132131130129127124

80185280380480575660

153153152151149147145

75180275375475570655

172172171170168166164

70180270375475570656

192191190189187185183

65170265365470565650

211210209208206204201

55155255350460560645

239238237236235233230

114

10801650227030203850

120185255340435

285284282281279

132

1520212028703760

170240325425

331330328325

151

205027903620

230315410

376374371

Specification

Style: Modern

Model: 109-1106-006

Displacement: 395cm3/r/24.0in3/r

Material: Cast Iron, Rubber

Surface Treatment: Painting and Quenching

Color: Black

Number of Items: 1

Assembly Required: Yes

Mount Type: Mechanical Equipment

Port Size: 1 1/16-12inch 0-ring Staggered

Net Weight: 19.3kg/42.55lbs

Gross Weight: 21kg/46.3lbs

Package Size: 37*20*18cm/14.57*7.87*7.09inch

Overall Size: 12.9*13.6*31.9cm/5.1*5.4*12.6inch

Package Included

1*Hydraulic Motor

Notes

1. We recommend that the normal operating oil temperature is 20~60℃/68-140℉, and the maximum system operating temperature is 90℃/194℉ (not more than one hour). The kinematic viscosity of the oil at 40°C/104℉ is 42-74mm2/s. The hydraulic oil can be selected according to the actual working and ambient temperature.

2. We recommend that the filter precision be 10-30 microns. It is better to add a magnetic block at the bottom of the oil tank to prevent metal chips from entering the system. The solid pollution level of working oil shall not be higher than 19/16.

3. The motor can be used in series or parallel. When the back pressure exceeds 10MPA (the rotating speed is lower than 200RPM), the external drain port must be used for pressure relief. It is better to connect the external drain port directly to the oil tank.

4. In order to make the motor have a long service life, the best working condition of the motor should be 1/3-2/3 of the rated working condition. When loading the motor, it should be operated at 30% of the rated pressure for about 1 hour. In any case, before loading the motor, ensure that the motor is filled with oil.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
