New Ingersoll FAK-0809084R01 SpotIn Indexable Spot Drill 90° 3/4” 3207688 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

New Ingersoll FAK-0809084R01 SpotIn Indexable Spot Drill 90° 3/4” 3207688:
$259.00

New Ingersoll FAK-0809084R01 SpotIn indexable spotting drill in original case as pictured.

Specs:

* Brand: Ingersoll

* Series: SpotIn / FAK

* Part Number: FAK-0809084R01 / FAK08184R01

* EDP: 3207688

* Tool Type: Indexable Spotting Drill / Chamfer Spot Drill

* Included Angle: 90°

* Maximum Spot Diameter: 0.842” / 21.39 mm

* Maximum Depth of Cut: 0.390” / 9.91 mm

* Overall Length: 3.50” / 88.9 mm

* Projection from Holder: 1.50” / 38.1 mm

* Body Diameter: 0.810” / 20.57 mm

* Shank Size: 0.750” / 19.05 mm

* Shank Style: Weldon

* Insert Compatibility: TFLT15T303N / TFLT15T308N

* Screw: SM30-065-00

* Torx Size: T9

* Made in USA

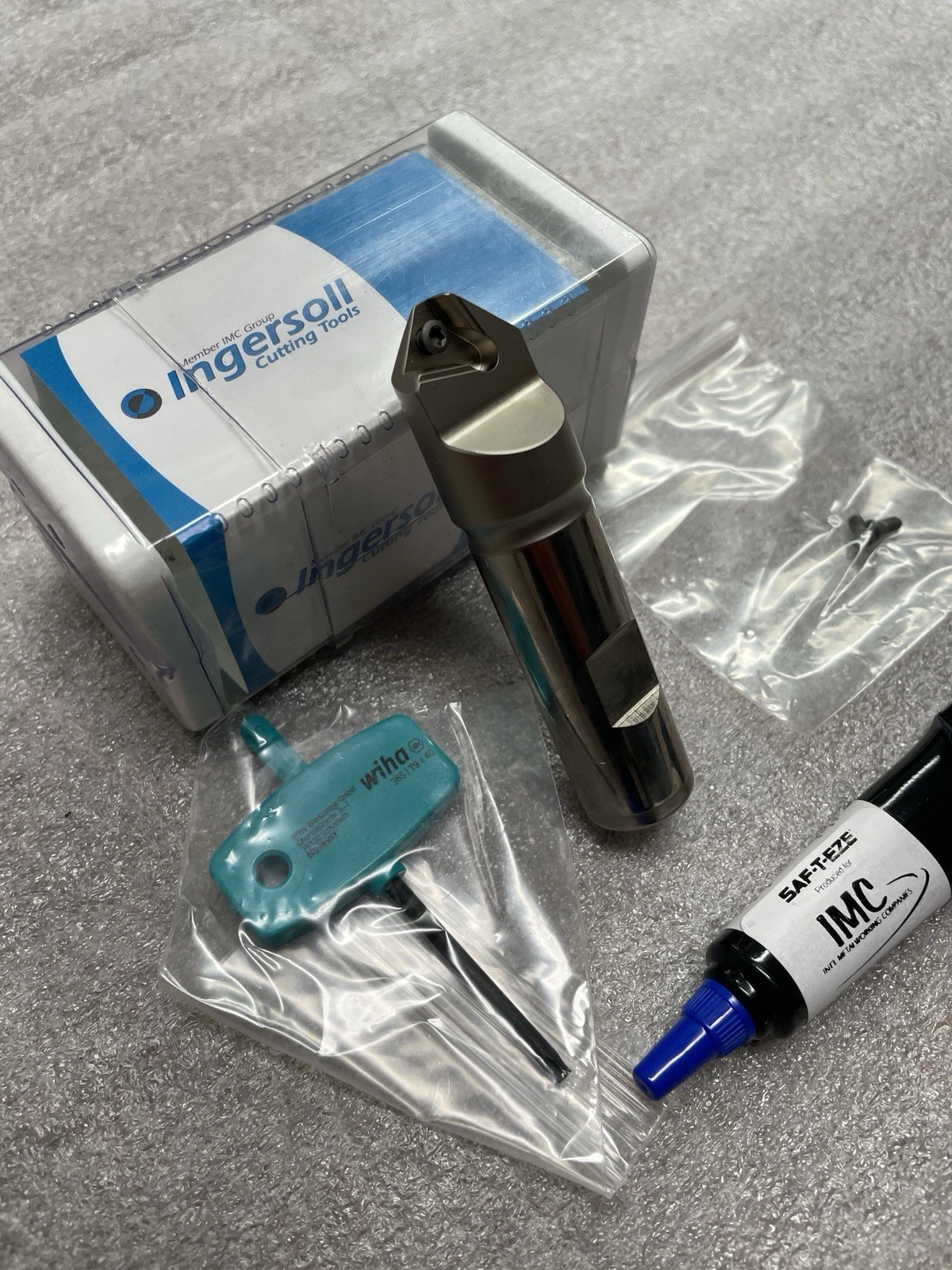

Includes tool, original case, wrench, screws, and IMC Saf-T-Eze tube as pictured. Insert condition/accessory contents shown in photos. Free shipping included
