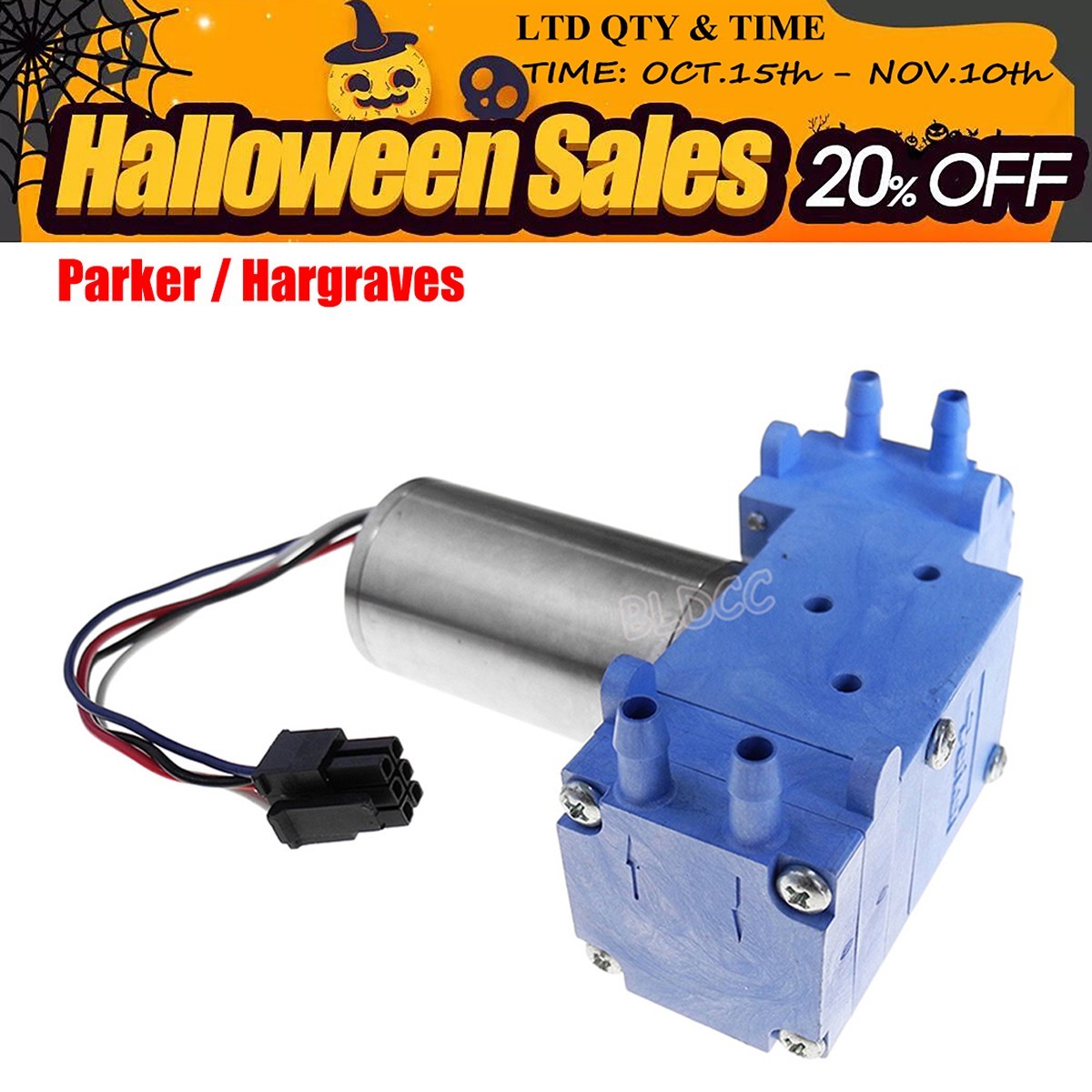

Parker / Hargraves BLDC 12VDC Miniature Vacuum Diaphragm Pump Dual Head Air Pump:
$26.99

Parker / Hargraves BLDC 12VDC Miniature Vacuum Diaphragm Pump Dual Head Air PumpProduct DescriptionParker / Hargraves BLDC 12VDC Miniature Vacuum Diaphragm Pump Dual Head Air Pump
Introduction:
BTC-IIS Miniature Diaphragm Pumps are brushless DC motor driven pumps which are tailored to meet the specific application performance requirements. The innovative compact designs incorporate leading edge technologies that allow them to operate more efficiently than existing pump designs. BTC-IIS Pumps offer multiple component configurations allowing them to be used for either vacuum, pressure, or alternating vacuum and pressure operations. BTC-IIS is ideal for compact, high flow, wide pressure ranges, long-life, low noise applications.Attention: This vacuum pump is used and may have signs of previous use on its exterior. However, this does not affect its functionality. We thoroughly test each unit, but please be cautious if you have any concerns before purchasing.Specification:
Brand: Parker/HargravesRated voltage: DC 12VVoltage Range: DC 8~15VRated Current: 450mA (DC 12V)Current Range: 200~1400mAHead Configuration: Dual Maximum Unrestricted Flow: 6 LPM (Series), 11 LPM (Parallel)Pressure Range: 0 - 28 psig (0 - 1.93 bar) (Parallel)，0 - 48 psig (0 - 3.31 bar) (Series).Vacuum Range: 0 - 20 in Hg (580 mm Hg) (Parallel)，0 - 25 in Hg (635 mm Hg) (Series).Media: Air, Argon, Helium, Nitrogen, Oxygen, and other non-reacting gasesOperating Environment: 41 to 122°F (5 to 50°C)Noise Level: As low as 45 dB @ 12 in (30 cm)Pump Assembly Rated Life3: ≥10,000 hrsNet Weight: 250gPackage Weight: 300g
Warning:The brushless motor's positive and negative terminals must not be reversed; incorrect connections can damage the driver!Wiring Definition:
Red wire: Positive terminal of the power supply.Black wire: Negative terminal of the power supply.White wire: PWM speed control wire (can be left unconnected if speed control is not needed).Blue wire: Speed signal wire (can be left unconnected if not needed).If PWM speed control is required:
Recommended PWM frequency: 15 - 25 KHz，Recommended PWM Duty range: 10 - 100%.Package Included:
1PCS DC 12V Vacuum Pump
Note: If you need large quantity, we can provide wholesale for you with the best price, just contact us freely via Message.
