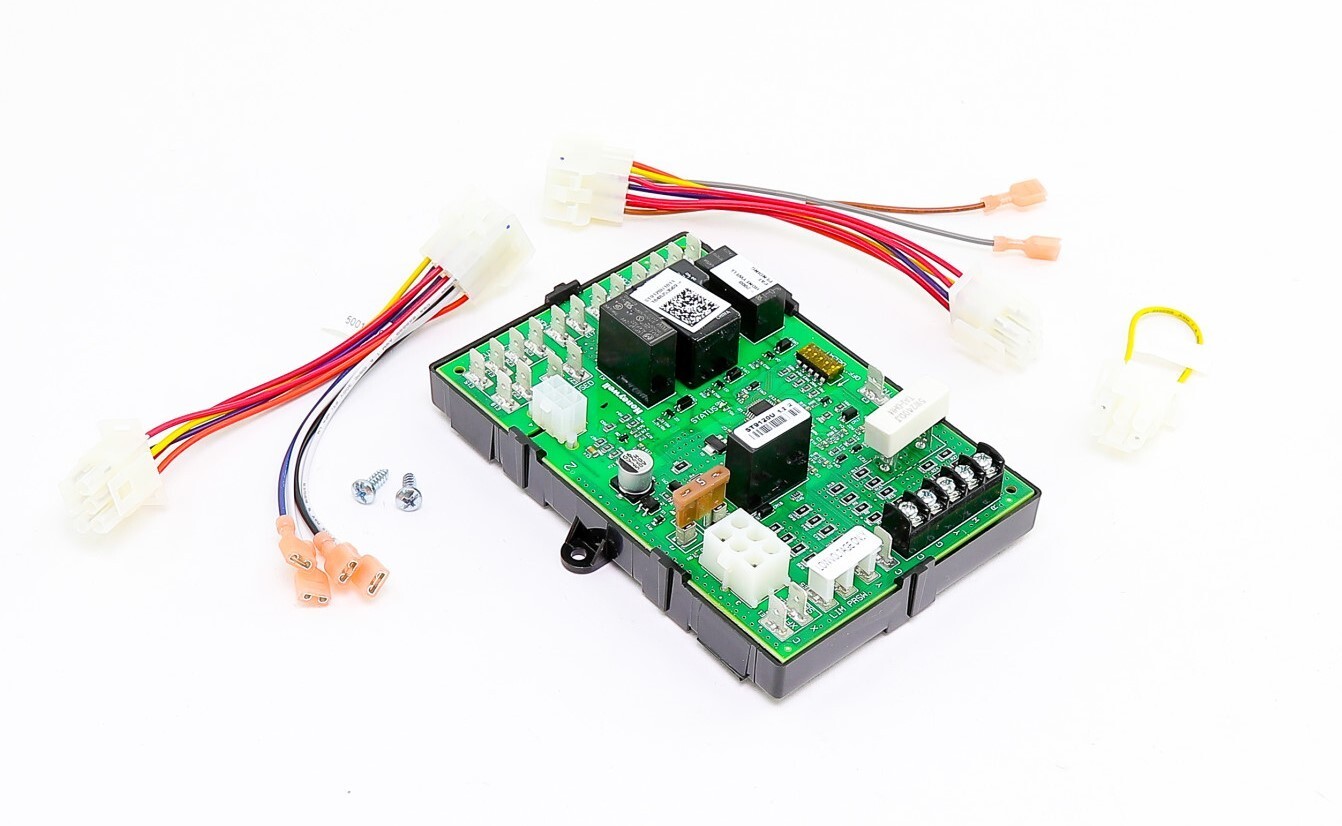

ST9120U1011 HONEYWELL Universal Timer ST9141A1002 - ST9120C4057 - ST9141B1001:
$245.99
- Furnace Electronic Fan Timer
- Type Combustion Control
- Voltage Rating 18 to 30 Volt AC at 50/60 Hertz
- Operating Temperature -40 to 175 Deg F
- Application Gas Furnace
- Approval CSA, UL
- ON Delay Time 30/60 Second (Adjustable/Heat Fan), 4/30 Second (Adjustable/Cool Fan)
- OFF Delay Time 60/120/150/180 Second (Adjustable/Heat Fan), 30/60 Second (Adjustable/Cool Fan)
- Replaces 40+ Existing Honeywell Electronic Fan Timer
- Interface Harnesses for Simple Conversion
- Integrates Control of All Combustion Blower and Circulating Fan Operations in Gas Warm Air Appliance
- Dip Switch Selectable Heat and Cool Delay on and Off Times
- LED Lights for Easy Diagnostics
- Electronic Air Cleaner and Humidifier Terminal Connections
- Continuous Low Speed Indoor Air Circulation
Honeywell ST9120U1011 Universal Fan Timer Control Board ST9120U used #D455
$39.90
NEW ST9120U1011 HONEYWELL/RESIDEO Timer - ST9120U1003 -ST9141A1028 -ST9101A1022
$89.99
ST9120U1011 Honeywell Universal Fan Timer Control Board ST9120U 1011
$99.99
